LCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 Luminance
| Size |
1.8 inch |
| Resolution |
128(RGB)X160 |
| Interface |
MCU |
| Luminance |
500cd/m2 |
| Driving IC |
ST7735P3-G5 |
| Operating temperature |
-20℃~70℃ |
| Storage temperature |
-30℃~80℃ |
| Outline Dimension |
164.9*100*4.6(W x H x D) (mm) |

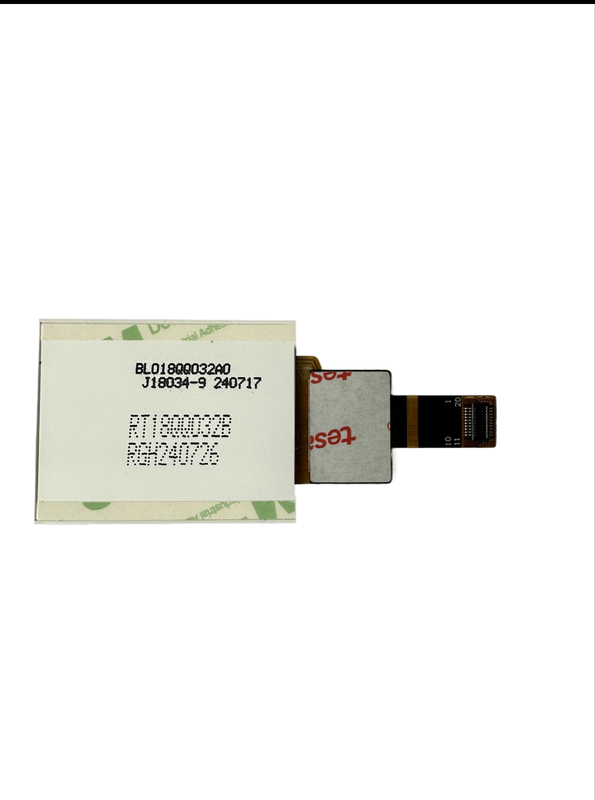

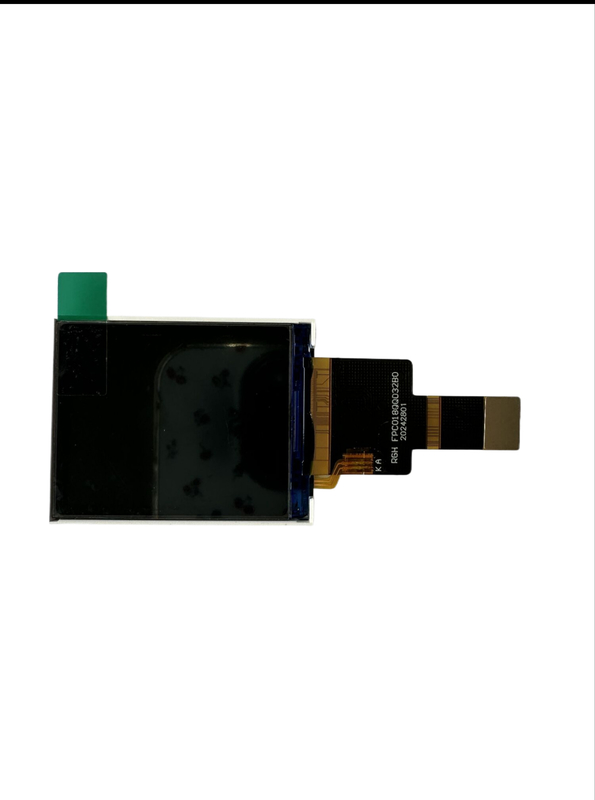

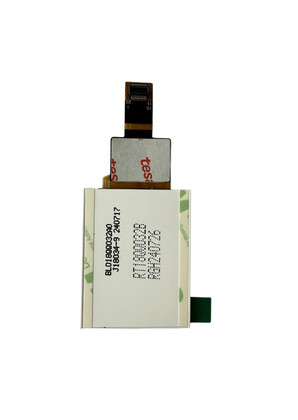

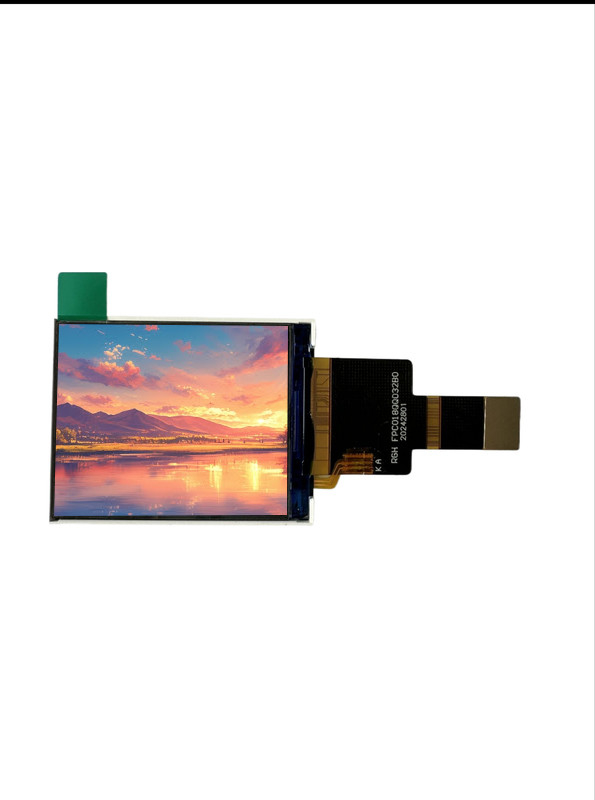

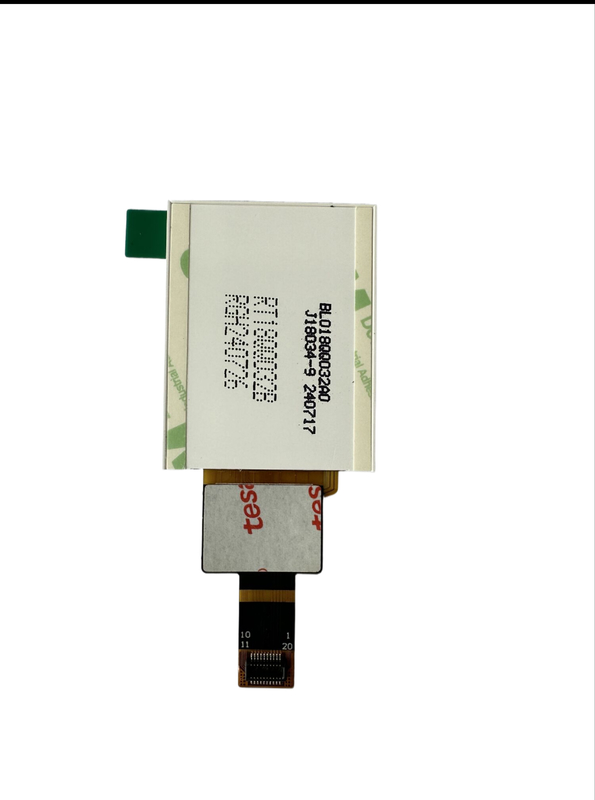

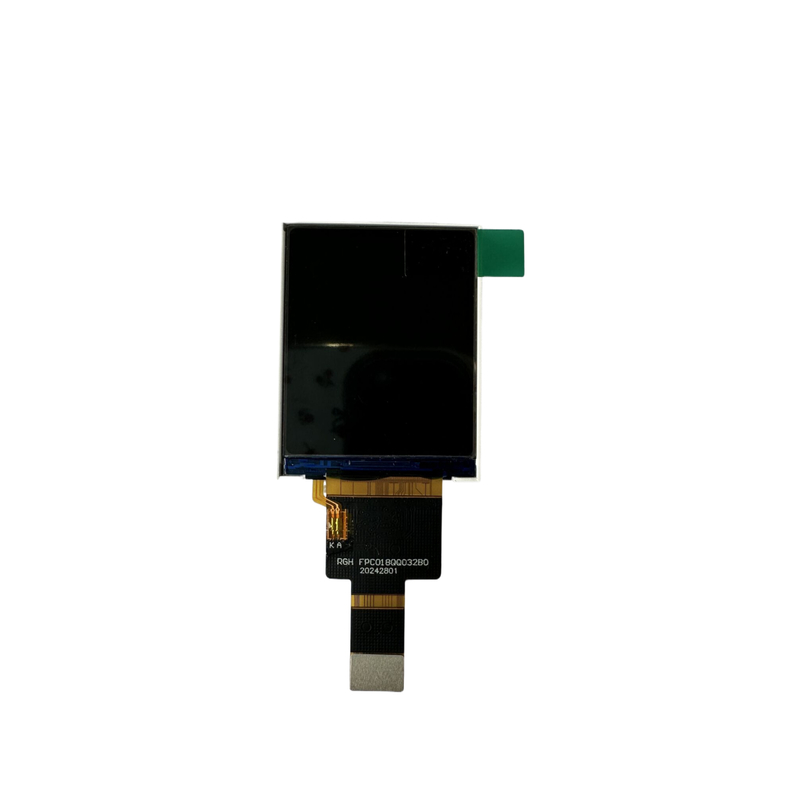

The 1.8-inch TFT LCD module is a compact and efficient display solution designed for integration into handheld devices, consumer electronics, and industrial control systems. With a resolution of 128(RGB)×160 pixels and powered by the ST7735P3-G5 driver IC, it delivers clear, vibrant visuals in a small footprint. The module offers a luminance of 500 cd/m², a contrast ratio of 300:1, and a response time of 35 ms—providing good readability and performance for low-power, space-constrained applications.
Featuring an MCU interface, the display supports easy integration with microcontroller-based systems. The active area measures 28.03mm × 35.04mm within a total outline dimension of 33.60mm × 42.70mm × 2.60mm, offering a generous viewing area relative to its size. It operates reliably within a wide temperature range of -20°C to 70°C, and supports storage from -30°C to 80°C, ensuring consistent performance across a range of environments.
Note: A second outline dimension listed as 164.9 × 100 × 4.6 mm may refer to a different housing or mounting configuration and should be clarified depending on the application.
|
NO.
|
Symbol
|
Level
|
Function
|
| 1 |
LEDK
|
|
LED cathode
|
| 2 |
LEDA
|
|
LED anode
|
| 3 |
GND
|
|
Ground
|
| 4 |
VDD
|
|
Power setting
|
| 5-6 |
NC
|
|
NC
|
| 7 |
/CS
|
|
-Chip selection pin
|
| 8 |
RST
|
|
This signal will reset the device and it must be applied to
properly
|
| 9 |
RS
|
|
-Display data/command selection pin in parallel interface
|
| 10 |
/WR
|
|
-Write enable in MCU parallel interface
|
| 11 |
/RD
|
|
Read enable in 8080 MCU parallel interface
|
| 12-19 |
D7-D0
|
|
data bus.
|
| 20 |
GND
|
|
Ground
|
