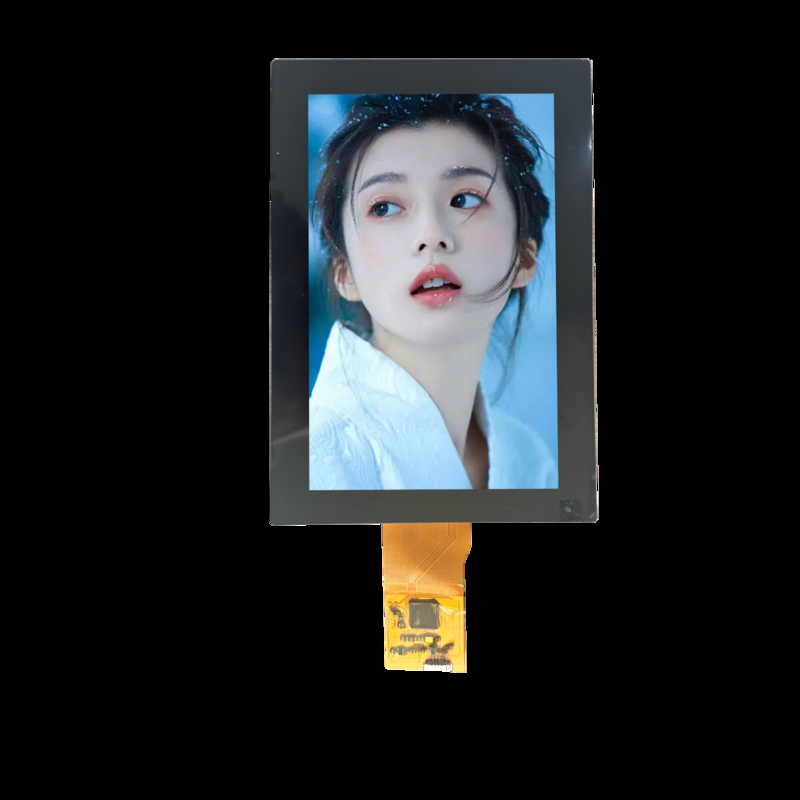

Name: 7.0 Inch 1200×1920 MIPI TFT LCD Display Module With Hard Coating
Brand: Rongguang Hui Optoelectronics Science and Technology
SKU: RT70FHD003A
Availability: InStock

Home > products > TFT LCD Display >

7.0 Inch 1200×1920 MIPI TFT LCD Display Module With Hard Coating

Place of Origin:

Shenzhen,China

Brand Name:

RGH

Certification:

ISO9001/ISO14001

Model Number:

RT70FHD003A

Document:

Product Brochure PDF

Request A Quote

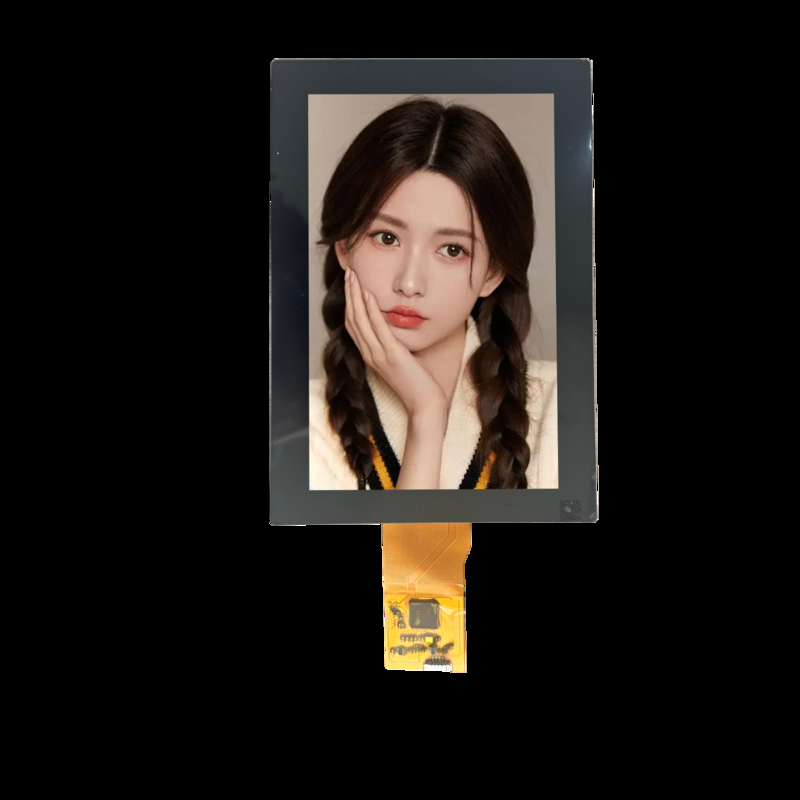

7.0 Inch 1200×1920 MIPI TFT LCD Display Module With Hard Coating

Product Details

Size:

7.0inch

Display Resolution:

1200*3(RGB)*1920

LCD Mode:

A-Si TFT/transmissive

Outline Dimension:

111.0(H) *166.0(V) *3.29(T) Mm

Active Area:

94.5*(H) * 151.2(V) Mm

Pixel Arrangement:

RGB-stripe

Viewing Direction:

80/80/80/80

Display Mode:

Normally Black

IC Package Type:

COG

Surface Treatment:

Hard Coating

Interface:

MIPI

Response Time:

30ms

Payment & Shipping Terms

Minimum Order Quantity

3PICS

Price

negotiable

Packaging Details

standard package

Delivery Time

3-5weeks

Payment Terms

L/C, T/T

Supply Ability

3.5KK

Compact 3.0 Inch TFT LCD Screen with High-Resolution Display

Get Best Price

Video

TFT LCD Display 3.2 Inch Interface MCU ILI9327 262k ODM

Get Best Price

Video

LCD Display TFT 1.8 Inch ISO9001 128x160 ST7735P3 MCU Interface 500cd/M2 Luminance

Get Best Price

Video

TFT LCD Display 2.0 Inch MCU Interface 450cd/M2 ILI9342C LED Backlight

Get Best Price

86--075523210048

Contact Now

Product Description

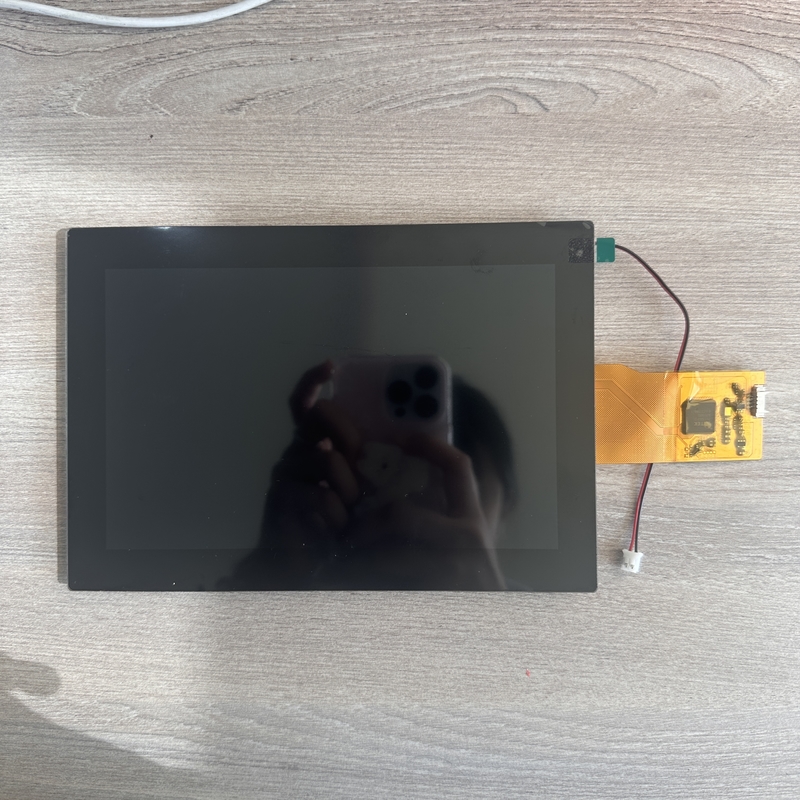

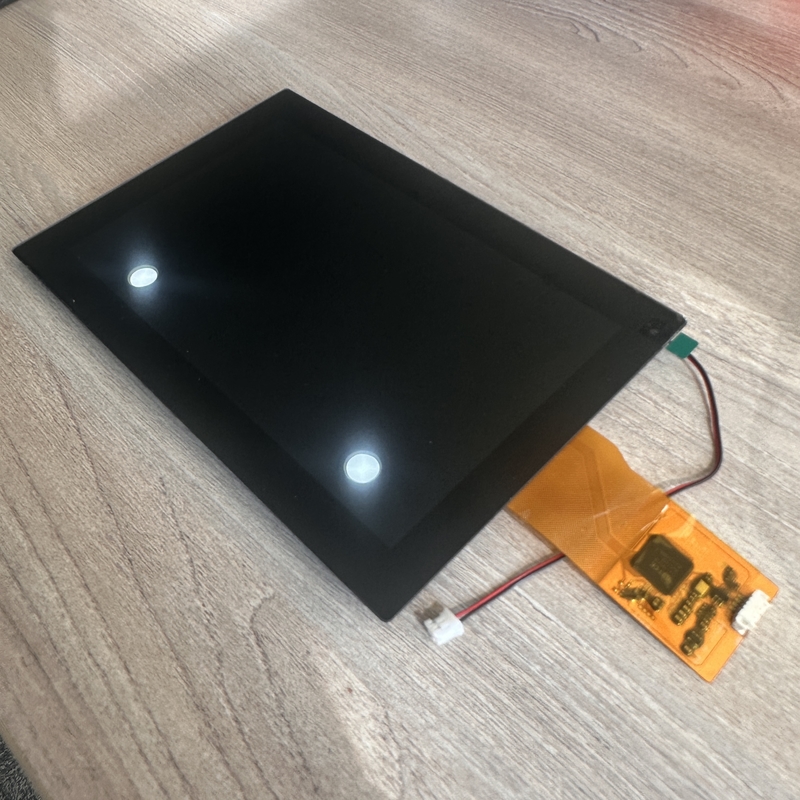

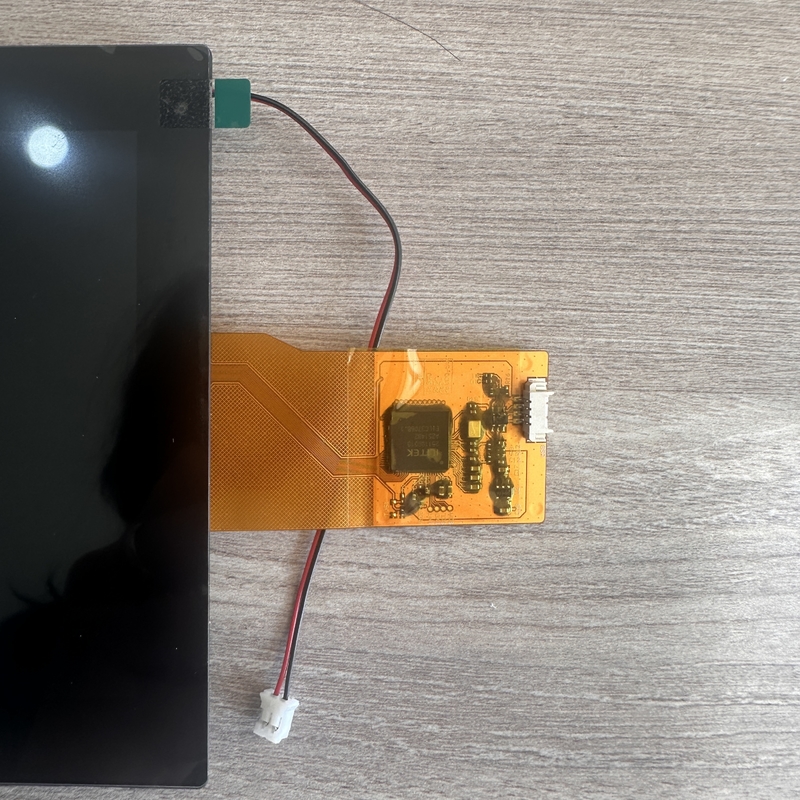

7.0 Inch 1200×1920 MIPI TFT LCD Display Module With Hard Coating 0

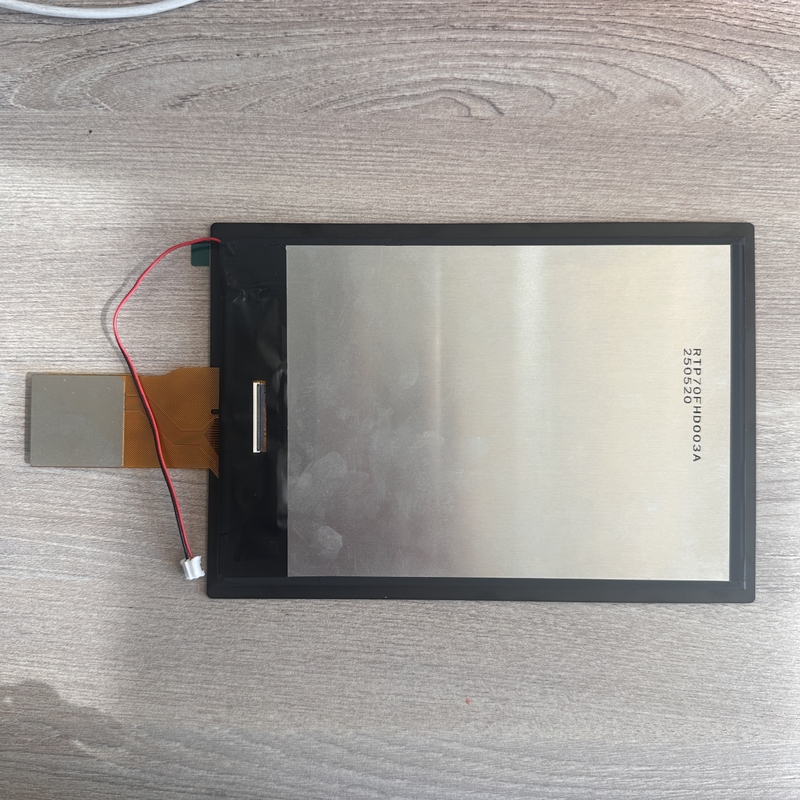

7.0 Inch 1200×1920 MIPI TFT LCD Display Module With Hard Coating 7

3.Interface Description
PIN	PIN NAME	DESCRIPTION	Remark
1	NC	No connection
23	IOVCC	PowerSupply 1.8V
4	GND	Ground
5	RST	RESET PIN
6	NC	No connection
7	GND	Ground
8	DON	MIPI Differential Data Input
9	DOP	+MIPI Differential Data Input
10	GND	Ground
11	DIN	MIPI Diferential Data Input
12	DIP	+MIPI Differential Data Input
13	GND	Ground
14	CLKP	MIPI Diferential Data Input
15	CLKN	+MIPI Differential Data Input
16	GND	Ground
17	D2N	MIPI Diferential Clock Input
18	D2P	+MIPI Differential Clock Input
19	GND	Ground
20	D3N	MIPI Diferential Data Input
21	D3P	+MIPI Differential Data Input
22	GND	Ground
23	NC	No connection
24	NC	No connection
25	GND	Ground
26	NC/TE	Svnc signal for touch panel.Float it if not used
27	NC/PWMO	PWM control signal for LED driver
28	NC/BIST	Enable the Test Image Generation function,fconnect to ground.Float it if not used.
29	NC	No connection
30	GND	Ground
3,132	LED-	BacklightLED-
33	NC	No connection
3,435	VSN	Analog supply negative voltage VSN=-5.8V
36	NC	No connection
3,738	VSP	Analog supply negative woltage VSP=5.8V
39.40	LED+	Backlight LED+
