Place of Origin:
Shenzhern,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:
RT35HV028A
Document:

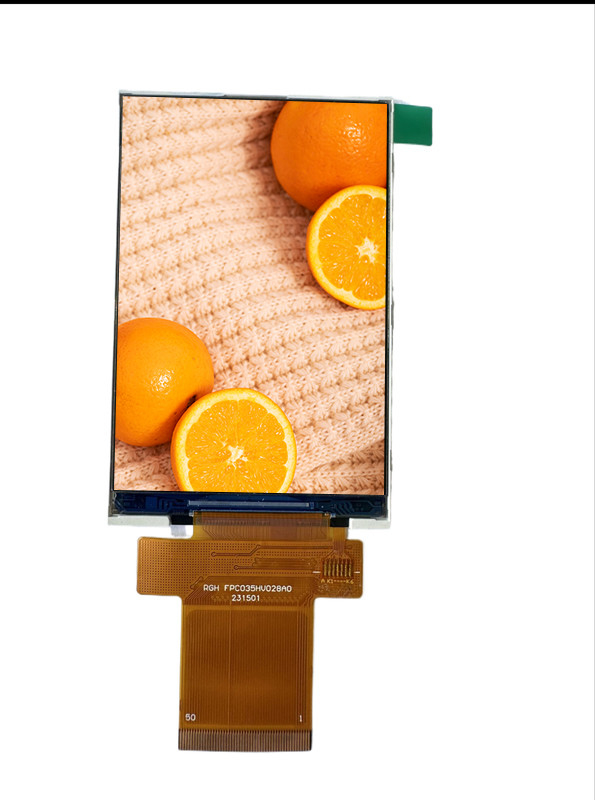

TFT LCD Display Industrial Digital HD screen 3.5 Inch 320x480 Customized
| Size | 3.5 inch |
| Resolution | 320(RGB)X 480 |
| Brightness | 250 cd/m² |
| Viewing Angle | 6:00 o’clock |
| Driving IC | ILI9488 |
| Dimensions | 66.90(H) X90.80(V) X3.98(T) mm |
| Touchscreen | NO |
| Backlight | LED |
| NO. | Symbol | Level | Function |
| 1 | GND | GND | |
| 2-3 | IOvCC | 1.8V-2.8V | |
| 4-5 | VCC | 2.8V | |
| 6 | IM0 | Interface selection | |
| 7 | IM1 | Interface selection | |
| 8 | IM2 | Interface selection | |
| 9 | RESET | restoration | |
| 10 | VSYNC | field sync signal | |
| 11 | HSYNC | sync signal | |
| 12 | PCLK | clock | |
| 13 | DE | DEmodel | |
| 14-31 | DB17-DB0 | USB cable | |
| 32 | GND | GND | |
| 33 | DOUT | ||
| 34 | SDA | SPI | |
| 35 | RD | read signal | |
| 36 | WR | write signal | |
| 37 | RS | Command and data selection | |
| 38 | CS | Chip Selection | |
| 39 | MIPI CLKP | MIPI clock | |
| 40 | MIPI CLKN | MIPI clock | |
| 41 | MIPI D0P | MIPI | |
| 42 | MIPI D0N | MIPI | |
| 43 | LEDA | LED+ | |
| 44-49 | LEDK1-LEDK6 | LED- | |
| 50 | GND | GND |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
