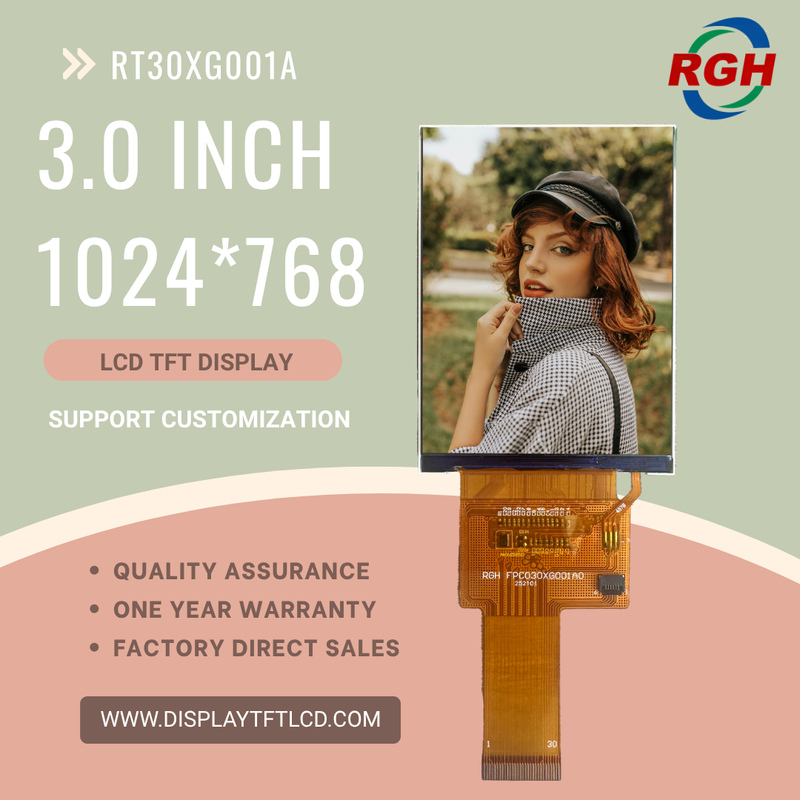

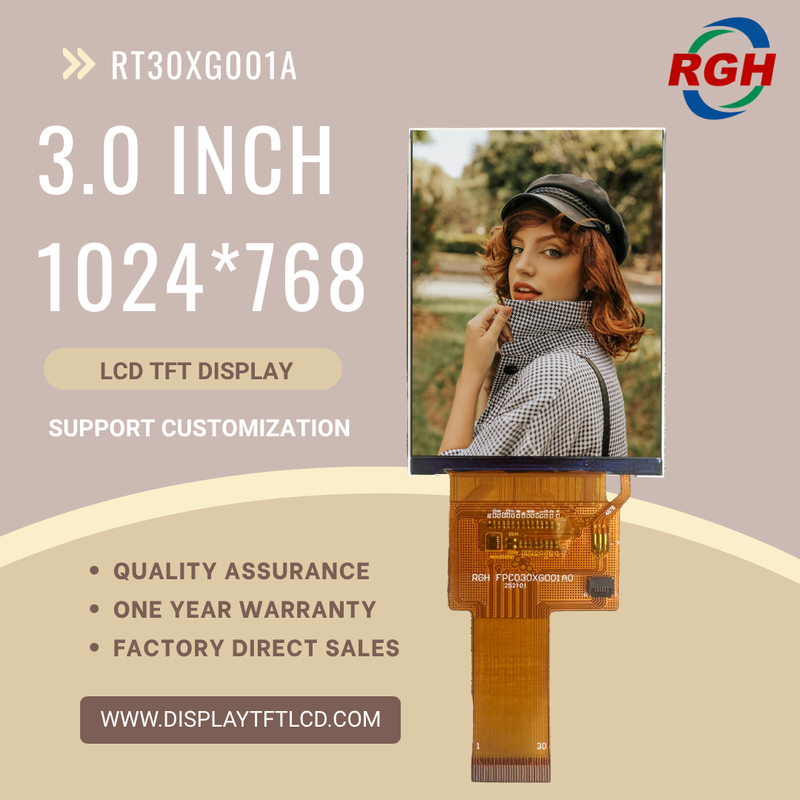

Compact 3.0 Inch TFT LCD Screen with High-Resolution Display

Product Features

• 3.0-inch TFT LCD with resolution 1024(RGB) × 768 for high-definition image display.
• Compact module dimensions 68.50(H) × 50.28(V) × 2.0(T) mm with active area 60.21(H) × 45.16(V) mm.
• High brightness 520 cd/m² for excellent visibility in bright environments.
• MIPI interface with 30-pin connection for high-speed data transmission.
• Wide viewing angles (All o’clock) for consistent image quality from any direction.
• Fast response time 30 ms for smooth visuals.
• Driven by EK79210AF IC for stable and efficient performance.
• Wide operating temperature range -20°C to +70°C, storage temperature -30°C to +80°C for versatile applications.

Applications

1. Portable industrial instruments.
2. Medical handheld devices.
3. Smart home controllers.
4. Test and measurement equipment.
5. Communication equipment.
6. Compact embedded systems.

​
