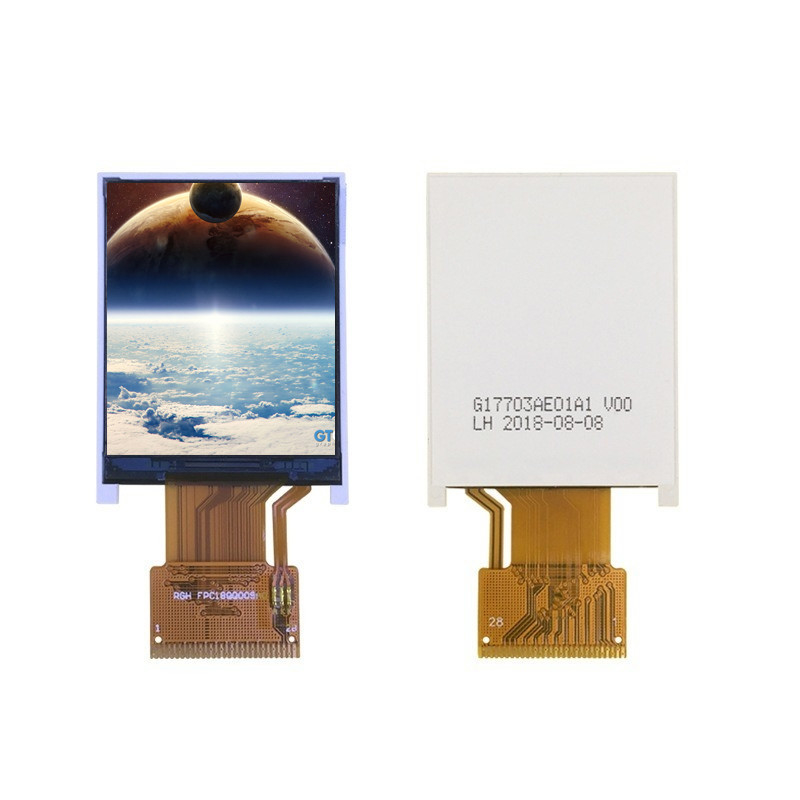

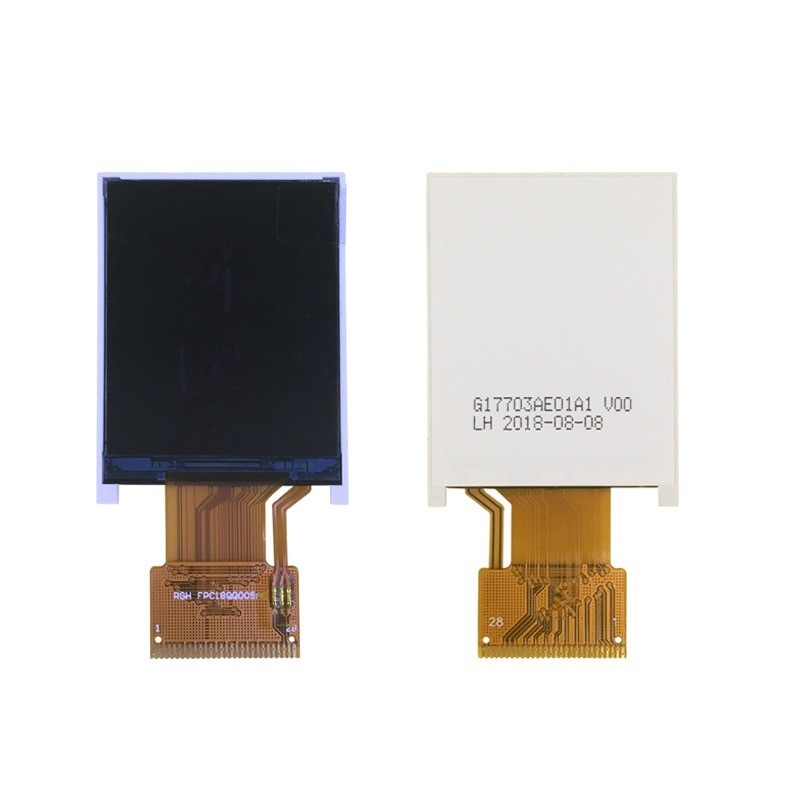

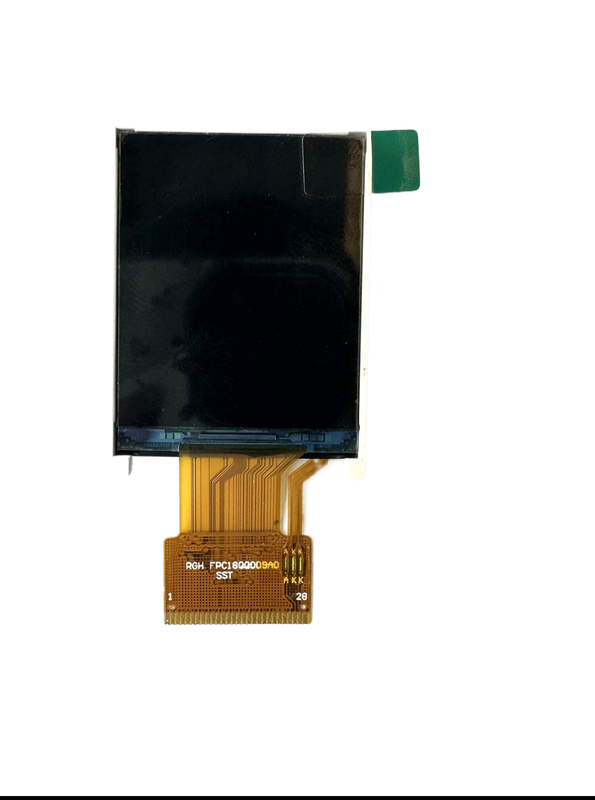

Place of Origin:
Shenzhern,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001

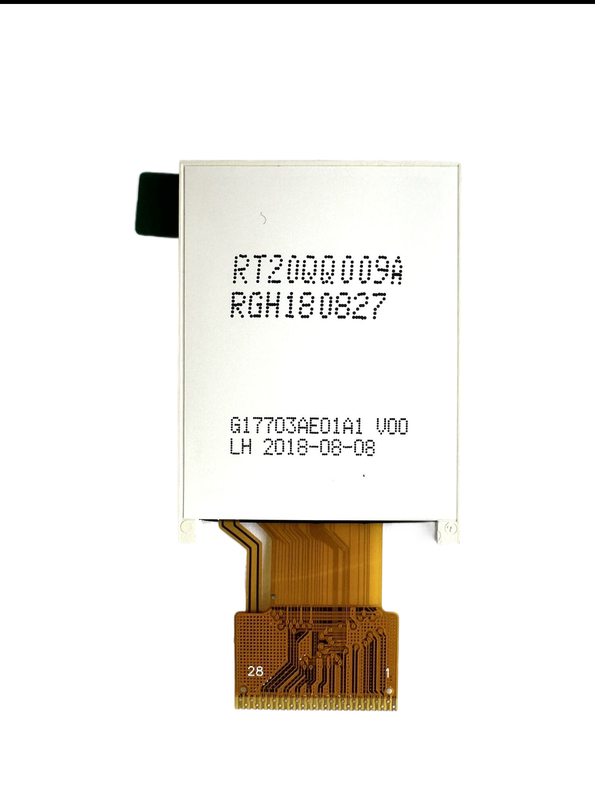

Model Number:
RT18QQ009A
Document:
| NO. | Symbol | Level | Function |
| 1 | GND | Ground | |
| 2 | TE | TE | |
| 3 | GND | Ground | |
| 4 | DB7 | data bus | |
| 5 | CS | -Chip Selection Pin -Low Enable. |
|
| 6 | DB6 | D[15:0]are used as MCU parallel interface data bus. | |
| 7 | GND | Ground | |
| 8 | DB5 | D[15:0]are used as MCU parallel interface data bus. | |
| 9 | GND | Ground | |
| 10 | DB4 | D[15:0]are used as MCU parallel interface data bus. | |
| 11 | GND | Ground | |
| 12 | DB3 | D[15:0]are used as MCU parallel interface data bus. | |
| 13 | GND | Ground | |
| 14 | DB2 | D[15:0]are used as MCU parallel interface data bus. | |
| 15 | GND | Ground | |
| 16 | DB1 | D[15:0]are used as MCU parallel interface data bus. | |
| 17 | GND | Ground | |
| 18 | DB0 | D[15:0]are used as MCU parallel interface data bus. | |
| 19 | GND | Ground | |
| 20 | WR | -Write Enable in MCU Parallel Interface. | |
| 21 | GND | Ground | |
| 22 | RS | -Display datalcommand Selection Pin in MCU Interface. -D/CX='1':Display Data or Parameter. -D/CX='o³:Command Data. |
|
| 23 | RESET | -This signalwill reset the device and it must be applied to properly initialize the chip. -Signal is active low. |
|
| 24 | VDD | Power Supply for Analog,Digital System and Booster Circuit. |
|
| 25 | GND | Ground | |
| 26 | LEDA | LEDA | |
| 27 | LEDK | LEDK | |
| 28 | GND | Ground |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
