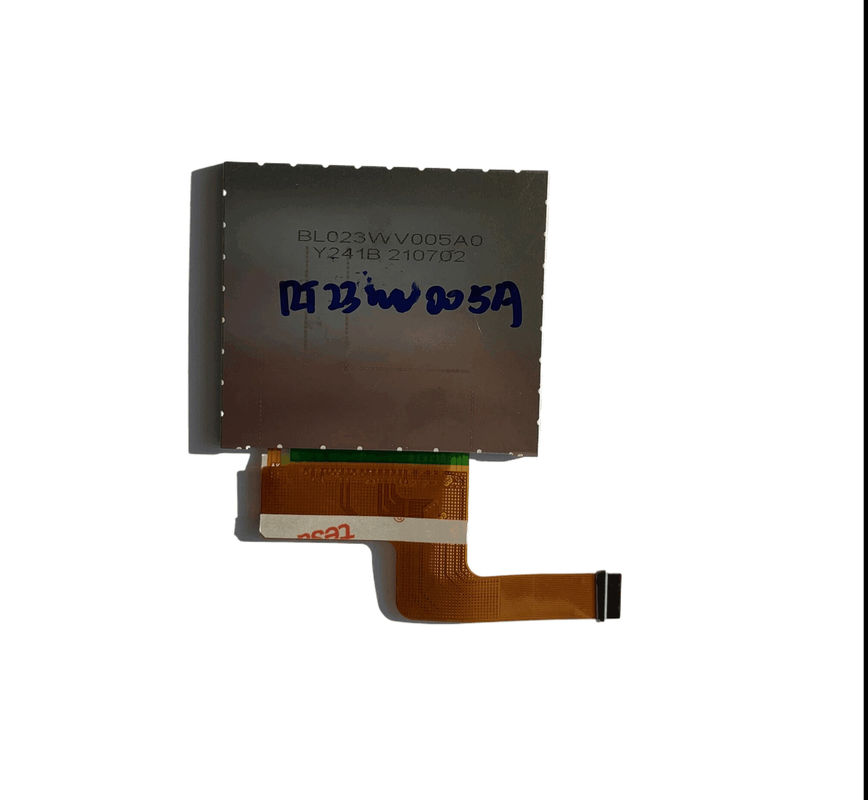

RT23WV005A
Document:
| Item | Specification |
|---|---|
|
Size |
2.3inch |
|
Display mode |
Transmissive TFT
|
|
Part NO. |
RT23WV005A
|
|
Resolution |
480*320 |
|
Outline size |
50.90 (W) X45.80(H) X2.3(T)
|
|
Active area |
46.80(W) X35.10 (H)
|
|
View direction |
ALL o’clock
|
|
Piexl pitch |
480(RGB)X360
|
|
Interface |
MIPI |
|
Backlight |
4LEDS |
|
Surface luminance |
450cd/m2 |
|
Logic voltage |
2.5V-3.3V |
|
Operating temperature |
-20℃~70℃
|
|
Storage temperature |
-30℃~80℃
|
| NO. | Symbol | Level | Function |
| 1 | GND | Ground | |
| 2 | IOvCC | 1.8V | Power setting |
| 3 | GND | Ground | |
| 4 | GND | Ground | |
| 5 | LEDK | LED power cathode | |
| 6 | LEDA | LED power anode | |
| 7 | GND | Ground | |
| 8 | GND | Ground | |
| 9 | GND | Ground | |
| 10 | GND | Ground | |
| 11 | GND | Ground | |
| 12 | GND | Ground | |
| 13 | D1N | MIPI Data pin Positive | |
| 14 | D1P | MIPI Data pin Positive | |
| 15 | D0N | MIPI Data pin Positive | |
| 16 | D0P | MIPI Data pin Positive | |
| 17 | CKN | Mipiclock signal | |
| 18 | CKP | Mipi clock signal | |
| 19 | GND | Ground | |
| 20 | RESET | RESET PIN | |
| 21 | TE | TE | |
| 22 | GND | Ground | |
| 23 | VCC | 2.8V | Power setting |
| 24 | VCC | 2.8V | Power setting |
| 25 | GND | Ground |
|
|
