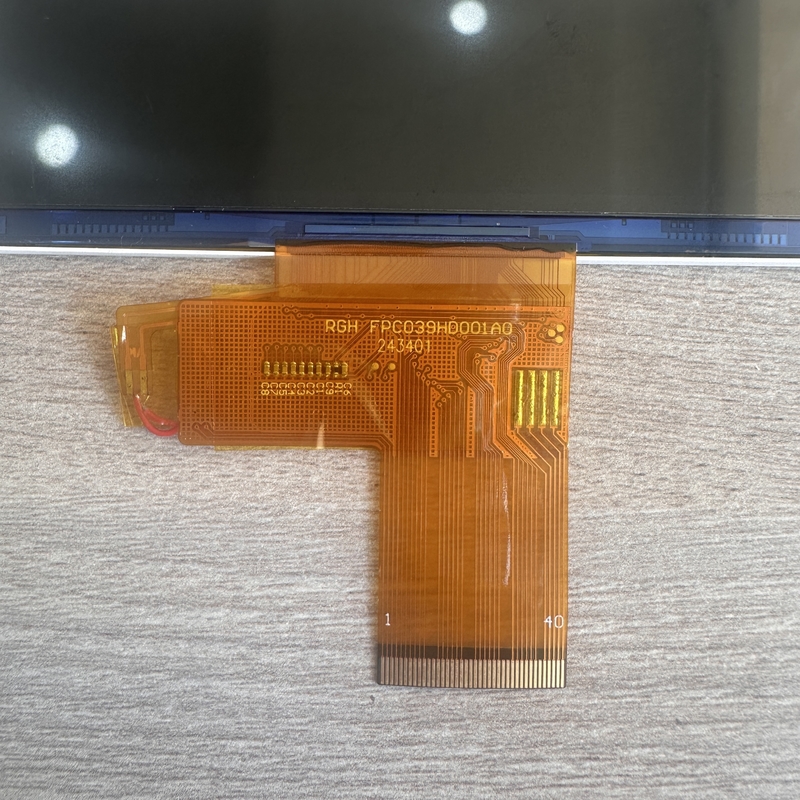

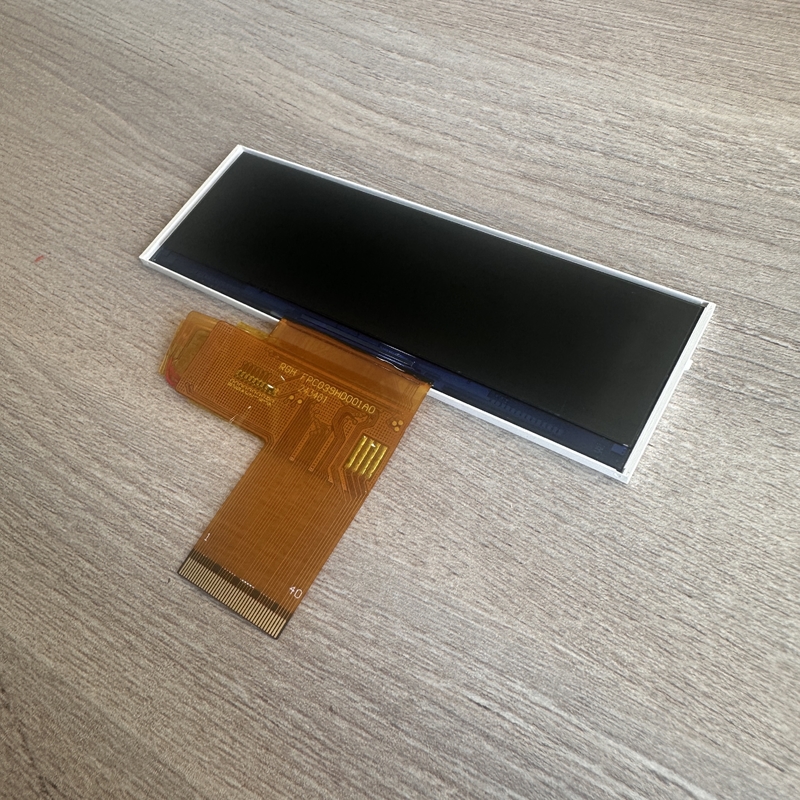

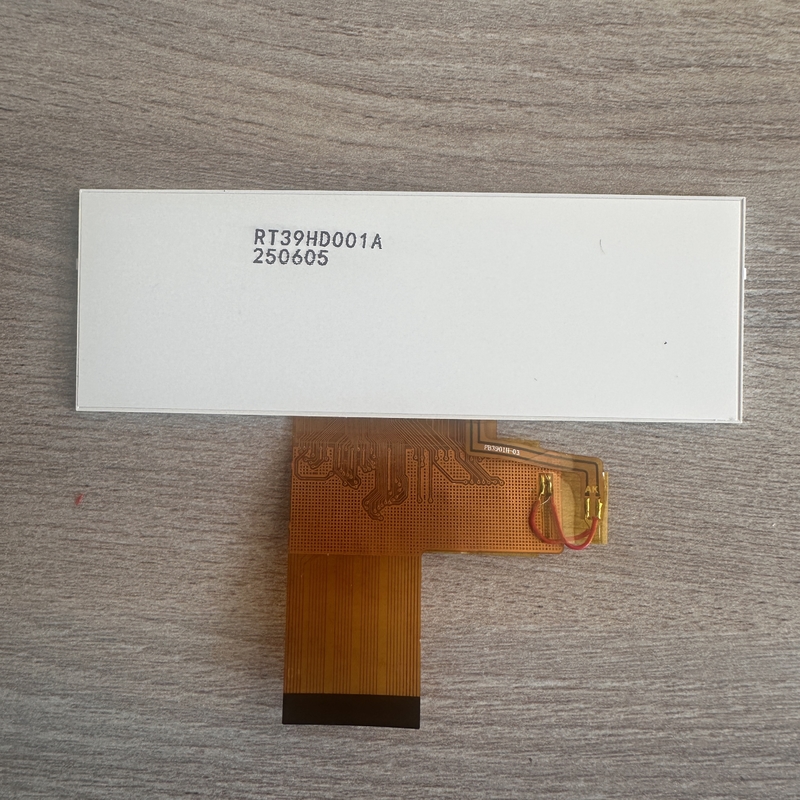

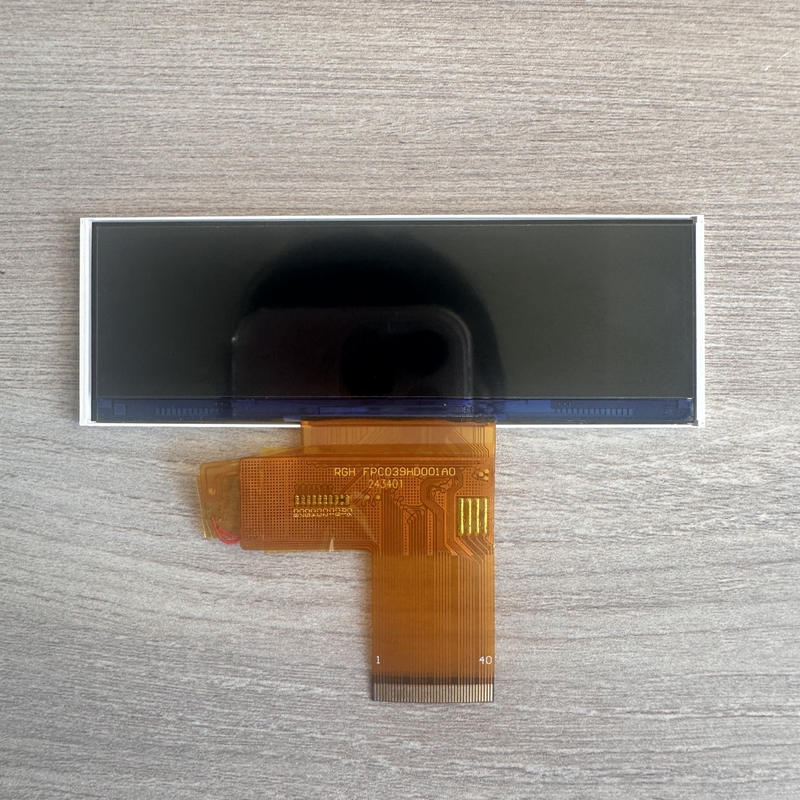

3.9" TFT LCD Module 800×220 With ST72568 Driver, 10-LED Backlight, Customizable Cover Glass

Product Features

• 3.9-inch TFT LCD module with resolution 800(RGB) × 220 for clear image display.
• Wide viewing angles (All o’clock) for consistent performance from any direction.
• Compact module dimensions 103.20(H) × 34.85(V) × 2.50(T) mm with active area 95.04(H) × 24.68(V) mm.
• Equipped with 10 LED backlight for uniform brightness.
• Brightness of 300 cd/m² for good visibility in various lighting environments.
• Long backlight lifetime of 35,000 hours.
• Customizable cover glass for flexible design requirements.
• Driven by ST72568 IC for stable operation.
• Wide operating temperature range -20°C to +70°C, storage temperature -30°C to +80°C.
• 1-year warranty for quality assurance.

Applications

1. Industrial control panels.
2. Automotive secondary displays.
3. Test and measurement devices.
4. Smart home control interfaces.
5. Medical instruments.
6. Compact embedded systems.
