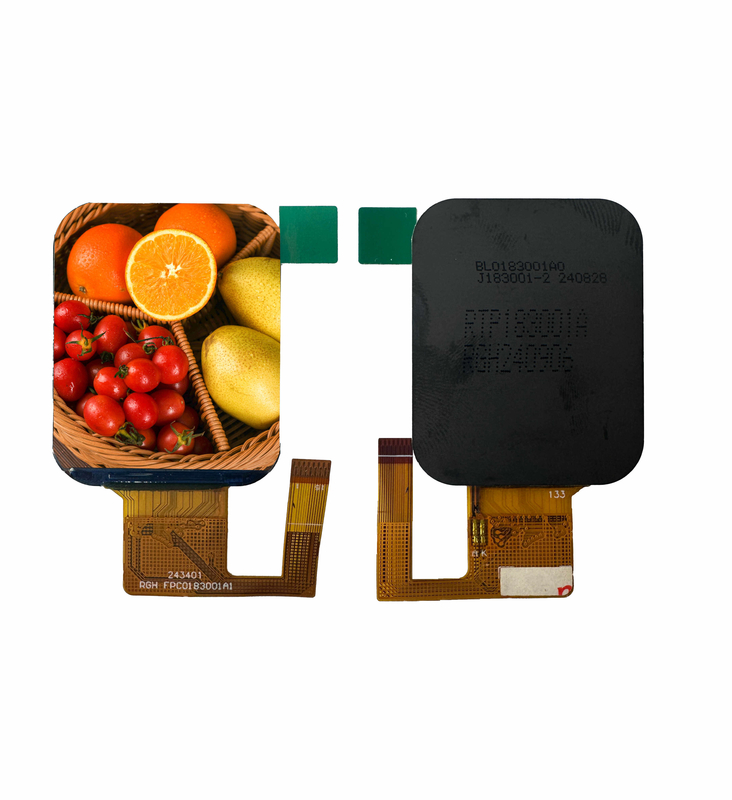

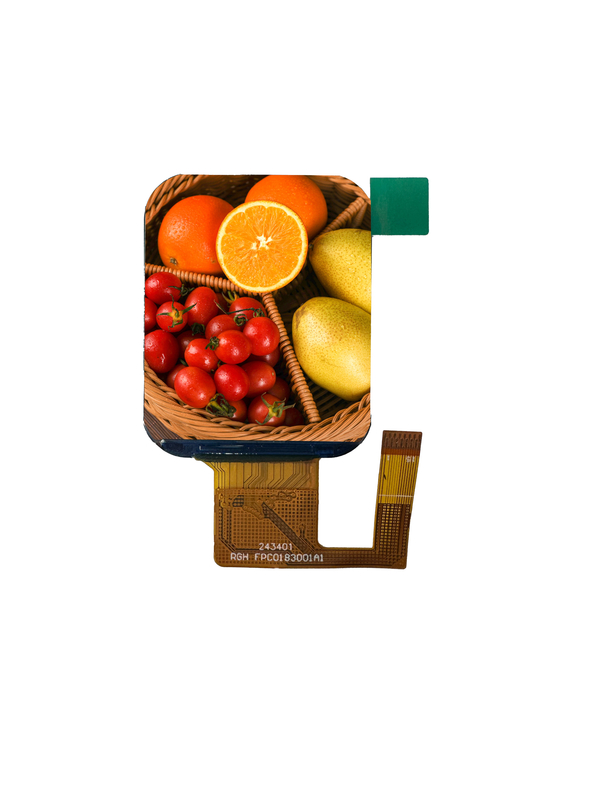

IPS TFT LCD 240X(RGB)X 284 1.83" Inch ST7789P3-G6 SPI Interface
Product Specification
| Size | 1.83inch |
| Resolution | 240*284 |
| Viewing Direction | ALL o’clock |
| LCM Outline Dimension | 31.62 (H) X39.13(V) X1.86(T) mm |
| Luminance | 400cd/m2 |
| Response time | 30ms |
| Interface Type | SPI |
| Power Consumption | 210MW |
About this item
This 1.83-inch IPS LCD module is designed to meet the demanding requirements of industrial applications, offering a compact yet high-quality display solution. With a resolution of 240x284 pixels and a luminance of 400cd/m², it delivers clear and vibrant visuals even in challenging environments. The display operates within a temperature range of -10℃ to 60℃, making it suitable for various industrial settings, while the storage temperature extends from -20℃ to 70℃, ensuring versatility in different climates.
The module utilizes an SPI interface for easy integration with microcontrollers and other devices, and the 15-pin connection ensures reliable performance. With a fast response time of 30ms, this display provides smooth, real-time updates, ideal for applications that require quick visual feedback.
Its wide viewing angle of "ALL O’clock" ensures visibility from nearly any angle, making it a versatile choice for user interfaces, control panels, or data displays. With a power consumption of just 210mW, it offers energy-efficient operation, suitable for battery-powered industrial applications.
Interface Pin Definition
| NO. | Symbol | Level | Function |
| 1 | LEDK | LED,cathode. | |
| 2 | GND | Ground | |
| 3 | NC | NC | |
| 4 | SDA | SPl interface input/output pin. | |
| 5 | D/C | command selection pin in 4-line serial interface | |
| 6 | SCL | This pin is used to be serial interface clock | |
| 7 | CS | Chip selection pin | |
| 8 | RESET | Reset signal. | |
| 9 | IOVCC | Power supply. | |
| 10-11 | VCC | Power supply. | |
| 12-13 | GND | Ground | |
| 14-15 | LEDA | LED,anode. |
