Place of Origin:
Shenzhern,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:
RTP183001A
Document:

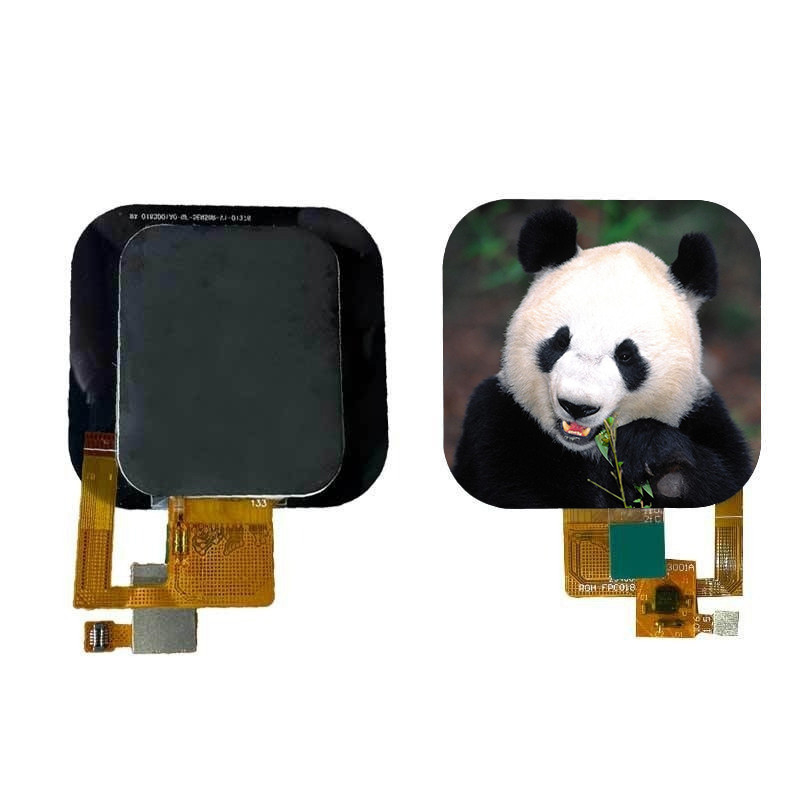

1.83 Inch IPS TFT LCD Display Module 240x284 Home Appliance
| Item | Specification |
|---|---|
|
Size |
1.83 inch |
|
Display mode |
Transmissive TFT
|
|
Part NO. |
RTP183001A
|
|
Resolution |
240*248 |
|
Outline size |
46.6 (H) X45.2(V) X2.86(T)
|
|
Active area |
29.52(H) X34.93 (V)
|
|
View direction |
ALL o’clock
|
|
Piexl pitch |
240X(RGB)X 284
|
|
Interface |
SPI |
|
Backlight |
3LEDS |
|
Surface luminance |
400cd/m2 |
|
Logic voltage |
2.5V-3.3V |
|
Operating temperature |
-10℃~60℃
|
|
Storage temperature |
-20℃~70℃
|
| NO. | Symbo | Leve | Function |
| 1 | LEDK | LED,cathode | |
| 2 | GND | Ground | |
| 3 | NC | NC | |
| 4 | SDA | SPI interface input/output pin. | |
| 5 | D/C | command selection pin in 4-line serial interface | |
| 6 | SCL | This pin is used to be serial interface clock | |
| 7 | Cs | Chip selection pin | |
| 8 | RESET | Reset signal | |
| 9 | IOVCC | 2.8V(typ | Power supply |
| 10-11 | VCC | 1.8V(typ | Power supply |
| 12-13 | GND | Ground | |
| 14-15 | LEDA | LED,anode. |
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
