Document:

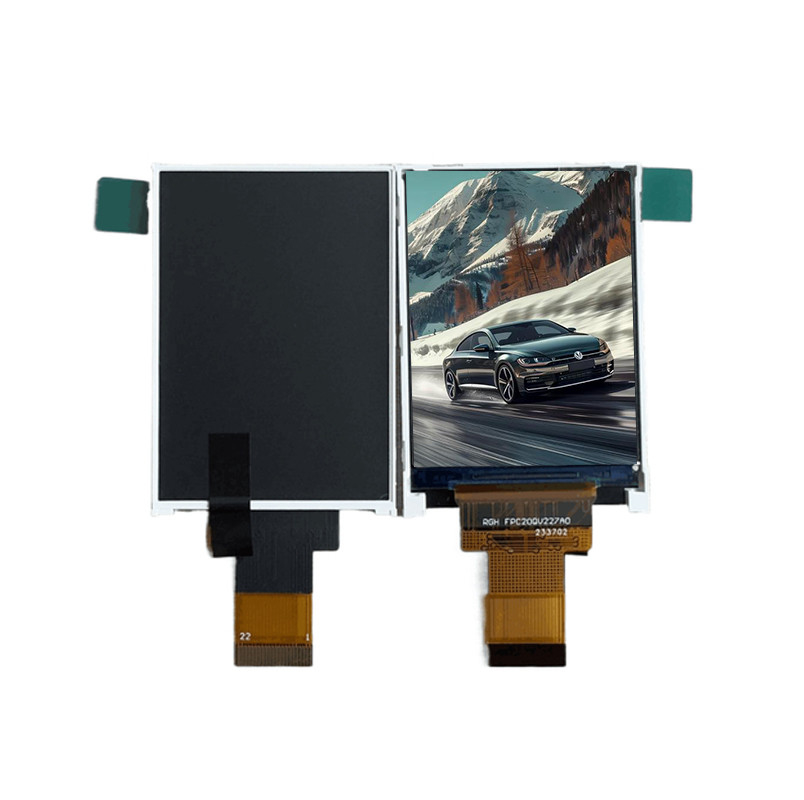

OEM MCU 8bit 2 Inch TFT Display SPI 240x320 Resolution For Differentiated LCD
| Item | Specification |
|---|---|
|
Size: |
2.0inch |
|
Display mode |
Transmissive TFT |
|
Part NO. |
RT20QV227A |
|
Resolution |
240*320 |
|
Outline size |
36.05(H)*51.80(V)*2.45(T) |
|
Active area |
30.6(W)*40.8(H) |
|
View direction |
ALL |
|
Piexl pitch |
240(RGB)*320 |
|
Interface |
MCU 8bit |
|
Backlight |
3LEDS |
|
Surface luminance |
500cd/m2 |
|
Logic voltage |
2.5V-3.3V |
|
Operating temperature |
-10℃~60℃ |
|
Storage temperature |
-20℃~70℃ |
| NO. | Symbol | Level | Function |
| 1 | LEDA | LED,anode. | |
| 2 | LEDK | LED,cathode. | |
| 3-4 | NC | NC | |
| 5 | IOvCC | 1.8V/2.8V | Power supply |
| 6 | VCC | 2.8V(typ) | Power supply |
| 7-14 | DB7-DB0 | data bus | |
| 15 | RD | -Read enable in 8080 MCU parallel interface | |
| 16 | WR | -Write enable in MCU parallel interface | |
| 17 | RS | -Display data/command selection pin inparallel interface | |
| 18 | CS | -Chip selection pin | |
| 19 | TE | -Tearing effect signal is used to synchronize MCU to frame memory | |
| 20 | RESET | -This signal will reset the device and it must be applied to properly | |
| 21-22 | GND | GND |
|
|
