Place of Origin:
Shenzhen,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

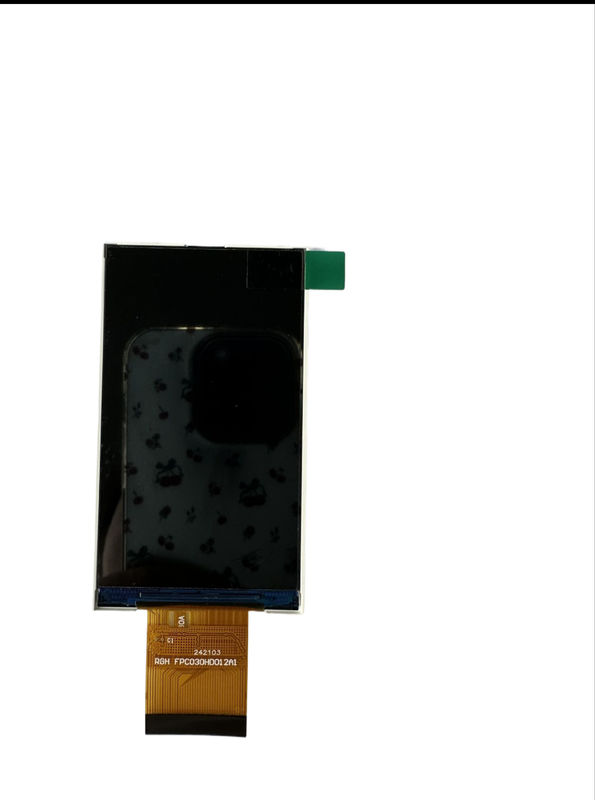

RT30HD012A
Document:
| NO. | Symbol | Level | Function |
| RGB | |||
| 1 | LEDA | LED A | |
| 2 | LEDK | LED K | |
| 3 | VCC | 2.8V | Power setting |
| 4-13 | GND | Ground pin for analog circuits | |
| 14 | VS | Frame synchronizing signal for RGB. | |
| 15 | HS | Line synchronizing signal for RGB. | |
| 16 | DCLK | Dot clock signal for RGB. | |
| 17 | DE | DE | |
| 18-22 | B0-B4 | Data bus. | |
| 23-28 | G0-G5 | Data bus. | |
| 29-33 | R0-R4 | Data bus | |
| 34 | RESET | RESET PIN | |
| 35 | CS | Chip selection. | |
| 36 | SCL | Serial interface clock.38 CS | |
| 37 | SDA | Serial in/out signal. | |
| 38 | GND | Ground pin for analog circuits | |
| 39 | VCC | 2.8V | Power setting |
| 40 | GND | Ground pin for analog circuits | |
| MIPI | |||
| 1 | LEDA | LED A | |
| 2 | LEDK | LED K | |
| 3 | VCC | 2.8V | Power setting |
| 4 | GND | Ground pin for analog circuits | |
| 5 | DN0 | Mipi data signal | |
| 6 | DP0 | Mipi data signal | |
| 7 | GND | Ground pin for analog circuits | |
| 8 | CKN | Mipi clock signal | |
| 9 | CKP | Nipi clock signal | |
| 10 | GND | Ground pin for analog circuits | |
| 11 | DN1 | Mipi data signal | |
| 12 | DP1 | Mipi data signal | |
| 13-33 | GND | Ground pin for analog circuits | |
| 34 | RESET | RESET PIN | |
| 35-37 | GND | Ground pin for analog circuits | |
| 38 | VCC | 2.8V | Power setting |
| 39 | GND | Ground pin for analog circuits | |
| 40 | VCC | 2.8V | Power setting |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the CTP?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 20 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
