Place of Origin:
Shenzhen,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

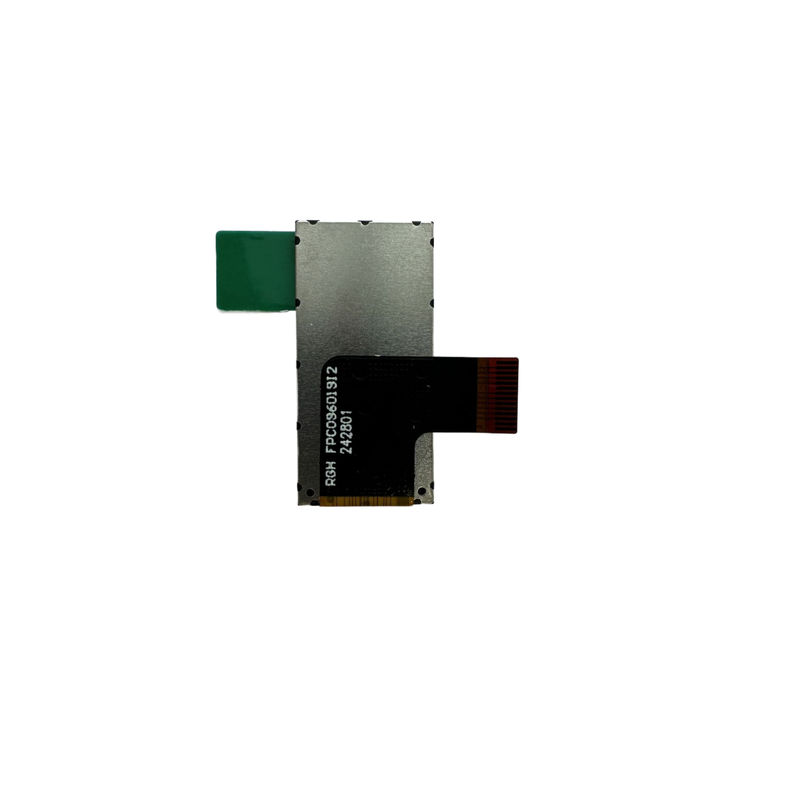

RT096019I
Document:
| NO. | Symbol | Level | Function |
| 1 | NC | NO | |
| 2 | NC | NO | |
| 3 | SDA | SPl interface input/outout pin The data is latched on the rising edge of the SCL signal. | |
| 4 | SCL | This pin is wsed to be serial interface clock. | |
| 5 | D/C | Disoklay data/command selection pin in 4-line serial interface. | |
| 6 | RESET | his signal will reset the device and it must be applied to properly initalize the chip selection pin:Low enable,low. | |
| 7 | CS | Chip sdlection pin Low enable High disable. | |
| 8 | GND | Ground | |
| 9 | NC | NO | |
| 10 | VCC | Power supply for Analog VCC=2.5V-3.3V | |
| 11 | LEDK | LED Cathode | |
| 12 | LEDA | LED anode | |
| 13 | GND | Ground | |
| 14 | NC | NO |
| |
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the CTP?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 20 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
