Place of Origin:
Shenzhen,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

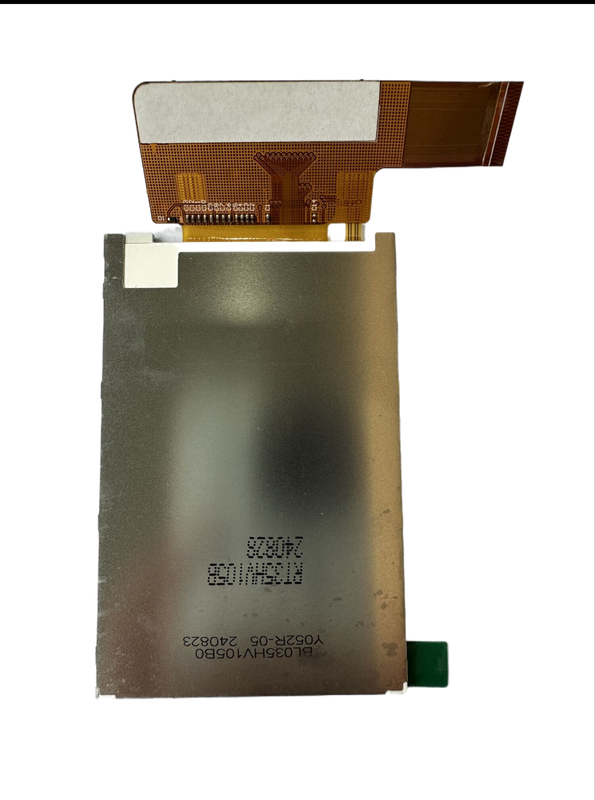

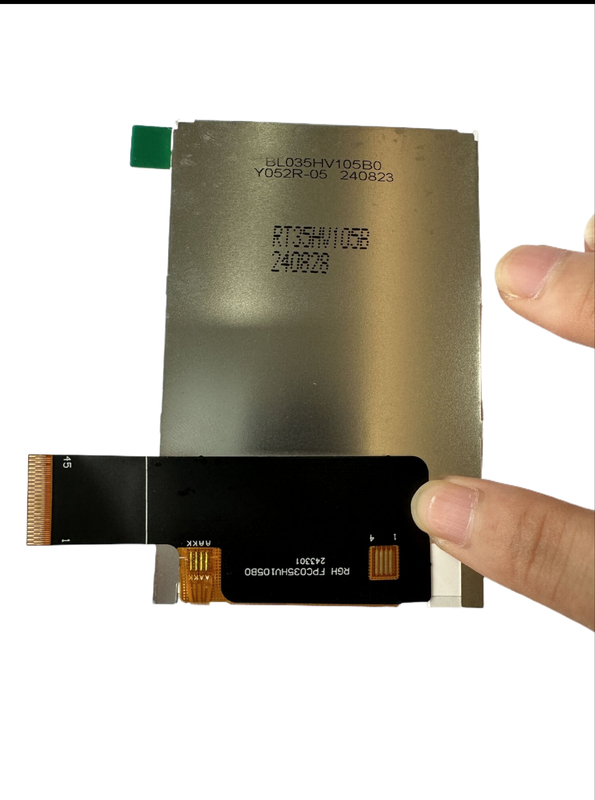

RT35HV105B
Document:
| NO. | Symbol | Level | Function |
| 1 | GND | Ground | |
| 2 | LEDA | LEDA | |
| 3 | LEDK | LEDK | |
| 4 | GND | Ground | |
| 5 | VCC | Power setting | |
| 6 | IOVCC | Power supply for digital interface | |
| 7 | GND | Ground | |
| 8 | RESET | This signal will reset the device and it must be applied to properly |
|
| 9 | VS | Vertical Sync input | |
| 10 | HS | Horizontal Sync input | |
| 11 | DCLK | Pixel clock | |
| 12 | ENABLK | ENABLK | |
| 13 | GND | Ground | |
| 14-31 | DB17-DB0 | data bus. | |
| 32 | GND | Ground | |
| 33 | SDA | Serial command data input | |
| 34 | SCL | Serial command clock input | |
| 35 | CSX | -Chipselection pin | |
| 36 | GND | Ground | |
| 37 | XR | XR | |
| 38 | YD | YD | |
| 39 | XL | XL | |
| 40 | YU | YU | |
| 41 | NC | NC | |
| 42-44 | GND | Ground | |
| 45 | NC | NC |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the CTP?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 20 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
