Place of Origin:
Shenzhen,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

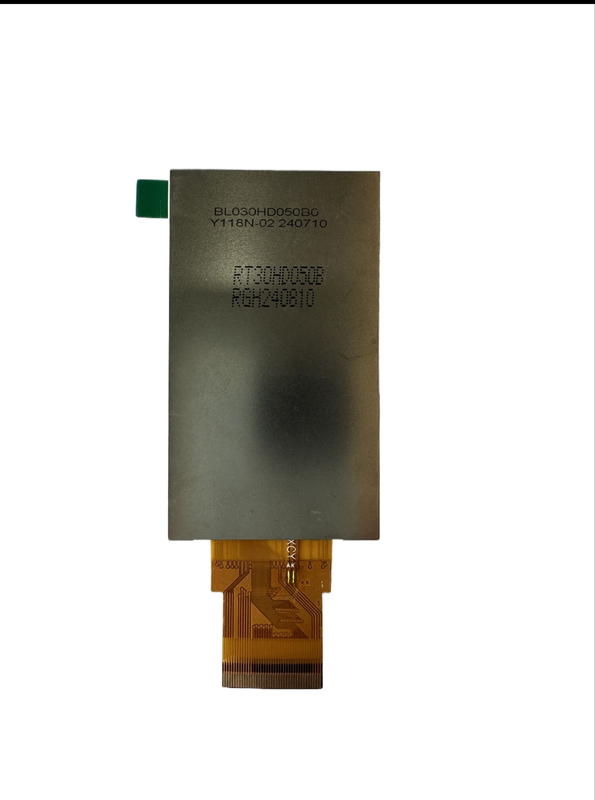

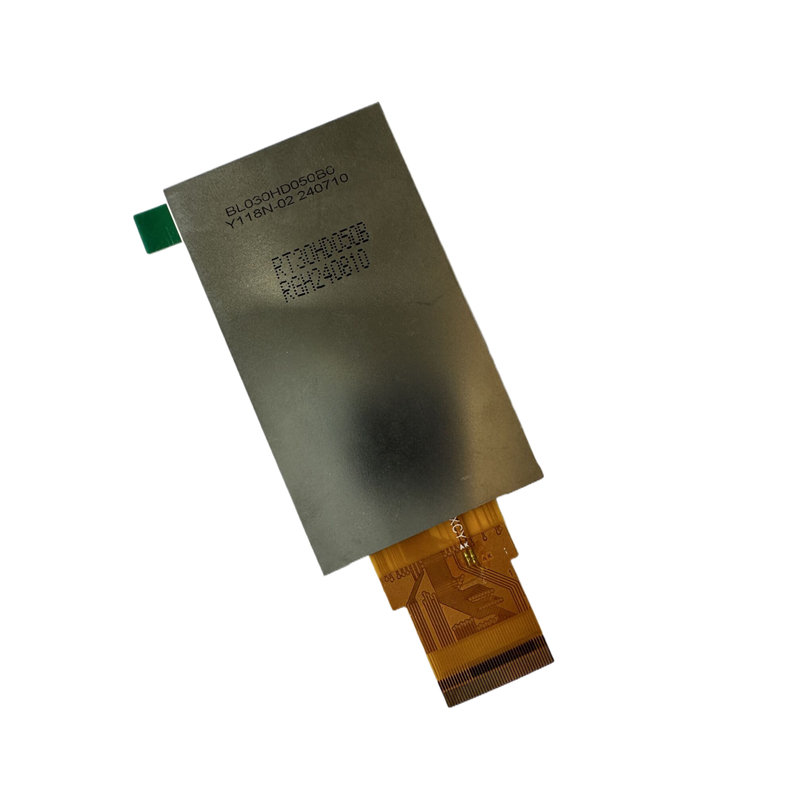

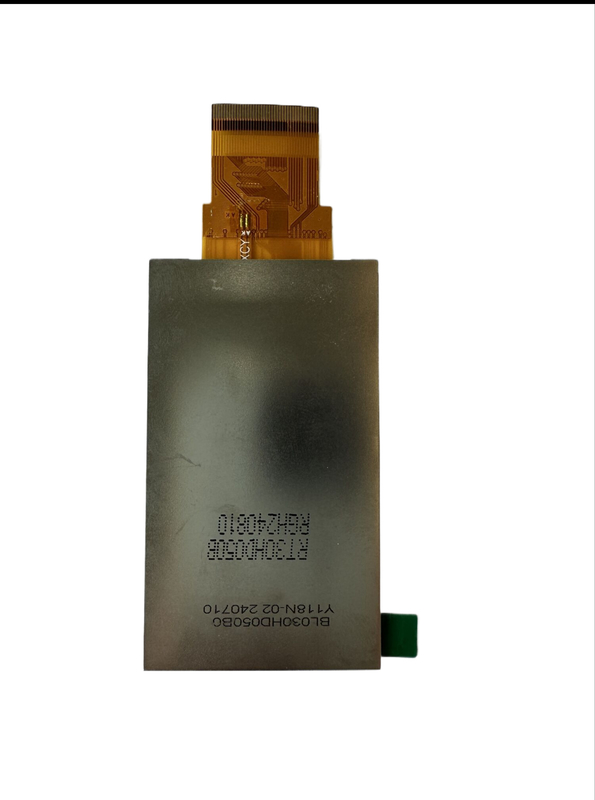

RT30HD050B
Document:
| NO. | Symbol | Level | Function |
| 1 | LEDK | LEDK | |
| 2 | LEDA | LEDA | |
| 3 | GND | Ground | |
| 4 | VCC | Power setting | |
| 5-12 | R0-R7 | Red data | |
| 13-20 | G0-G7 | Green data | |
| 21-28 | B0-B7 | Blue data | |
| 29 | GND | Ground | |
| 30 | CLK | Pixel clock | |
| 31 | NC | NC | |
| 32 | HS | Horizontal Sync input | |
| 33 | VS | Vertical Sync input | |
| 34 | DE | Data input enable | |
| 35-36 | GND | Ground | |
| 37 | RESET | This signal will reset thedevice and it must be applied to properly |
|
| 38 | CS | -Chip selection pin | |
| 39 | SCL | Serial command clock input | |
| 40 | SDI | Serial commanddatainput |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the CTP?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 20 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
