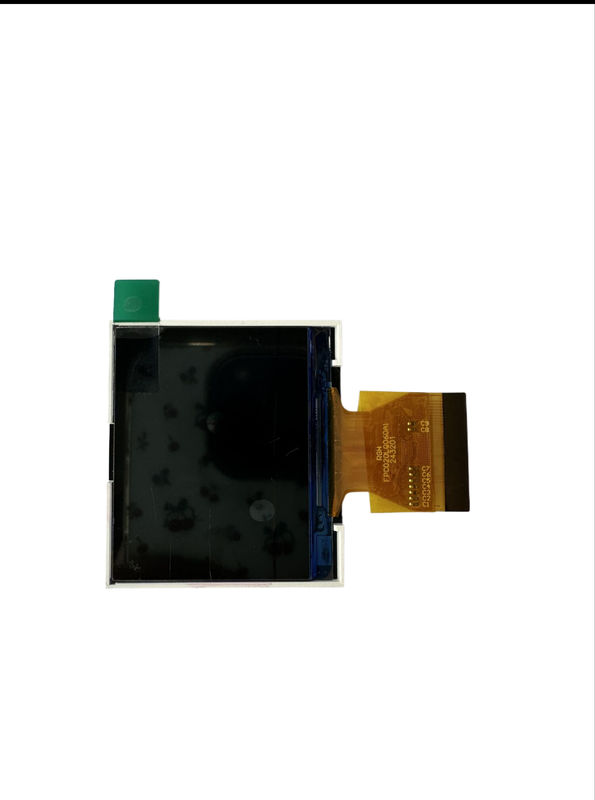

Place of Origin:
Shenzhen,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:
RT20LQ105B
Document:
| NO. | Symbol | Level | Function |
| 1-9 | DUMMY | No connection. | |
| 10 | VCOML | 1UF/25V电容接地 | |
| 11 | VCOMH | 1UF/25V电容接地 | |
| 12 | GND | VSs | Ground. |
| 13 | DUMMY | No connection. | |
| 14 | AVDD | No connection. | |
| 15 | DUMMY | No connection. | |
| 16 | DUMMY | No connection. | |
| 17 | DUMMY | No connection. | |
| 18 | DUMMY | No connection. | |
| 19 | LEDA | LED,cathode. | |
| 20 | DUMMY | No connection. | |
| 21 | DUMMY | No connection. | |
| 22 | LEDA | LED,cathode. | |
| 23 | GND | VSs | Ground. |
| 24 | VCC | 2.8V(typ) | Power supply. |
| 25 | VSYNC | H/L | Frame synchronizing signal for RGB. |
| 26 | HSYNC | H/L | Line synchronizing signal for RGB. |
| 27 | DCLK | H/L | Dot clock signal for RGB. |
| 28 | DUMMY | No connection. | |
| 29 | DUMMY | No connection. | |
| 30-35 | DB0-DB5 | H/L | Data bus. |
| 36 | SDA | H/L | Serial inlout signal. |
| 37 | SCL | H/L | Serial interface clock. |
| 38 | CS | H/L | Chip selection. |
| 39 | NC | No connection. | |
| 40 | RESET | H/L | Reset signal. |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
