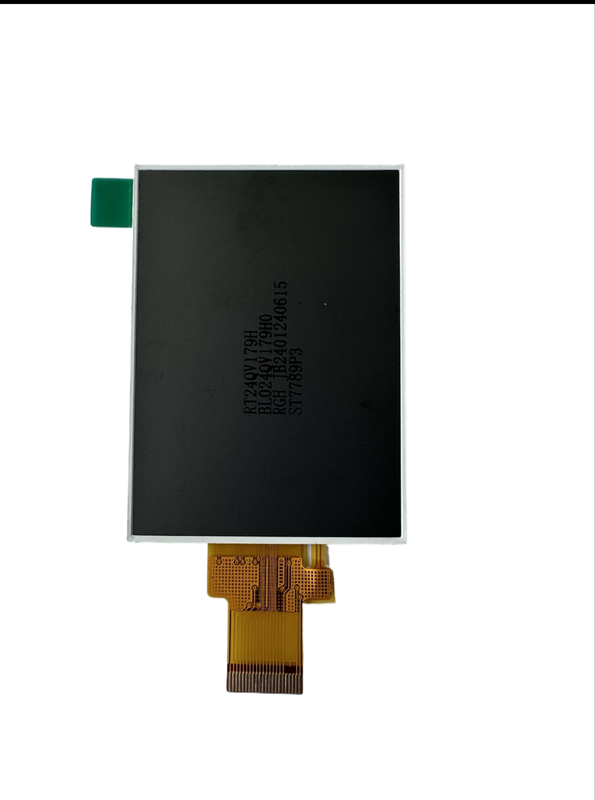

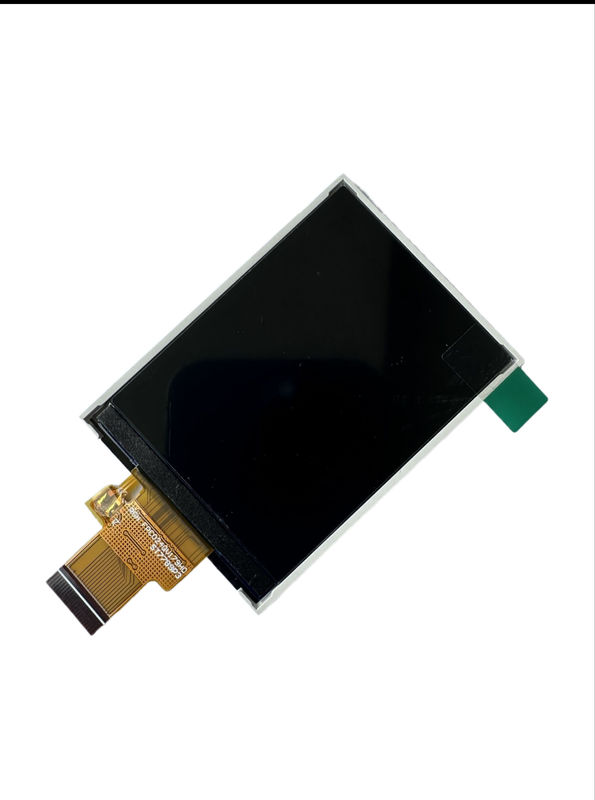

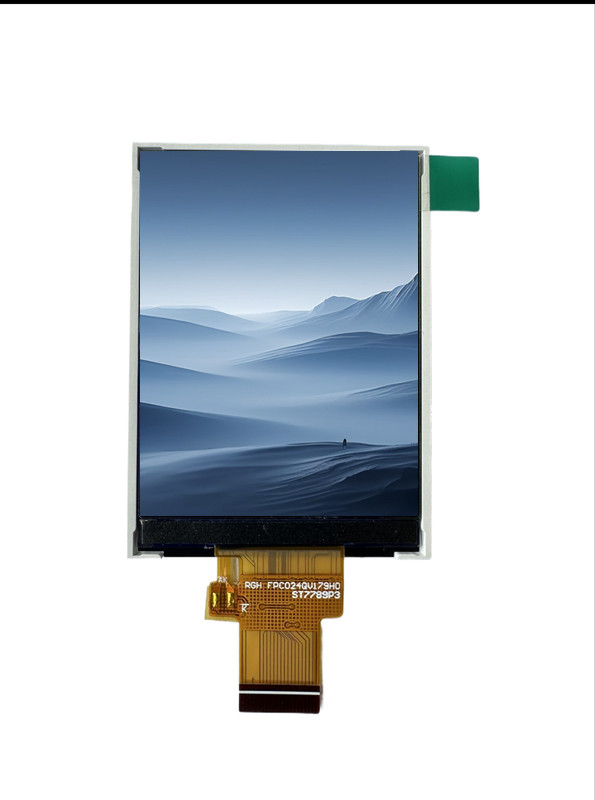

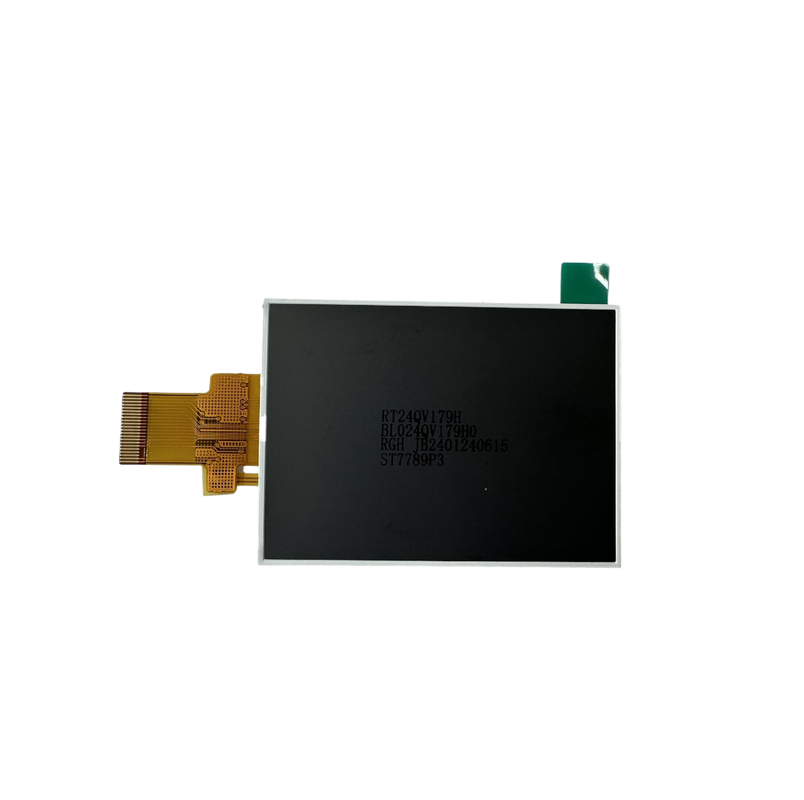

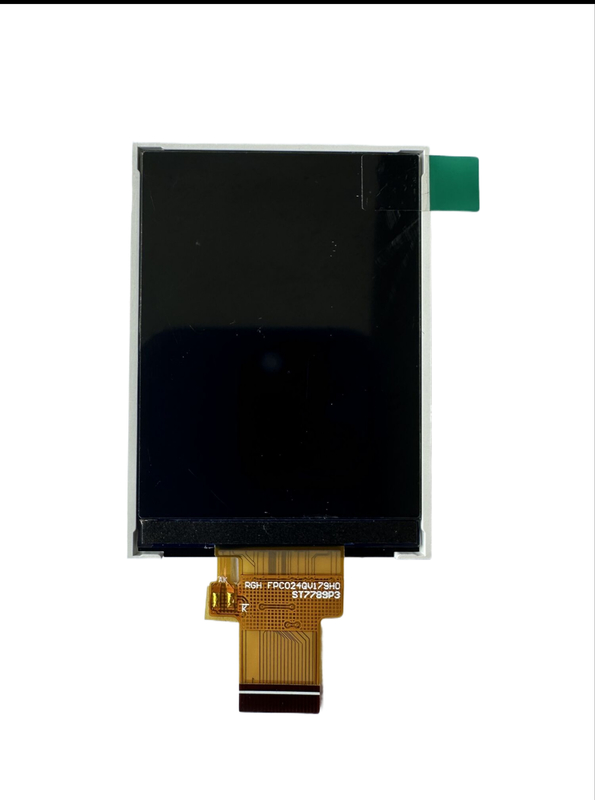

Place of Origin:
Shenzhen,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:
RT24QV179H
Document:
| NO. | Symbol | Level | Function |
| 1 | LEDA | LED,anode. | |
| 2 | LEDK | LED,cathode. | |
| 3-4 | NC | NC | |
| 5 | NC | NC | |
| 6 | VCC | 2.8V(typ) | Power supply. |
| 7-14 | DB7-DB0 | data bus. | |
| 15 | RD | -Read enable in 8080 MCU parallel interface. | |
| 16 | WR | -Write enable inMCU parallel interface. | |
| 17 | RS | -Display data/command selection pin in parallel interface. | |
| 18 | CS | -Chip selection pin | |
| 19 | TE | -Tearing effect signal is used to synchronize MCU to frame memory | |
| 20 | RESET | -This signal will reset the device and it must be applied to properly | |
| 21-22 | GND | GND |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
