Place of Origin:
Shenzhern,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

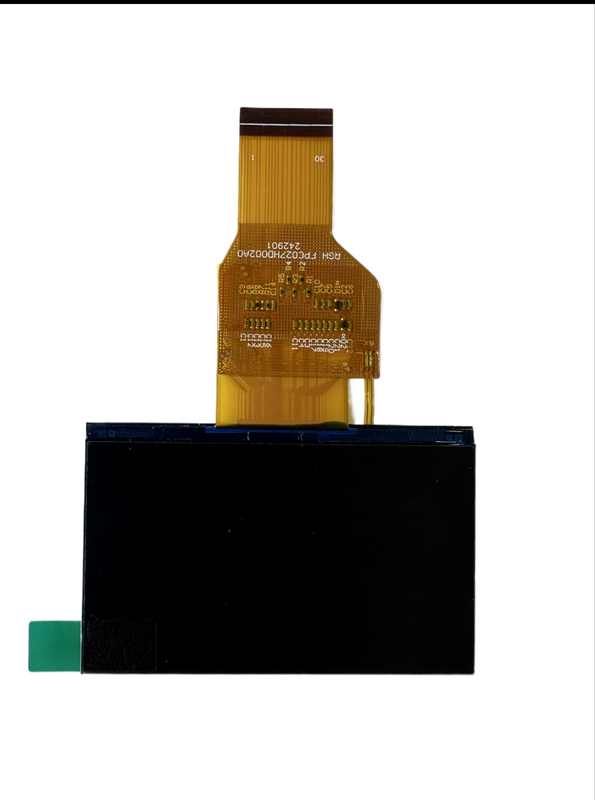

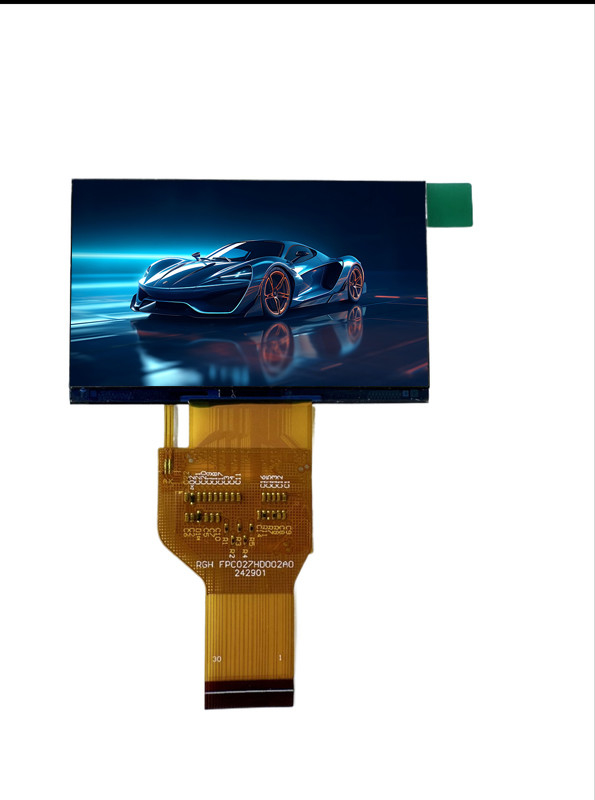

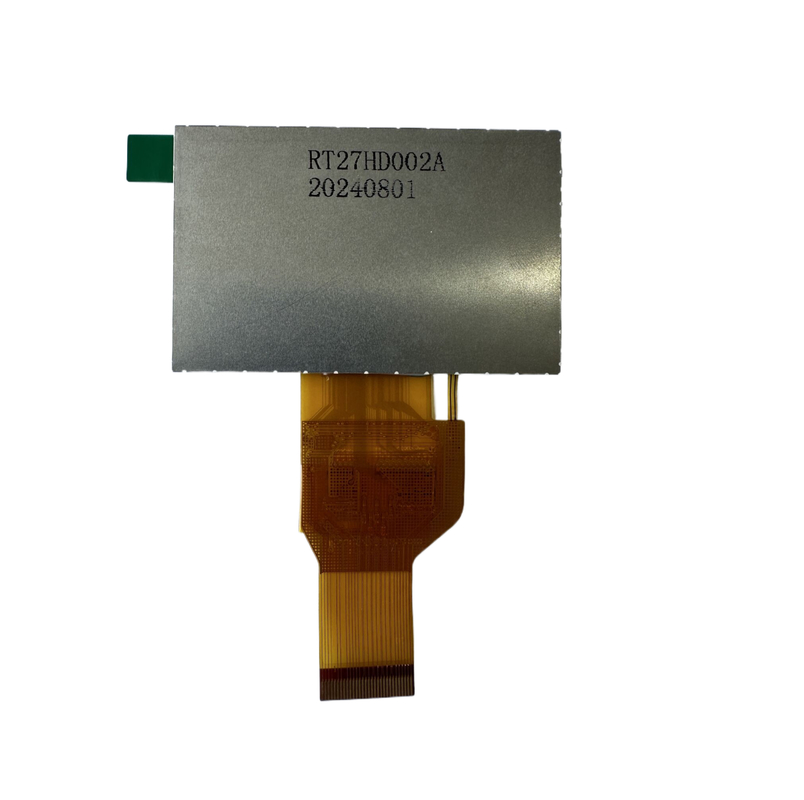

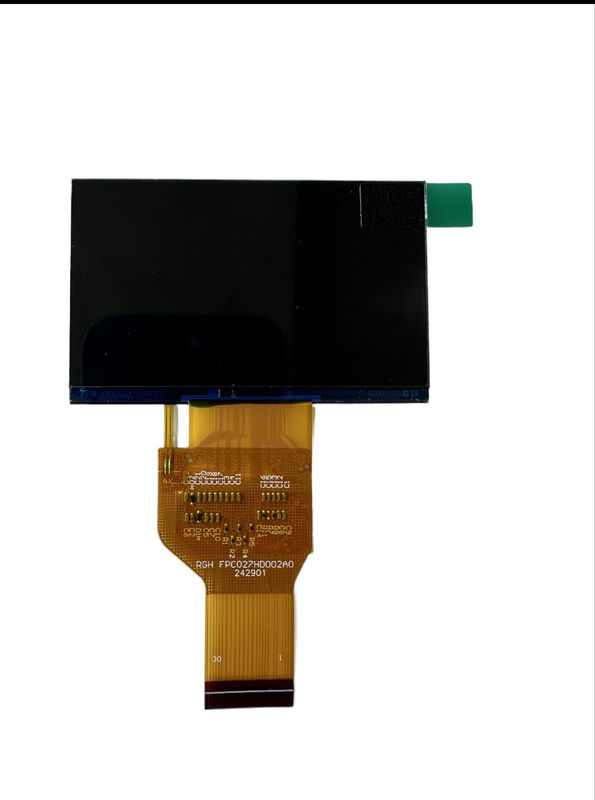

RT27HD002A
Document:
| NO. | Symbol | Level | Function |
| 1 | GND | Ground | |
| 2 | LEDA | LED,anode. | |
| 3 | LEDK | LED,cathode. | |
| 4 | SPI-12C | Serial interface selection | |
| 5 | NC | NC | |
| 6 | VDD | Power setting | |
| 7 | IFSEL1 | NC | |
| 8 | NC | NC | |
| 9 | STBYB | Stand by mode | |
| 10 | SDA | Serial data input of SPl and I2C.SDA for 12C interface. | |
| 11 | SCL | Serial communication Clock signal for SPI and I2C | |
| 12 | CS | Serial communication chip selection | |
| 13 | GND | Ground | |
| 14 | RXIN3- | LVDS data | |
| 15 | RXIN3+ | LVDS data | |
| 16 | GND | Ground | |
| 17 | RXCLKIN- | LVDS clock | |
| 18 | RXCLKIN+ | LVDS clock | |
| 19 | GND | Ground | |
| 20 | RXIN2- | LVDS data | |
| 21 | RXIN2+ | LVDS data | |
| 22 | GND | Ground | |
| 23 | RXIN1- | LVDS data | |
| 24 | RXIN1+ | LVDS data | |
| 25 | GND | Ground | |
| 26 | RXIN0- | LVDS data | |
| 27 | RXIN0+ | LVDS data | |
| 28 | GND | Ground | |
| 29 | UPDN | Setting flexible GOA scan function.Normally pull low | |
| 30 | DIR | The shift direction ofdevice internal shift registeris controlled by this as |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
