Place of Origin:
Shenzhern,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

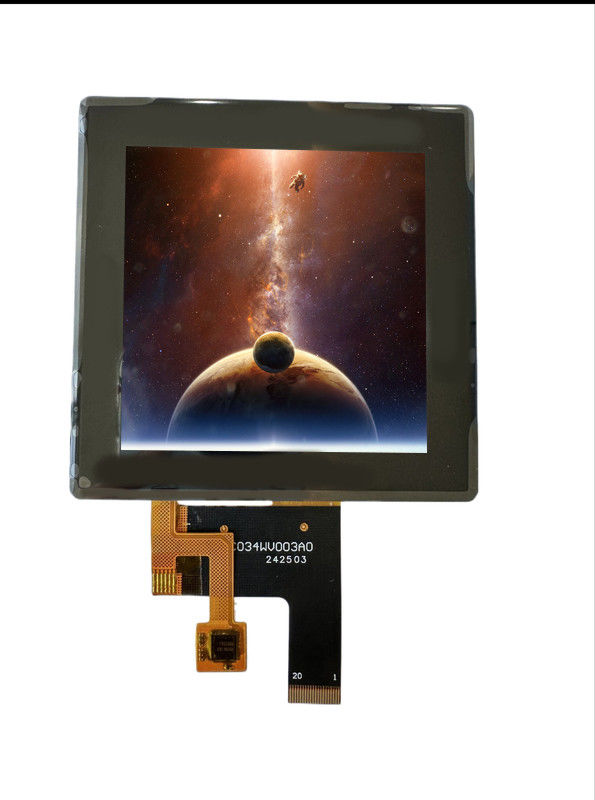

RT34WV003A
Document:
| NO. | Symbol | Level | Function |
| 1 | GND | Ground | |
| 2 | D0N | MIPI DSI differential data pair. | |
| 3 | D0P | MIPI DSI differential data pair. | |
| 4 | GND | Ground | |
| 5 | CLKN | MIPI DSI differential clock pair. | |
| 6 | CLKP | MIPI DSI differential clock pair. | |
| 7 | GND | Ground | |
| 8 | D1N | MIPI DSI differential data pair. | |
| 9 | D1P | MIPI DSI differential data pair. | |
| 10 | GND | Ground | |
| 11 | RESET | -The external reset input | |
| 12 | TP-SCL | TP-SCL | |
| 13 | TP-VDD | TP-VDD | |
| 14 | TP-SDA | TP-SDA | |
| 15 | TP-RST | TP-RST | |
| 16 | TP-INT | TP-INT | |
| 17 | VDD | 3.3V | Powersetting |
| 18 | IOvCC | 1.8V | Power Supply for I/O System. |
| 19 | LEDA | LED power anode | |
| 20 | LEDK | LED power cathode |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the CTP?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 20 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
