Place of Origin:
Shenzhern,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

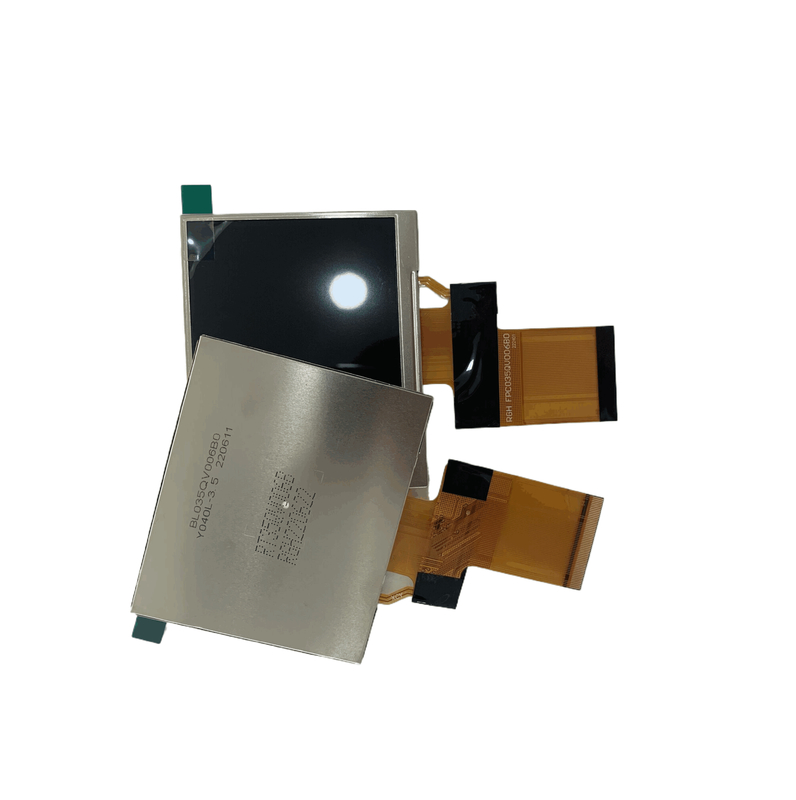

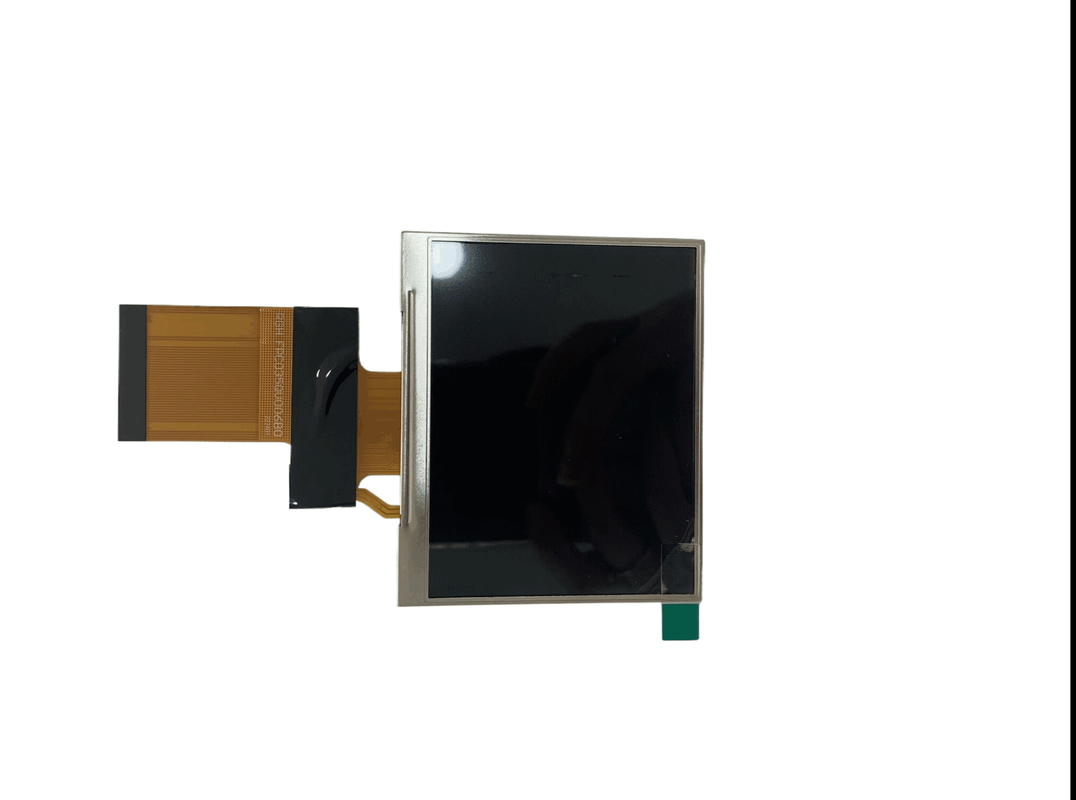

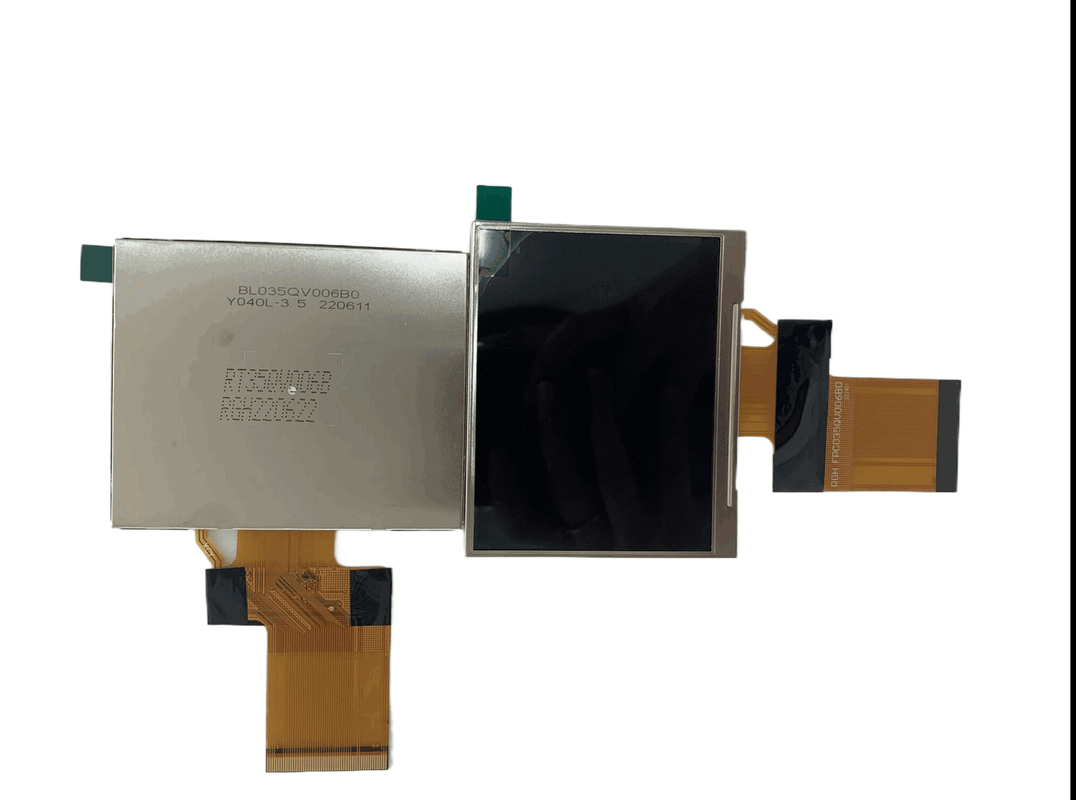

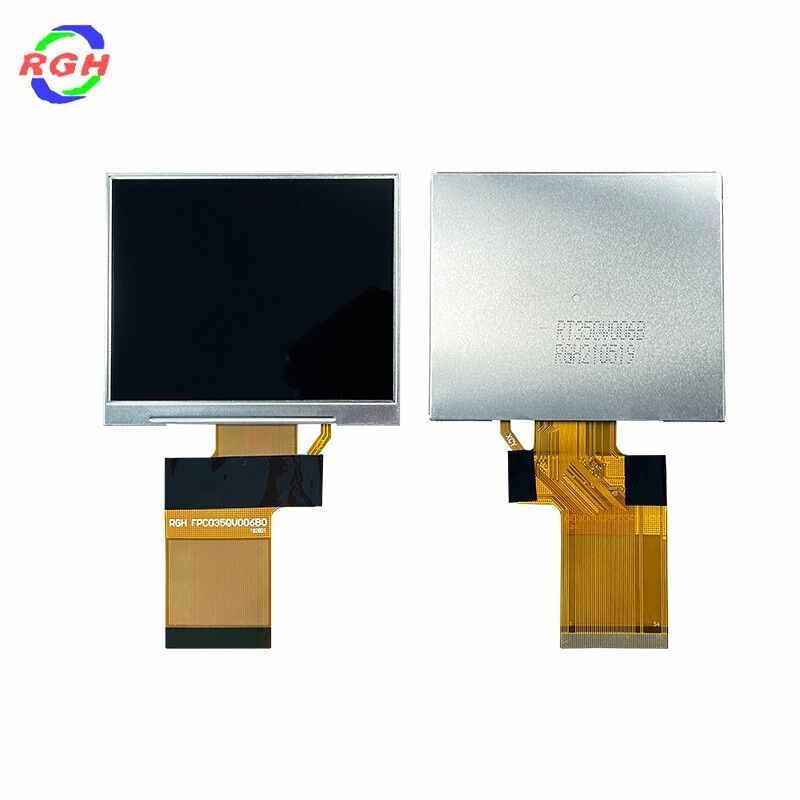

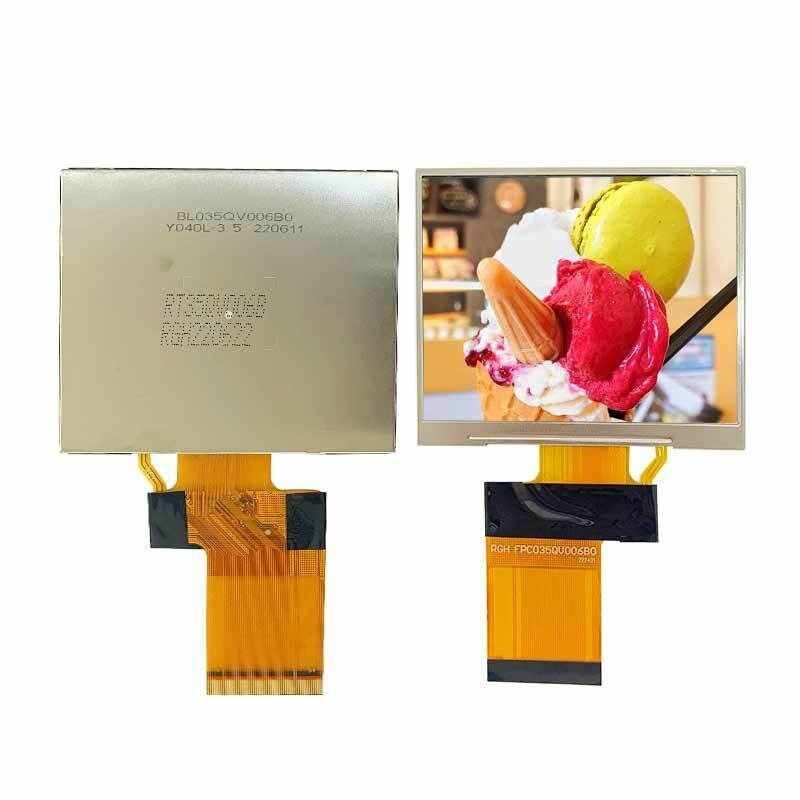

RT35QV006B
Document:
| Item | Specification |
|---|---|
|
Size |
3.5inch |
|
Display mode |
Transmissive TFT
|
|
Part NO. |
RT35QV006B |
|
Resolution |
320*240 |
|
Outline size |
76.74W) X63.74(H) X3.29(T)
|
|
Active area |
70.08(W) X52.56 (H)
|
|
View direction |
ALL o’clock
|
|
Piexl pitch |
320(RGB)X 240
|
|
Interface |
RGB |
|
Backlight |
6LEDS |
|
Surface luminance |
300cd/m2 |
|
Logic voltage |
2.5V-3.3V |
|
Operating temperature |
-20℃~70℃
|
|
Storage temperature |
-30℃~80℃
|
| NO. | Symbol | Leve | Function |
| 1-2 | LEDK | LED- | |
| 3-4 | LEDA | LED+ | |
| 5-7 | NC | NC | |
| 8 | RESET | Reset signal input terminal Active at "L" | |
| 9 | Cs | Chip select signal interfaco | |
| 10 | SCL | Clock pin of serial interface | |
| 11 | SDA | Data input pin in serial mode | |
| 12-19 | B0-B7 | Blue Data | |
| 20-27 | G0-G7 | Glue Data | |
| 28-35 | R⁰-R7 | Rlue Data | |
| 36 | HSYNC | Horizontal sync inout in RGB mode | |
| 37 | VSYNC | Vertical sync input in RGB mode. | |
| 38 | DCLK | CLOCK signal.Latchingdata at the rising edge. | |
| 39-40 | NC | NC | |
| 41-42 | VCC | Digital Power(3.3v) | |
| 43-51 | NC | NC | |
| 52 | DE | Display enable pin from controller | |
| 53-54 | GND | Power ground |
|
|
