Place of Origin:
Shenzhen,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

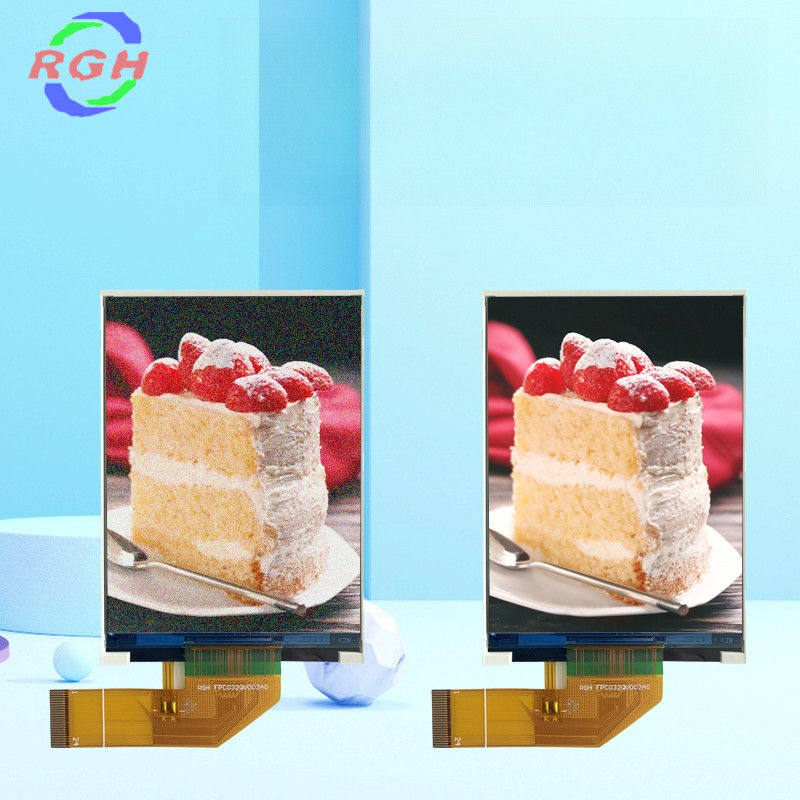

RT32QV002A
Document:
| Item | Specification |
|---|---|
|
Display mode |
Transmissive TFT
|
|
Part NO. |
RT32QV002A
|
|
Resolution |
240(RGB)*320 |
|
Outline size |
53.60(H) X 76(W) X2.45(T)
|
|
Active area |
48.60(W) X64.80 (H)
|
|
View direction |
ALL o’clock
|
|
Piexl pitch |
240X(RGB)X320
|
|
Interface |
MCU |
|
Backlight |
6LEDS |
|
Surface luminance |
420cd/m2 |
|
Driver IC |
ST7789V
|
|
Logic voltage |
2.5V-3.3V |
|
Operating temperature |
-20℃~70℃
|
|
Storage temperature |
-30℃~80℃
|
| Weight |
TBD
|
| NO. | Symbol | Level | Function |
| 1 | LEDA | LED,anode | |
| 2-3 | LEDK | LED,cathode | |
| 4 | TE | TE | |
| 5 | RESET | This signal will reset the device and it must be applied to properly |
|
| 6-13 | DB7-DB0 | data bus. | |
| 14 | GND | Ground | |
| 15 | SDA | Ground(0V)serial portdata input end | |
| 16 | RS/SCL | -Display data/command selection pin in parallel interface |
|
| 17 | RD | -Read enable in 8080 MCU parallel interface | |
| 18 | WR/A0 | -Write enable in MCU parallel interface | |
| 19 | CS | -Chip selection pin | |
| 20 | GND | Ground | |
| 21 | VCC | system voltage | |
| 22 | IOVCC | system voltage | |
| 23 | IM2/IM1 | ||
| 24 | GND | Ground |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
