RT096003C
Document:

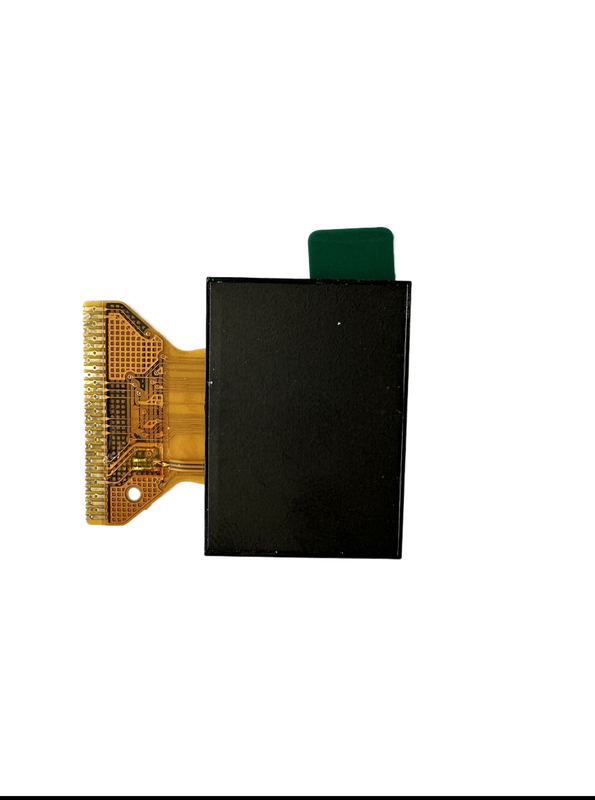

0.96 Inch 128x64 Full Color LCD Display Module with 35ms Response Time and 26.70 W *19.26 H *1.5 T Dimensions
| Size | 0.96 inches |
| Resolution | 128*64 |
| Backlight Type | LED |
| Viewing Angle | 12 O'CLOCK |
| Brightness | 150cd/m2 |
| Interface | SPI 4W |
| Driving IC | ST7735S |
| Operating temperature | -20℃~70℃ |
| NO. | Symbol | Level | Function |
| 1-5 | NC | Not Connection. | |
| 6 | LEDA | Power supply for backlight anode input terminals. | |
| 7 | VCC | 2.8V | Power supply |
| 8 | GND | Ground. | |
| 9 | IOVCC | 1.8V | Power supply for /O system. |
| 10-12 | NC | Not Connection. | |
| 13 | CS | Serial communication chip select. | |
| 14 | RESET | Resetpin. | |
| 15 | WR/A0 | Second Data lane in 2 data lane serial interface. | |
| 16-17 | NC | Not Connection. | |
| 18 | SCL | SPI interface clock pin. | |
| 19 | SDA | SPI interface input/output pin. | |
| 20 | TE | ||
| 21-28 | NC | Not Connection. | |
| 29 | GND | Ground. | |
| 30 | LEDK | Power supply for backlight cathode input terminals. |
|
|
