Model Number:
RTP35QV011A
Document:

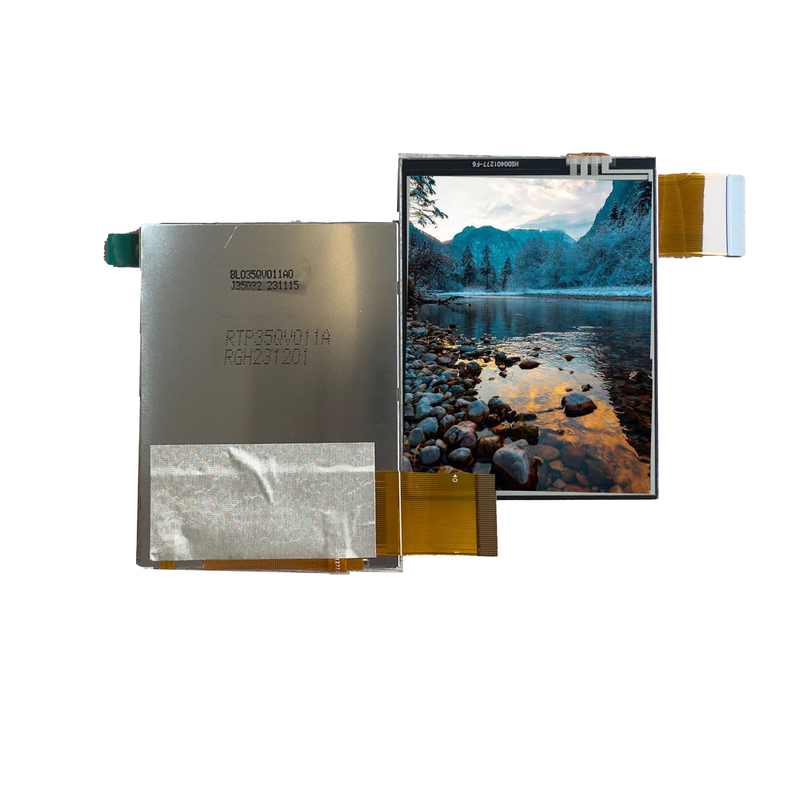

3.5 Inch TFT LCD Touch Display Module With 450 Cd/M2 Brightness And -20℃~70℃Operating Temperature
| Size | 3.5 inches |
| Resolution | 240*320 |
| Model | TFT LCD Display |
| Viewing Angle | 12:00 o'clock |
| Interface | RGB 18bit |
| Backlight Type | LED |
| Brightness | 450 cd/m² |
| Panel Type | IPS |
| NO. | Symbol | Level | Function |
| 1 | DE | Data enable signal for RGB interface operation | |
| 2-4 | GND | Ground. | |
| 5 | NC | NC | |
| 6-11 | R0-R5 | data bus | |
| 12-17 | G0-G5 | data bus | |
| 18-23 | B0-B5 | data bus | |
| 24 | SCL | Serial clock input for SPl interface. | |
| 25 | SDA | Serial data inputloutput bidirectional pin for SPI Interface. | |
| 26 | CS | chip select signal | |
| 27 | DCLK | Dot clock signal for RGB interface operation | |
| 28 | RESET | Reset pin | |
| 29 | HS | Line synchronizing signal for RGB interface operation | |
| 30 | VS | Frame synchronizing signal for RGB interface operation | |
| 31 | VCC | Power Supply (Analog) | |
| 32 | IOvCC | Power Supply (Logic) | |
| 33 | GND | Ground. | |
| 34 | LEDA | Back Light Power Supply Anode(+) | |
| 35 | LEDK | Back Light Power Supply Cathode(-) | |
| 36 | GND | Ground. | |
| 37 | XR | Touch Panel XR | |
| 38 | YD | Touch Panel YD | |
| 39 | XL | Touch Panel XL | |
| 40 | TU | Touch Panel YU |
