Place of Origin:
Shenzhen,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

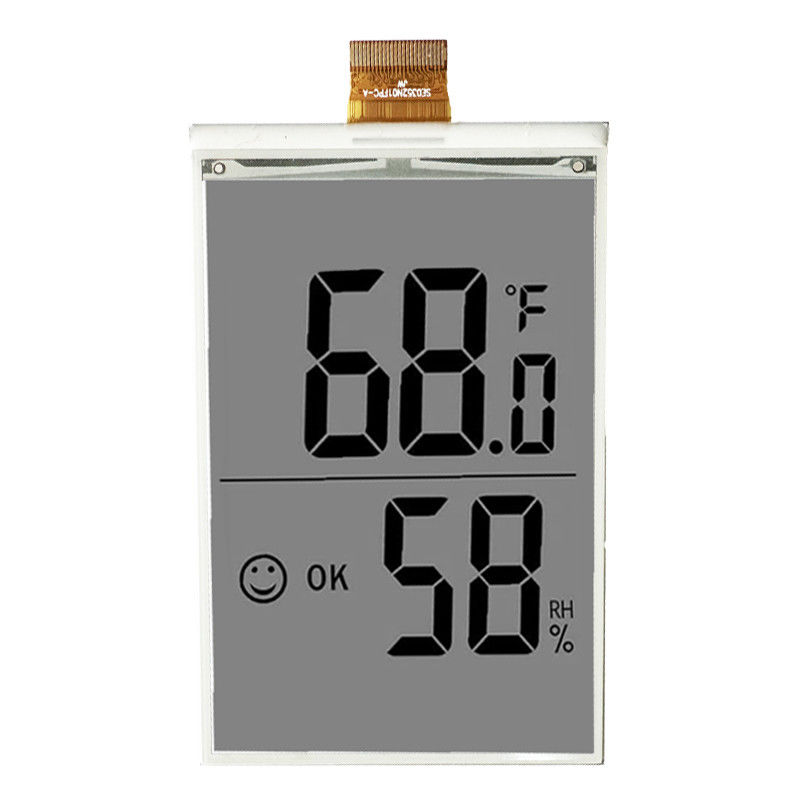

SE0352N01-A0
Document:
Video
| No. | Name | I/0 | Description | Remark |
| 1 | NC | Do not connect with other NC pins | ||
| 2 | GDR | 0 | N-Channel MOSFETGate Drive Control | |
| 3 | RESE | I | Current Sense Input for the Control Loop | |
| 4 | NC | Do not connect with other NC pins | ||
| 5 | VDHR | C | Positive source driver voltage for Source | |
| 6 | TSCL | 0 | IC Interface to digital temperature sensor Clock pin | |
| 7 | TSDA | I/0 | F²C Interface to digital temperature sensor Data pin | |
| 8 | BS | I | Bus Interface selection pin | Note 5-4 |
| 9 | BUSY N | 0 | Busy state output pin | Note 5-3 |
| 10 | RST N | I | Reset signal input.Active Low. | |
| 11 | DC | I | Data /Command control pin | Note 5-2 |
| 12 | CSB | I | Chip select input pin | Note 5-1 |
| 13 | SCL | I | Serial Clock pin (SPI) | |
| 14 | SDA | I | Serial Data pin(SPD | |
| 15 | VDDIO | P | Power Supply for interface logic pins.It should be connected with VDD | |
| 16 | VDD | P | Power Supply for the chip | |
| 17 | GND | P | Ground | |
| 18 | VDDD | C | Core logic power pin VDD can be regulatedintermally from VCI.A capacitor should be connected between VDD and VSS under all circumstances | |
| 19 | VPP | P | Power Supply for OTP Programming | |
| 20 | VSH | C | Positive Source driving voltage | |
| 21 | VGH | C | Positive Gate driving voltage | |
| 22 | VSL | C | Negative Source driving voltage | |
| 23 | VGL | C | Negative Gate driving voltage | |
| 24 | VCOM | C | VCOM driving voltage |
