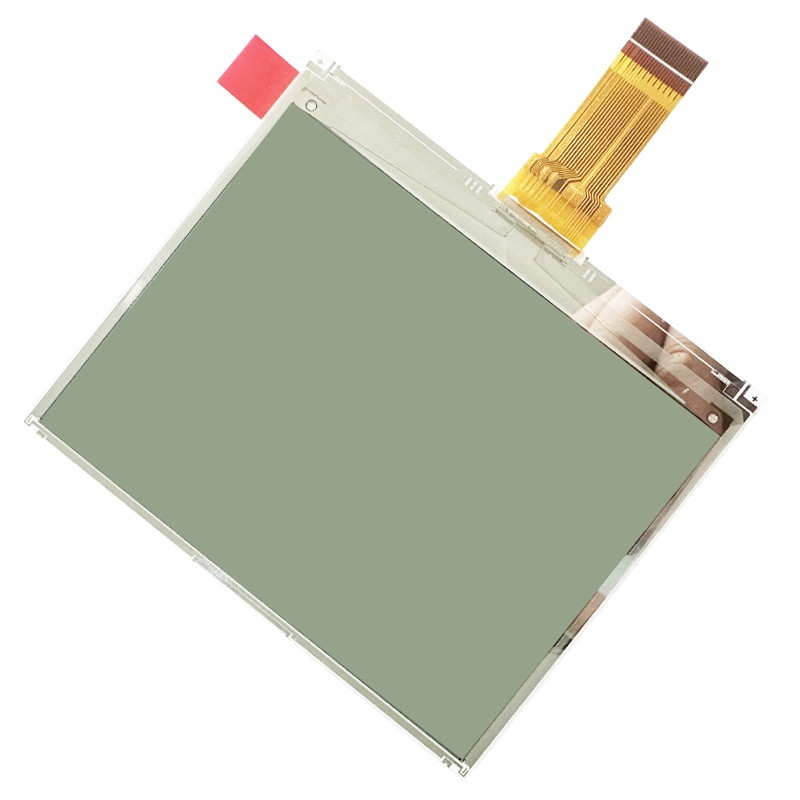

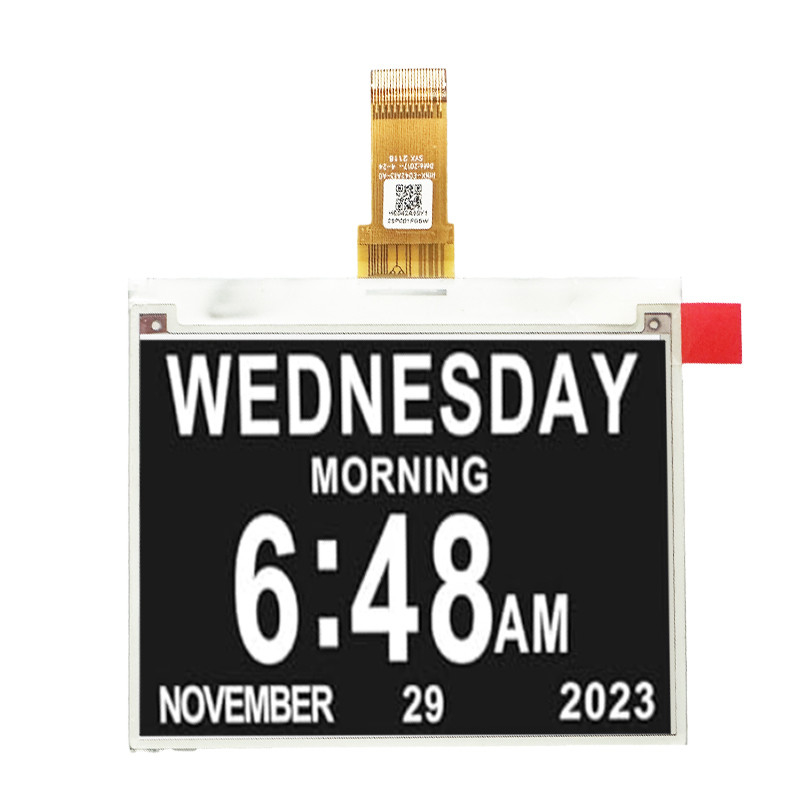

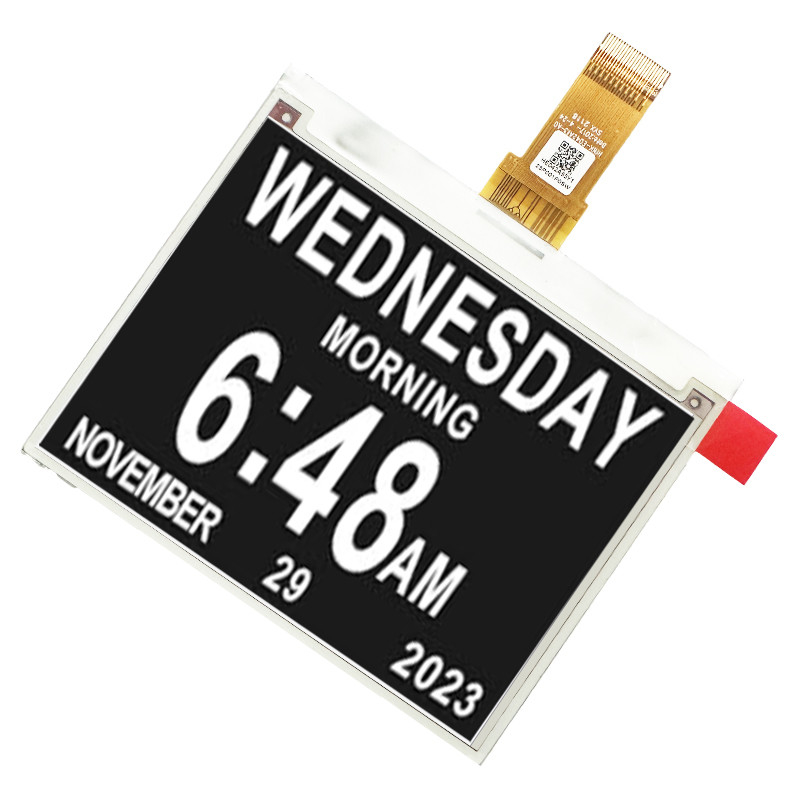

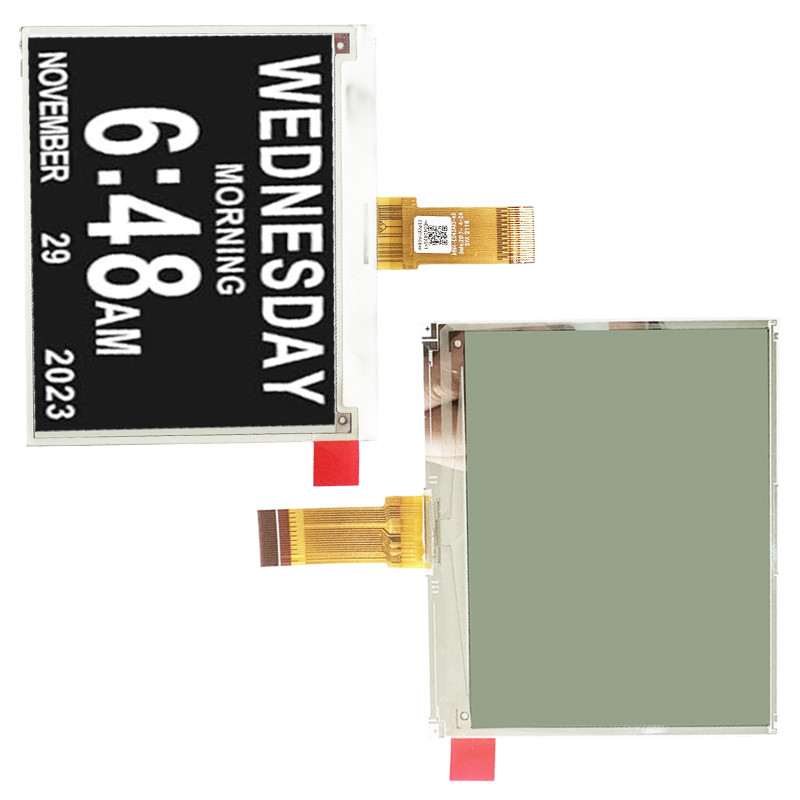

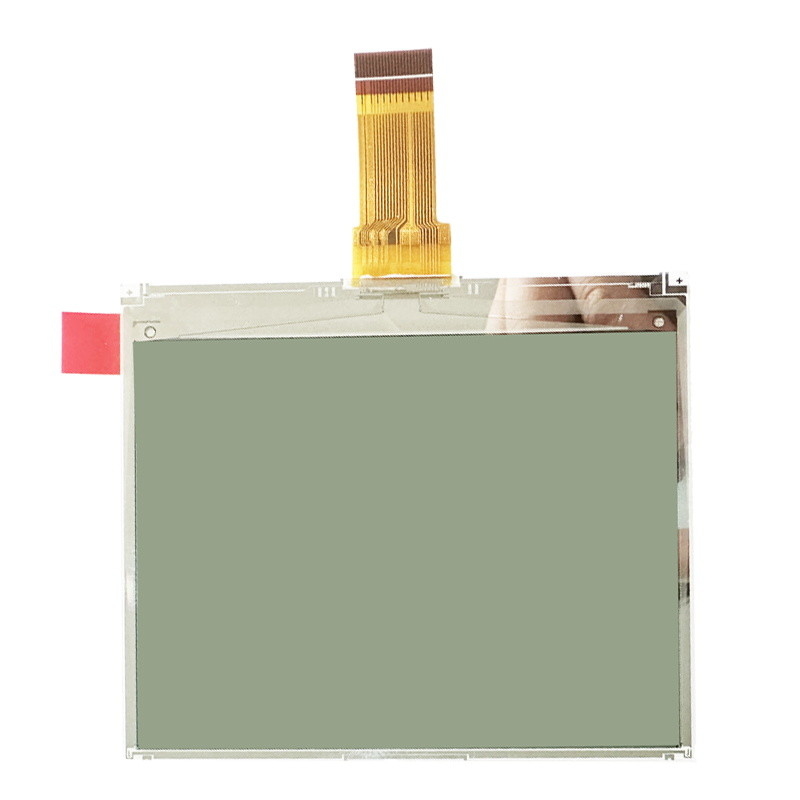

E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card

E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card

400x300 e ink touchscreen display

Static e ink touchscreen display

4.2 Inch e ink electronic paper display

Place of Origin:

Shenzhen,China

Brand Name:

RGH

Certification:

ISO9001/ISO14001

Model Number:

RSE0420N02-A0

Document:

Product Brochure PDF

Contact Us
Request A Quote
E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card
E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card
Product Details
Screen Size:
4.2 Inch
Display Resolution:
400(H)×300(V) Pixel
Active Area:
84.8(H)×63.6 (V) Mm
Pixel Pitch:
0.212×0.212 Mm
Pixel Configuration:
Square
Outline Dimension:
91.00(H)× 77.00(V) × 1.15(D) Mm
Weight:
15±0.5 G
Highlight:

400x300 e ink touchscreen display

,

Static e ink touchscreen display

,

4.2 Inch e ink electronic paper display

Payment & Shipping Terms
Minimum Order Quantity
3PCS
Price
Negotiable
Packaging Details
Standard Exportation Package
Delivery Time
3-5weeks
Payment Terms
L/C, T/T,Paypal
Supply Ability
3.5kk
RELATED PRODUCTS
Good price E Paper Module Display Black And White 1.54 Inch With SPI Interface 24pins online Video

E Paper Module Display Black And White 1.54 Inch With SPI Interface 24pins

Get Best Price
Good price E Ink Display Electronic Label Paper 3.52 Inch Flexible AM EPD online Video

E Ink Display Electronic Label Paper 3.52 Inch Flexible AM EPD

Get Best Price
Good price E Ink Display 2.13 Inches OEM Compact SPI 122x250 With Light Weight online Video

E Ink Display 2.13 Inches OEM Compact SPI 122x250 With Light Weight

Get Best Price
Good price E Paper Module 3.52 Inch 240x360 Resolution Electronic Display High Contrast Custom online Video

E Paper Module 3.52 Inch 240x360 Resolution Electronic Display High Contrast Custom

Get Best Price
Contact Us
86--075523210048
Contact Now
Product Description
1.General Description
RSE0420N02-A0 is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system
design. The4.2” active area contains400×300 pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit
contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and
border are supplied with each panel.
2 Features
400×300 pixels display
High contrast
High reflectance
Ultra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable display
Commercial temperature range
Landscape, portrait modes
Hard-coat antiglare display surface
Ultra Low current deep sleep mode
On chip display RAM
Low voltage detect for supply voltage
High voltage ready detect for driving voltage
Internal temperature sensor
10-byte OTP space for module identification
Serial peripheral interface available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
I2C signal master interface to read external temperature sensor/ built-in temperature sensor
3. Application
Electronic ShelfLabel System
E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card 0E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card 1E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card 2E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card 3
E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card 4Pin# Single Description Remark
1 NC No connectionand do not connect with otherNC pins NC Keep Open
2 GDR N-Channel MOSFET Gate Drive Control
3 RESE Current Sense Input forthe Control Loop
4 NC No connectionand do not connect with otherNCpins Keep Open
5 VSH2 Positive Source driving voltage
6 TSCL 12C Interface to digital temperature sensor Clock pin
7 TSDA I2C Interface to digital temperature sensorDate pin
8 BS1 Bus selection pin Note 6-5
9 BUSY Busy state outputpin Note 6-4
10 RES # Reset Note 6-3
11 D/C# Data/Command control pin Note 6-2
12 CS# Chip Selectinput pin Note 6-1
13 SCL serial clock pin(SPI)
14 SDA serial data pin(SPD)
15 VDDIO Power for interface logic pins
16 VCI Power Supply pin forthe chip
17 VSS Ground
18 VDD Core logic power pin
19 VPP Power Supply for OTPProgramming
20 VSHI Positive Souroe driving voltage
21 VGH Power Supply pin for Positive Gate driving voltage and
VSH
22 VSL Negative Source driving voltage
23 VGL Power Supply pin for Negative Gate driving voltage,
VCOM and VSL
24 VCOM VCOM drivingvoltage

E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card 5





E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card 6E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card 7

E Ink Display Electronic Paper4.2 Inch Static 400x300 For Conference Name Card 8
