SE0266N01-A0
Document:
Video
Featuring a black and white display, this E-paper display is perfect for applications where high contrast and readability are paramount. This E-paper display offers a clear, easy-to-read display that is ideal for a range of applications, including e-readers, smartwatches, and digital signage.
The E-ink Epaper Display is the perfect choice for applications where touch screen functionality is not required. Its simple, intuitive interface allows for easy integration into a wide range of devices, making it ideal for use in a variety of applications.

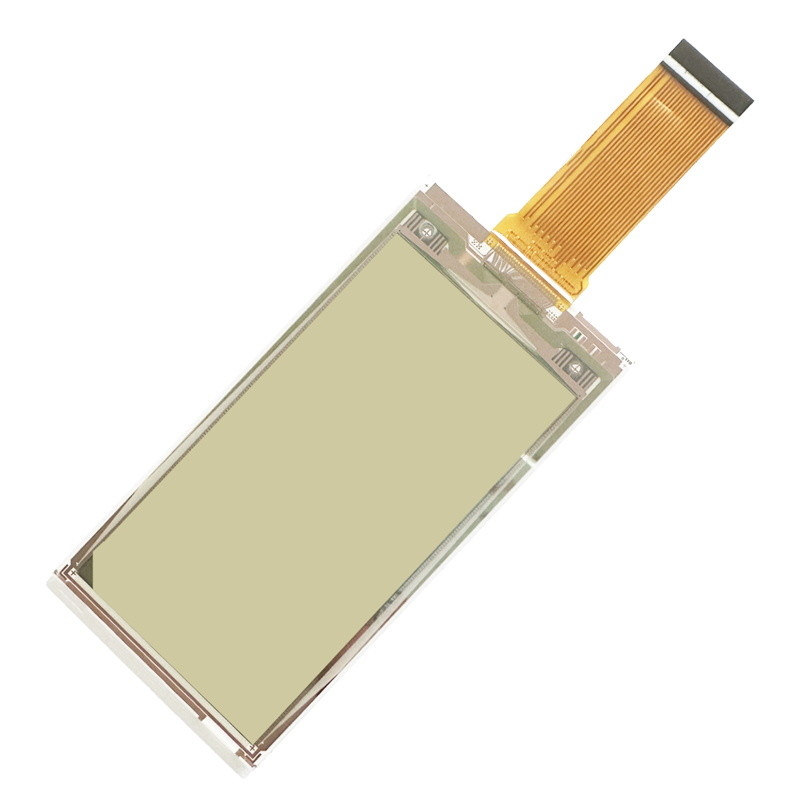

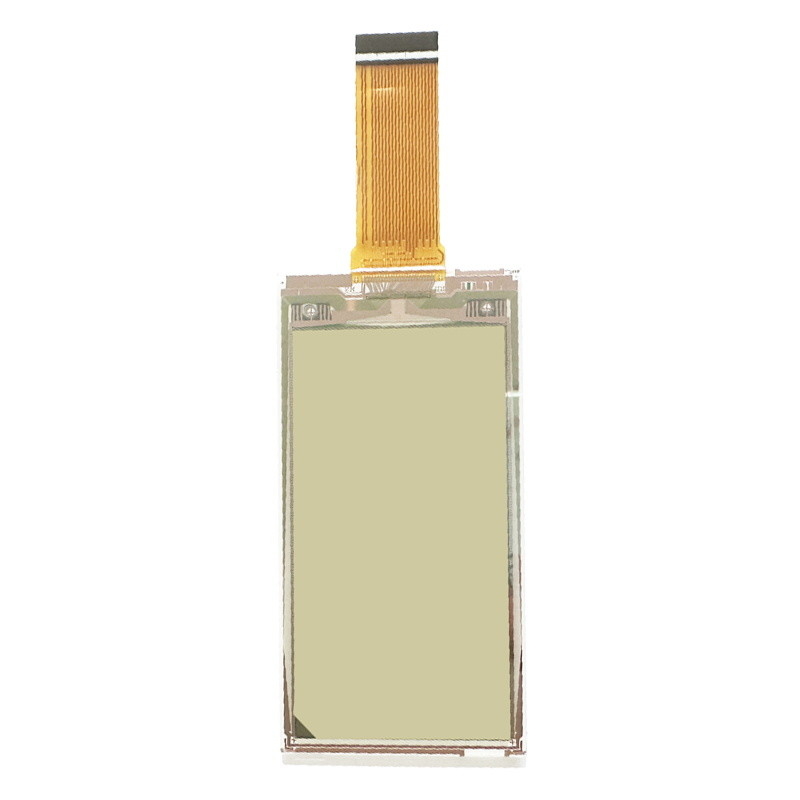

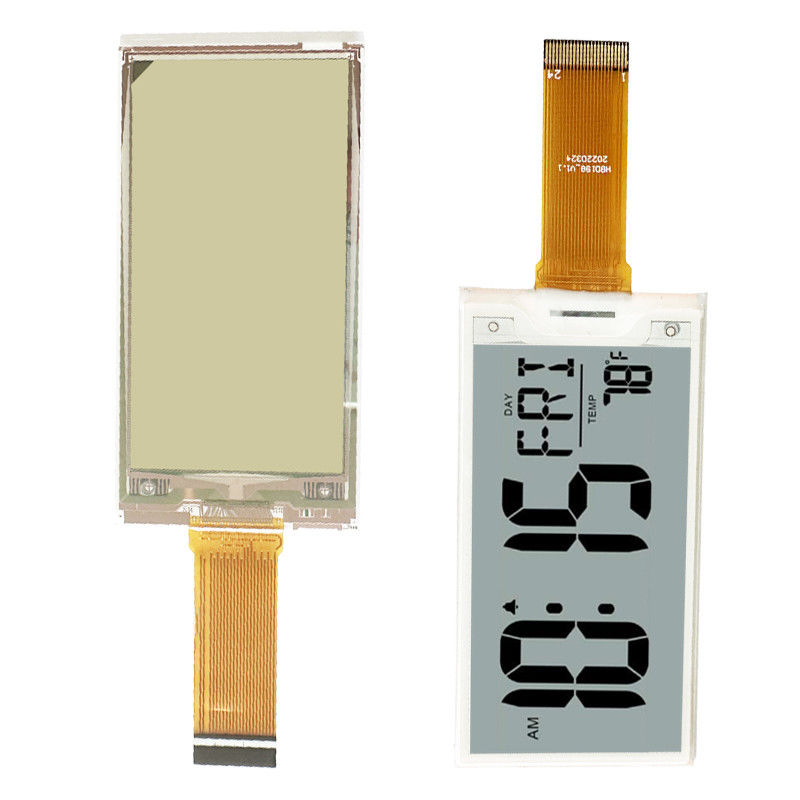

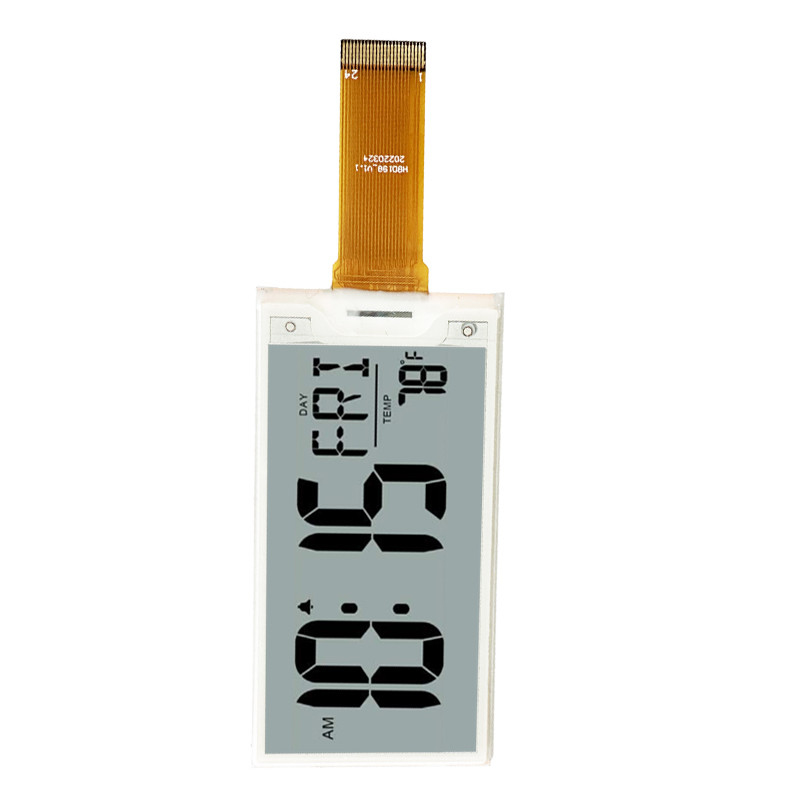

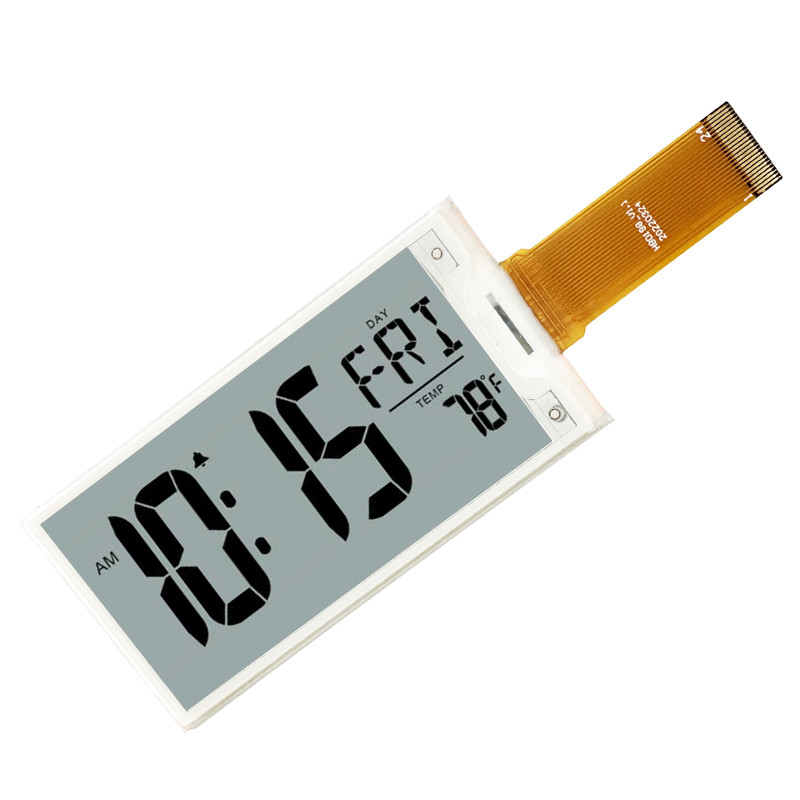

With an outline dimension of 36.3*71.8*1.14 and an active area of 30.704*60.088, this E-paper display is both compact and versatile, making it an ideal solution for a wide range of applications.
The E-ink Epaper Display is perfect for creating high-quality, low-power displays that are both easy to read and easy to use. Whether you're looking for a display for your e-reader or a digital signage solution, this E-paper display is the perfect choice.
| No. | Name | VO | Description | Remark |
| 1 | NC | Do not connect with other NC pins | ||
| 2 | GDR | 0 | N-Channel MOSFET Gate Drive Control | |
| 3 | RESE | I | Current Sense Input for the Control Loop | |
| 4 | NC | / | Do notconnect with other NC pins | |
| 5 | VDHR | C | Positive source drivervoltage for Source | |
| 6 | TSCL | 0 | FC Interface to digital temperature sensor Clock pin | |
| 7 | TSDA | UO | FC Interface to digital temperature sensor Data pin | |
| 8 | BS | Bus Interface selection pin | Note 5-4 | |
| 9 | BUSYN | 0 | Busy state output pin | Note 5-3 |
| 10 | RSTN | Reset signal input.Active Low. | ||
| 11 | N/C | Data /Command control pin | Note 5-2 | |
| 12 | CS# | Chip select input pin | Note 5-1 | |
| 13 | SCL | Serial Clock pin (SPl) | ||
| 14 | SCA | Seria Data pin (SPI) | ||
| 15 | VDD | P | Power Supply for interface logic pins. | |
| 16 | VDD | P | Power Supply for the chip | |
| 17 | VSs | P | Ground | |
| 18 | VDDD | C | Core logic powerpin VDDD can be regulated intemally fromVDD.A capacitor should be connected between VDD and VSS under all circumstances |
|
| 19 | VPP | P | Power Supply for OTP Programming | |
| 20 | VSH | C | Positive Source driving voltage | |
| 21 | VGH | C | Positive Gate driving voltage | |
| 22 | VSL | C | Negative Source drivingvoltage | |
| 23 | VGL | C | Negative Gate driving voltage | |
| 24 | VCOM | C | VCOM driving voltage |
The RGH SE0266N01-A0 E-paper display is designed for a variety of product application occasions and scenarios. It can be used in e-readers, electronic shelf labels, smart wearables, smart home devices, and many more. The E-paper display technology used in this product provides an excellent reading experience with a paper-like display that is easy on the eyes.
The E-paper display is perfect for e-readers, where users can read books, magazines, articles, and other documents. The E-paper display provides a comfortable reading experience, even in bright sunlight. The RGH SE0266N01-A0 E-paper display can also be used in electronic shelf labels, where it can be easily updated with new prices and product information.
The RGH SE0266N01-A0 E-paper display can be used in smart wearables like smartwatches and fitness bands. The E-paper display provides a low-power display that can show notifications, time, and other information. The E-paper display is also perfect for smart home devices like smart thermostats and smart doorbells.
The RGH SE0266N01-A0 E-paper display has an interface type of SPI and a PIN number of 24pins. This makes it easy to integrate with other electronic devices. The E-paper display can be easily connected to a microcontroller or other embedded systems.
