Place of Origin:
Shenzhern,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

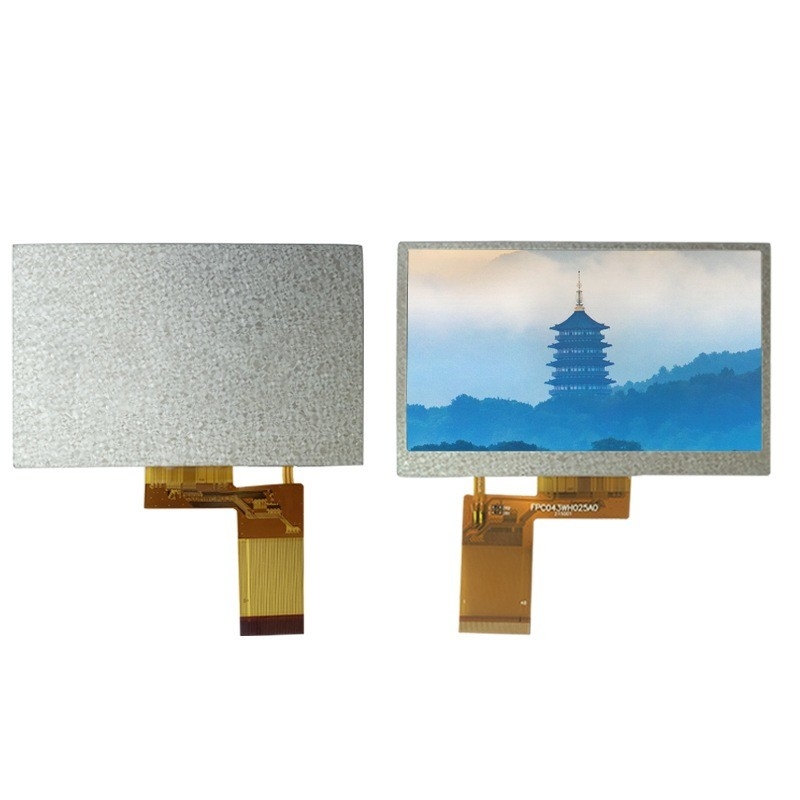

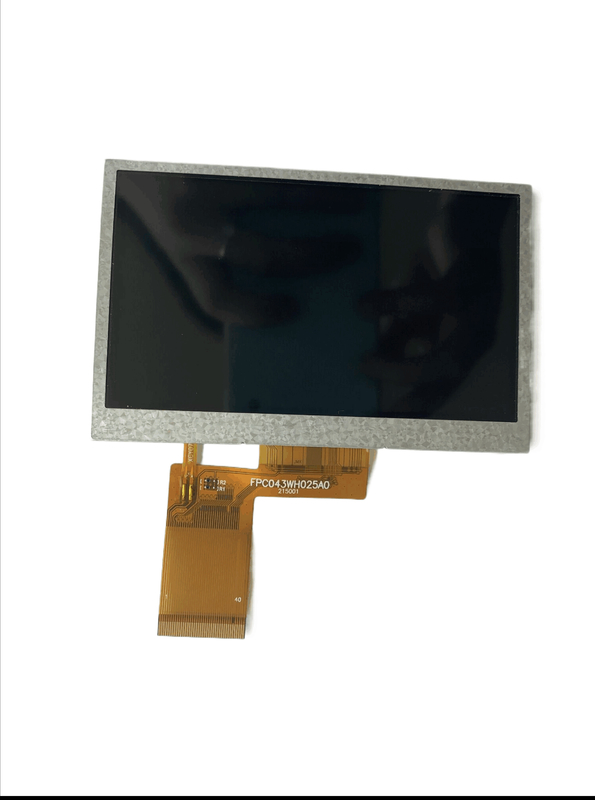

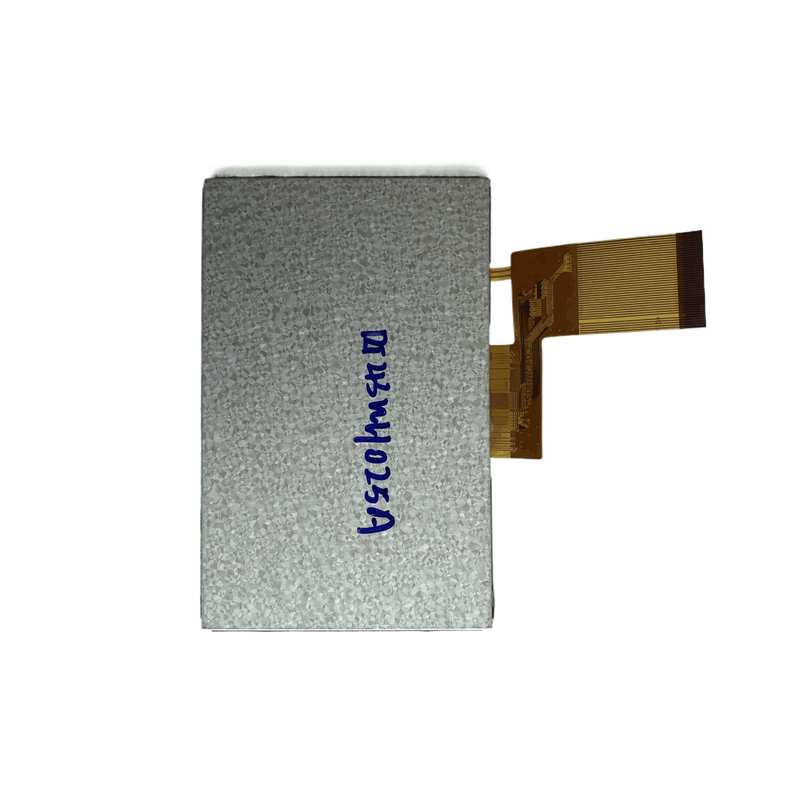

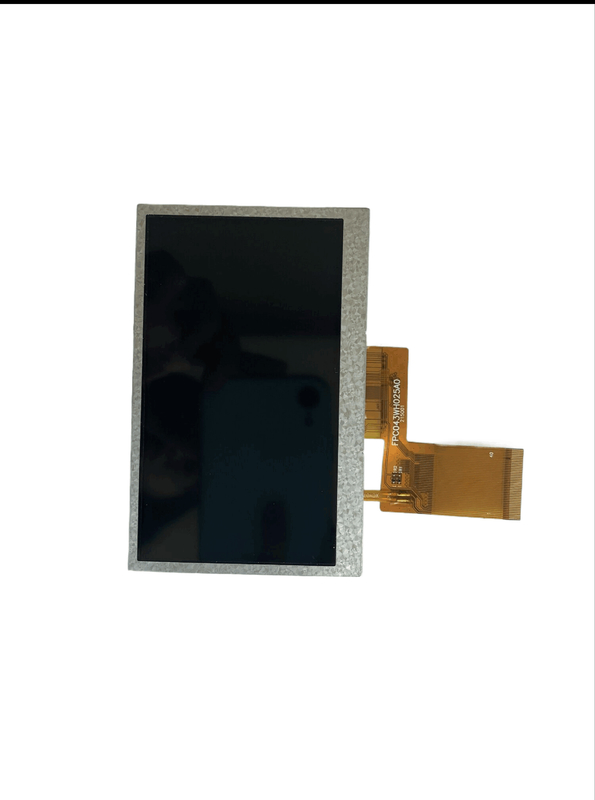

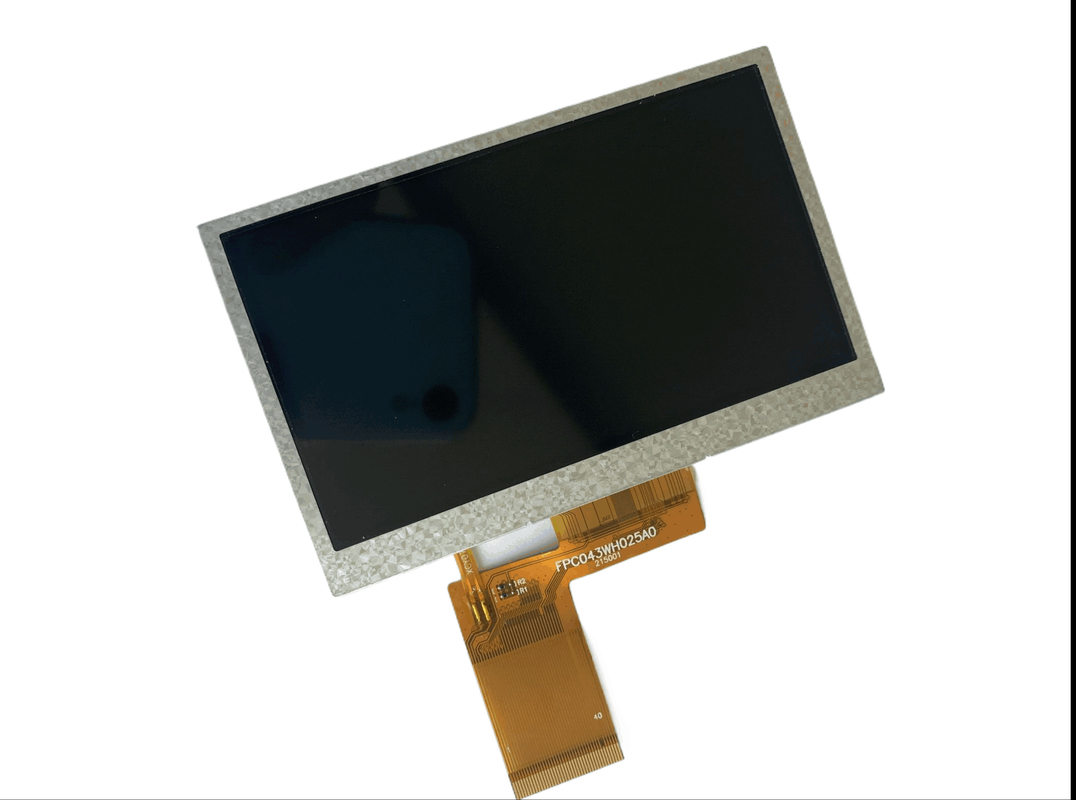

RT43WH025A
Document:
| Item | Specification |
|---|---|
|
Size |
4.3 inch |
|
Display mode |
Transmissive TFT
|
|
Part NO. |
RT43WH025A
|
|
Resolution |
480*272 |
|
Outline size |
105.40(H) X 67.10(W) X3.05 (T) mm
|
|
Active area |
95.04(W) X53.86 (H) mm
|
|
View direction |
12:00 o’clock
|
|
Piexl pitch |
480X(RGB)X272
|
|
Interface |
RGB |
|
Backlight |
7LEDS |
|
Surface luminance |
200cd/m2 |
|
Logic voltage |
2.5V-3.3V |
|
Operating temperature |
-20℃~70℃
|
|
Storage temperature |
-30℃~80℃
|
| NO | Symbo | Leve | Function | |
| 1 | LEDK | LED,cathode | ||
| 2 | LEDA | LED,anode | ||
| 3 | GND | VSs | Ground. | |
| 4 | VCC | 2.8V(typ | Power supply | |
| 5-12 | R0-R7 | H/L | Data Bus.Serial 8-bitdata input selection. | |
| 13-20 | G0-G7 | H/L | Data Bus.Serial 8-bit data input selection | |
| 21-28 | B0-B7 | H/L | Data Bus.Serial 8-bit data input selection | |
| 29 | GND | VSs | Ground. | |
| 30 | CLK | Sample clock. | ||
| 31 | DISP | Display Mode. | ||
| 32 | HSYNC | Horizontal synchronizing signal | ||
| 33 | VSYNC | Verticalsynchronizing signal. | ||
| 34 | DEN | Data Enable. | ||
| 35 | NC | No Connection | ||
| 36 | GND | VSs | Ground. | |
| 37-40 | NC | NC | ||
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
