Product Specification
| Size |
1.09inch |
| Resolution |
240(RGB)X240
|
| Backlight Type |
LED |
| LCD Type |
Transmissive TFT |
| Driving IC |
GC9A01
|
| Brightness |
350cd/m2 |
| Contrast ratio |
1000:1 |
| Active Area |
27.79(H) X27.79 (V)
|
About this item

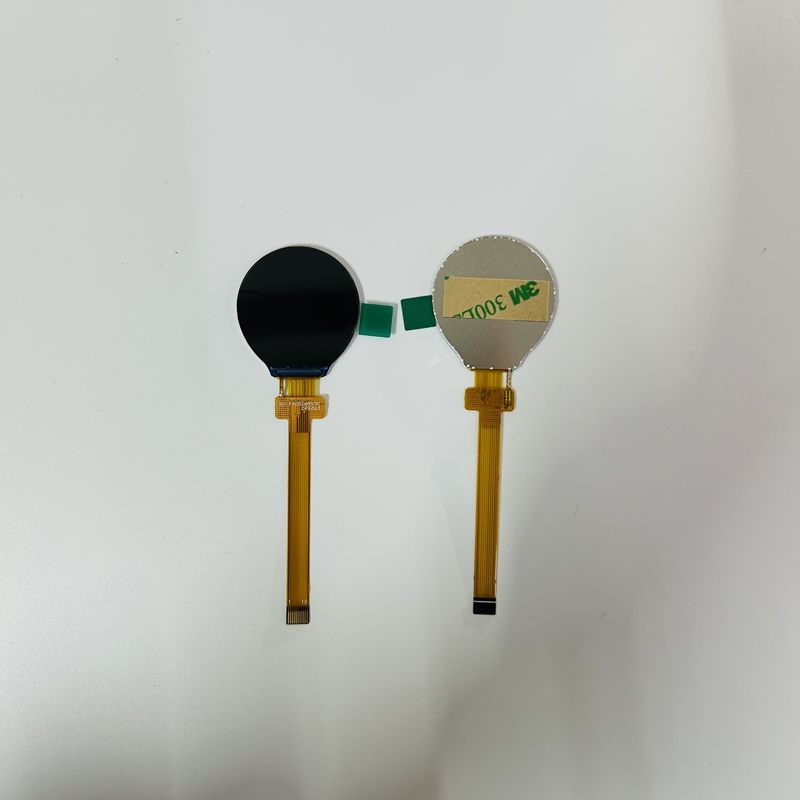

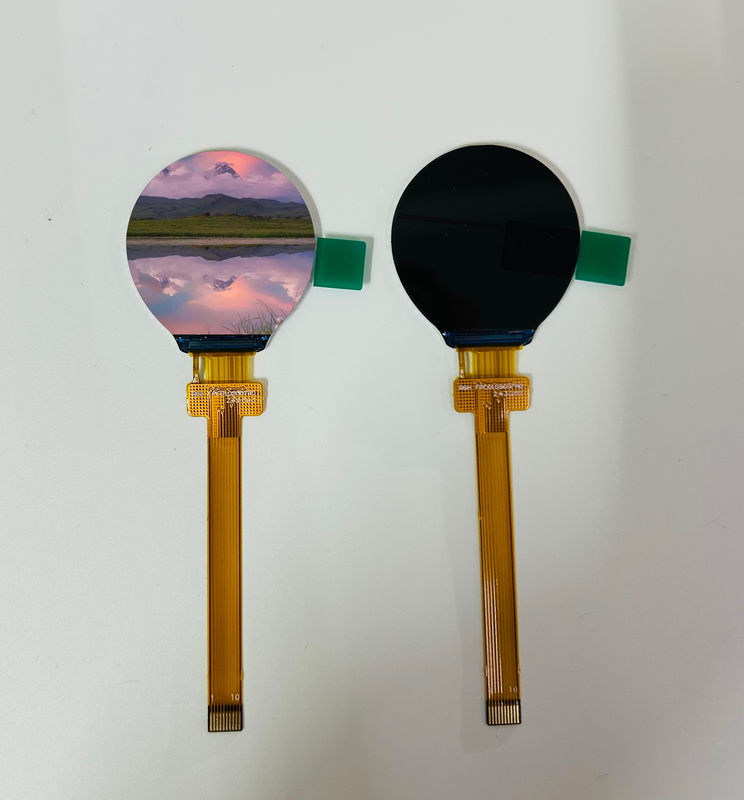

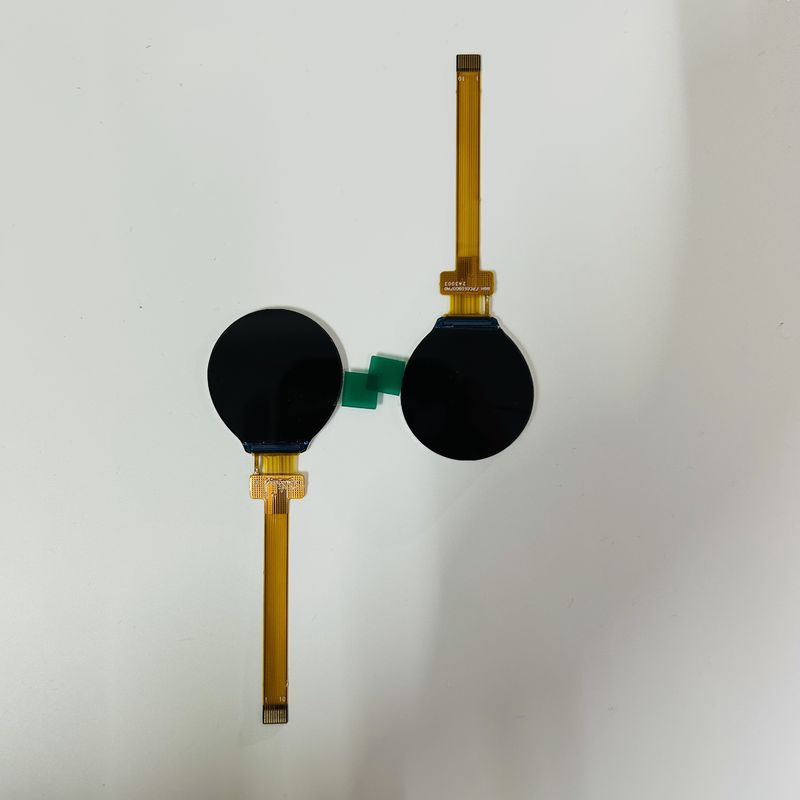

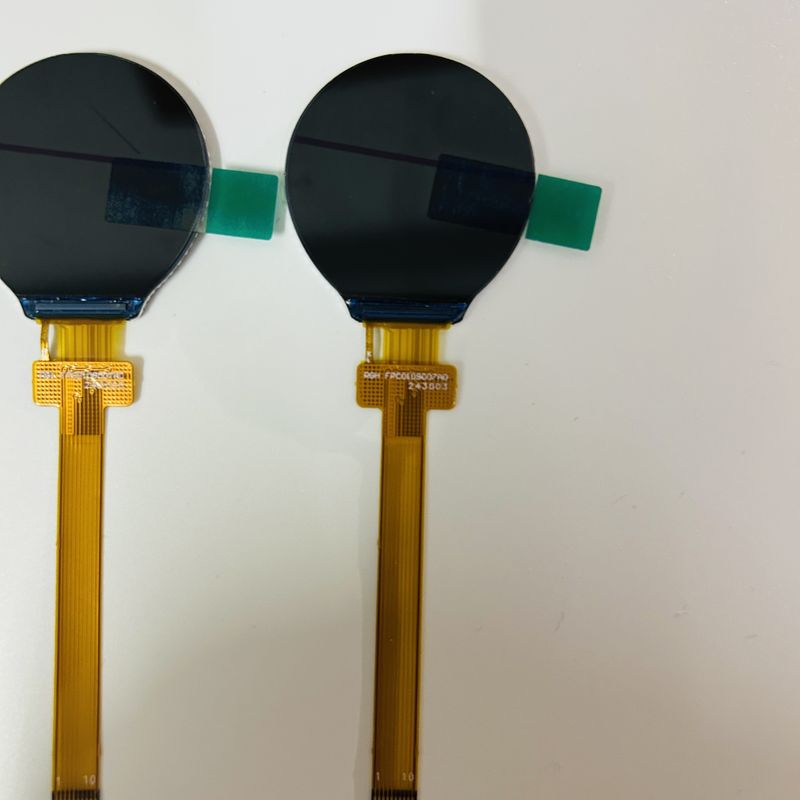

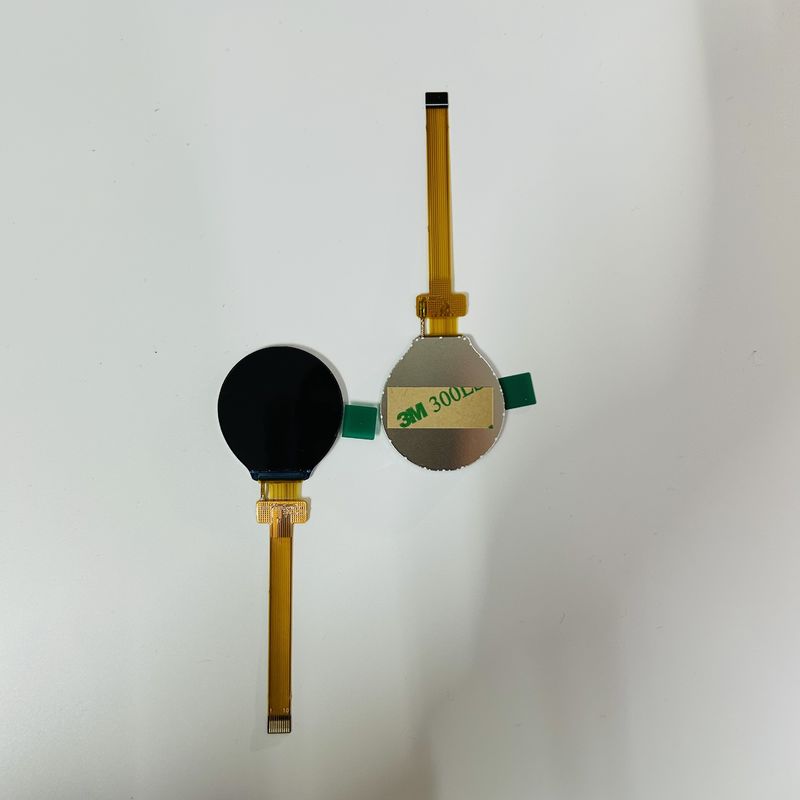

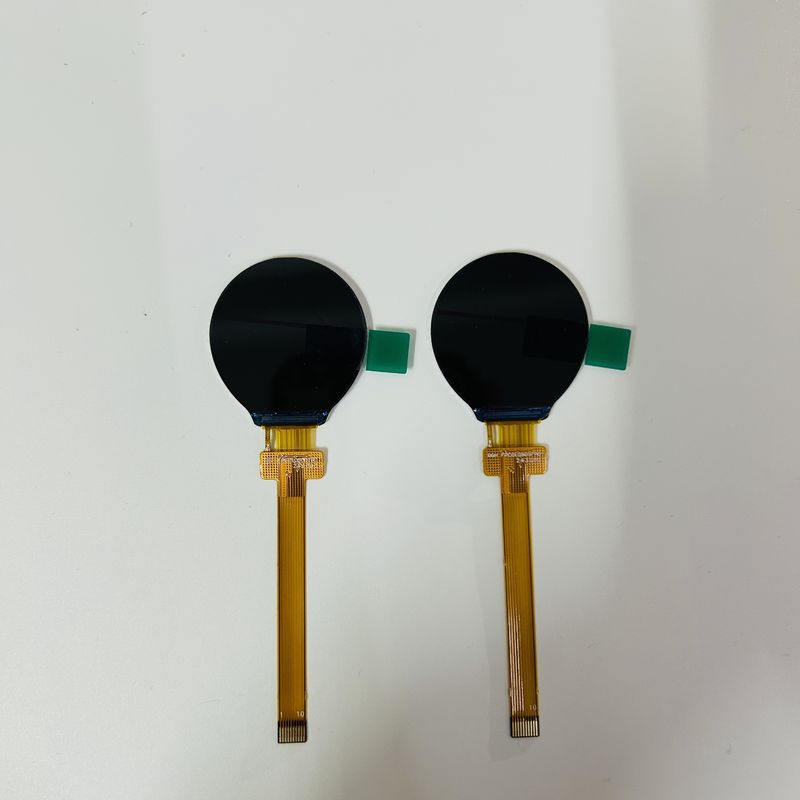

This 1.09-inch IPS TFT LCD module offers a vivid and compact display solution for modern electronic devices. With a 240(RGB) x 240 pixel resolution, it ensures sharp and colorful image rendering in a small footprint.
Featuring LED backlighting and a transmissive TFT panel, the display delivers enhanced brightness at 350 cd/m² and a 1000:1 contrast ratio, making it suitable for both indoor and outdoor viewing conditions.
Powered by the GC9A01 driver IC, the module provides reliable performance and seamless integration with a wide range of microcontroller platforms. Its active area of 27.79mm (H) x 27.79mm (V) makes it ideal for wearable devices, compact instruments, smart home controllers, and industrial interfaces where space is limited but clarity is critical.
Interface Pin Definition
| NO. |
Symbol |
Level |
Function |
| 1 |
LCD-VDD |
3.0V |
Power supply. |
| 2-3 |
GND |
|
Ground |
| 4 |
LEDK |
|
LED,cathode. |
| 5 |
LEDA |
|
LED,anode. |
| 6 |
RS |
|
command selection pin in 4-line serial interface |
| 7 |
LSCK |
|
This pin is used to be serial interface clock |
| 8 |
RESET |
|
Reset signal. |
| 9 |
LSDA |
|
SPl interface input/output pin. |
| 10 |
CS |
|
-Chip selection pin |
External Dimensions
