Product Specification
| Size |
1.09inch |
| Resolution |
40(RGB)X240
|
| Backlight Type |
LED |
| LCD Type |
Transmissive TFT |
| Driving IC |
GC9A01
|
| Brightness |
350cd/m2 |
| Contrast ratio |
1000:1 |
| Active Area |
89.76(W) x83.49(H) mm |
About this item

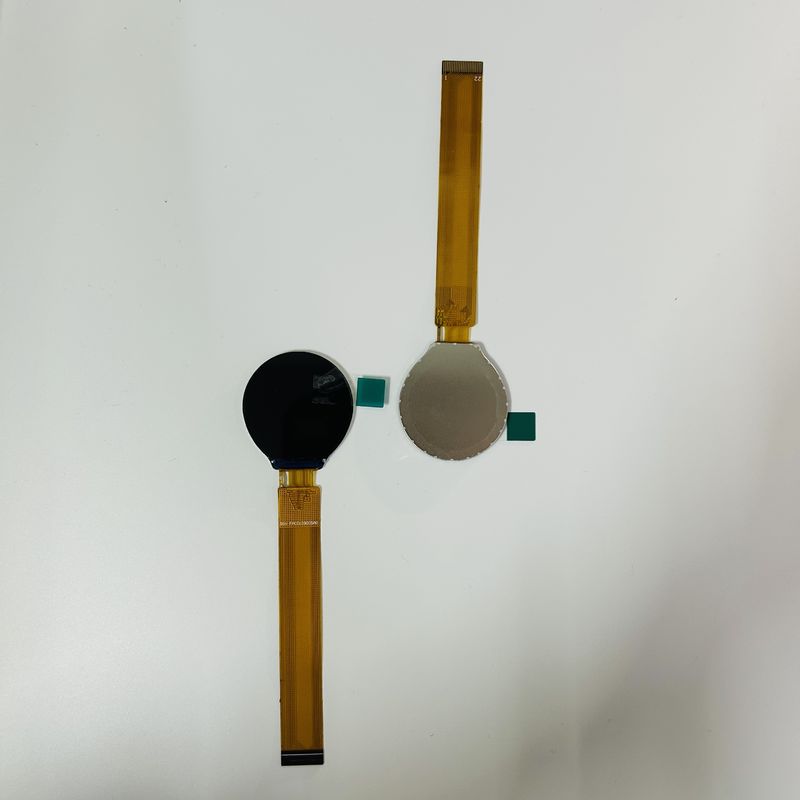

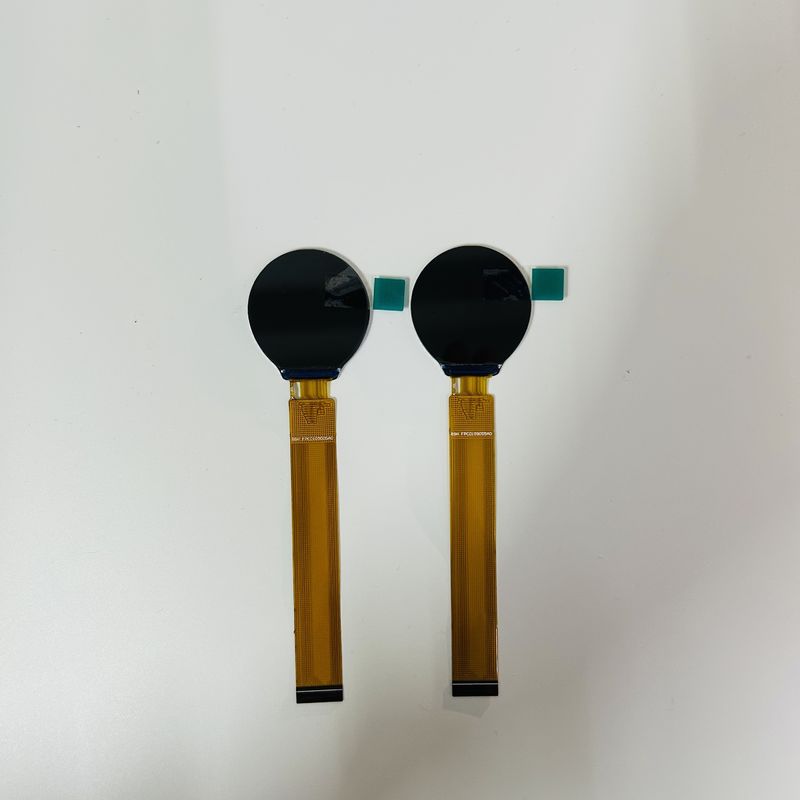

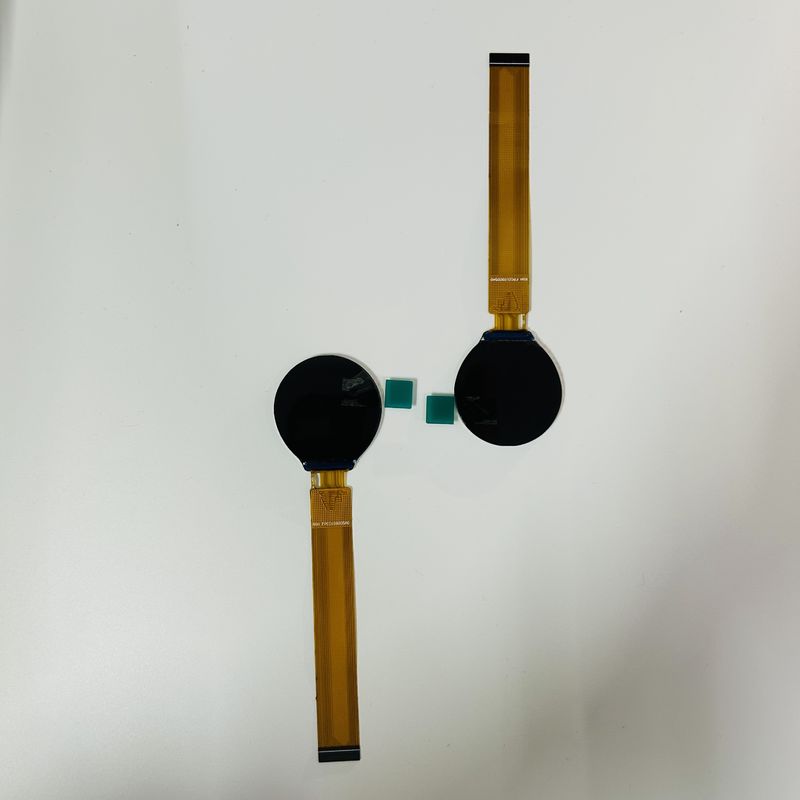

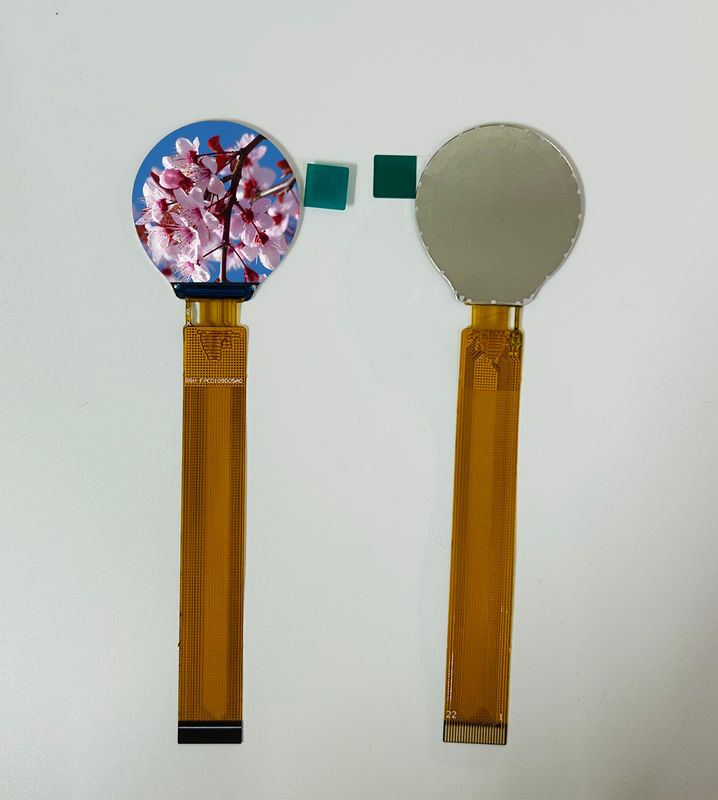

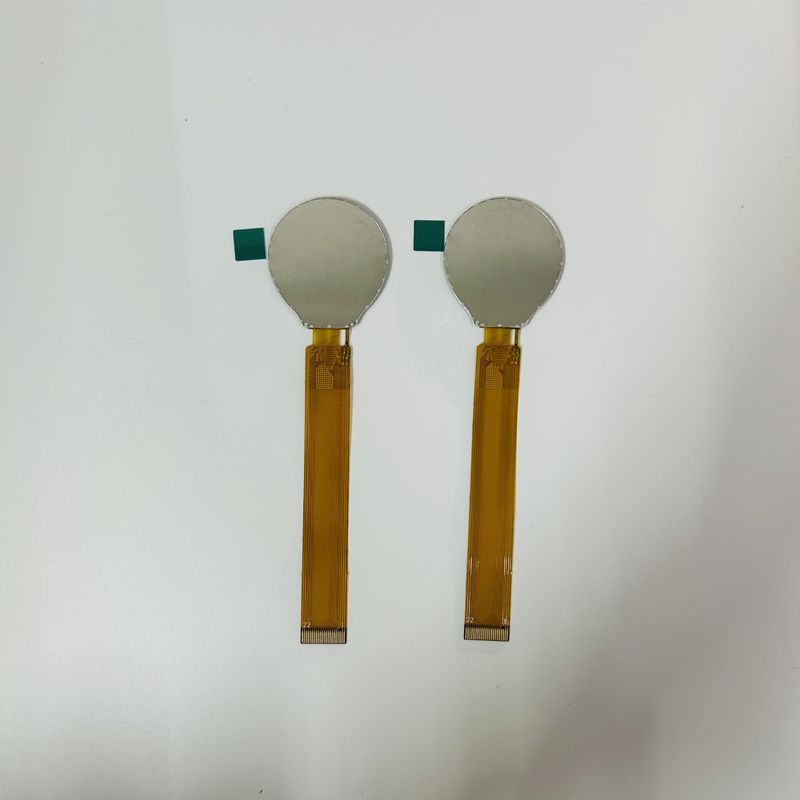

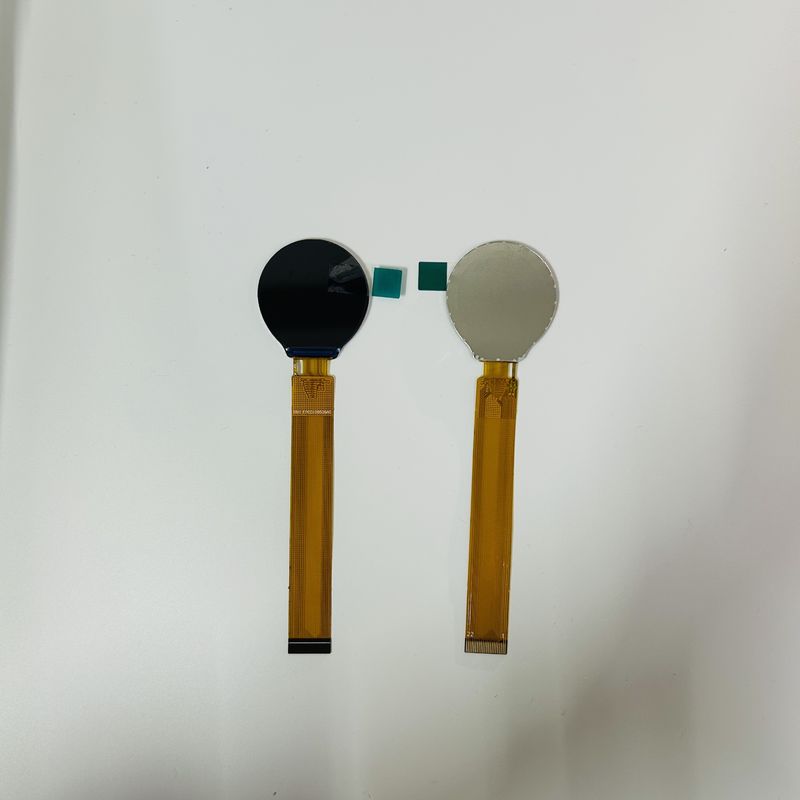

This 1.09-inch TFT LCD display is a compact and high-performance visual solution designed for a variety of embedded and handheld applications. With a resolution of 240 x 40 (RGB) pixels, it delivers crisp and vibrant images suitable for small form-factor devices.
Equipped with a GC9A01 driving IC and LED backlight, the display offers 350 cd/m² brightness and a 1000:1 contrast ratio, ensuring excellent visibility and contrast in various lighting environments. The transmissive TFT LCD technology enhances clarity and color performance, making it ideal for both indoor and outdoor use.
The active display area measures 89.76mm (W) × 83.49mm (H), providing a wide viewing surface in a compact footprint. This module is suitable for smart wearables, medical devices, industrial control panels, and other applications where display quality and size matter.
Interface Pin Definition
| NO. |
Symbol |
Level |
Function |
| 1 |
LEDA |
|
LED,anode. |
| 2 |
LEDK |
|
LED,cathode. |
| 3-4 |
NC |
|
NC |
| 5 |
IOVCC |
1.8V/2.8V |
Power supply. |
| 6 |
VCC |
2.8V(typ) |
Power supply. |
| 7-14 |
DB7-DB0 |
|
data bus. |
| 15 |
RD |
|
-Read enable in 8080 MCU parallel interface. |
| 16 |
WR |
|
-Write enable in MCU parallel interface. |
| 17 |
RS |
|
-Display data/command selection pin in parallel
interface. |
| 18 |
CS |
|
-Chip selection pin |
| 19 |
TE |
|
-Tearing effect signal is used to synchronize MCU to
frame memory |
| 20 |
RESET |
|
-This signal will reset the device and it must be
applied to properly |
| 21-22 |
GND |
|
GND |
External Dimensions
