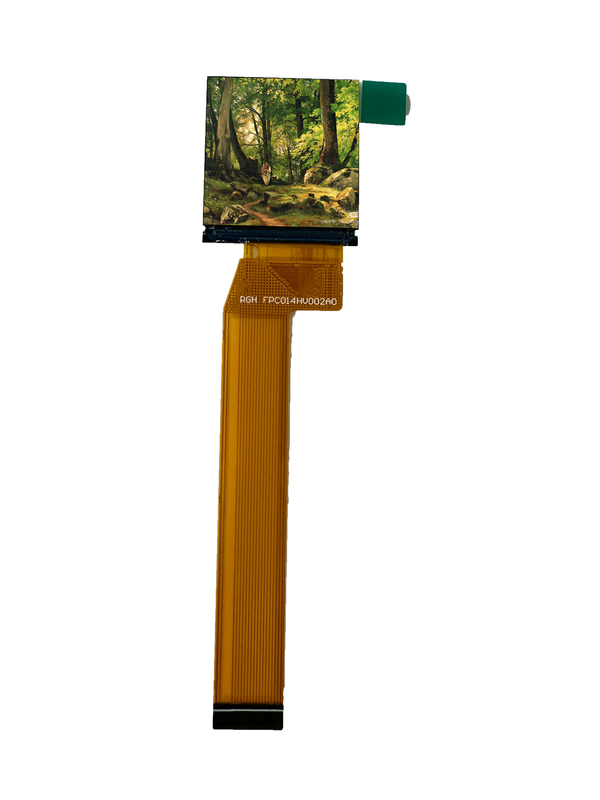

1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics

1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics

1.4 Inch IPS TFT LCD Display

22pins IPS TFT LCD Display

Place of Origin:

Shenzhen,China

Brand Name:

RGH

Certification:

ISO9001/ISO14001

Model Number:

RT14HV002C

Document:

Product Brochure PDF

Contact Us
Request A Quote
1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics
1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics
Product Details
Size:
1.4 Inch
Resolution:
320（RGB）X320
Active Area:
24.96(H) X24.96 (V) Mm
Storage Temperature:
-30°C To 80°C
Operating Temperature:
-20℃~70℃
Backlight:
3 LEDs
Driving IC:
ST7365
Brightness:
750 Cd/m²
Viewing Angle:
All O'clock
Outline Dimensions:
27.50 (H) X30.64(V) X1.51(T) Mm
Response Time:
30ms
Contrast Ratio:
900:1
Interface:
MCU
Power Consumption:
210 MW
Highlight:

1.4 Inch IPS TFT LCD Display

,

22pins IPS TFT LCD Display

Payment & Shipping Terms
Minimum Order Quantity
3PCS
Price
Negotiable
Packaging Details
Standard Exportation Package
Delivery Time
3-5weeks
Payment Terms
L/C, T/T,Paypal
Supply Ability
3.5kk
RELATED PRODUCTS
Good price ODM 128x128 TFT Square LCD Monitor Display panel 1.3 Inch 700cd/m² online Video

ODM 128x128 TFT Square LCD Monitor Display panel 1.3 Inch 700cd/m²

Get Best Price
Good price 3.95 Inch Capacitive Touchscreen TFT LCD with 400 Cd/M2 Brightness and -30C-80C Operating Temperature online Video

3.95 Inch Capacitive Touchscreen TFT LCD with 400 Cd/M2 Brightness and -30C-80C Operating Temperature

Get Best Price
Good price 1.4 Inch Digital Watch Full HD TFT Display Screen IPS Small 240x240 St7789 online Video

1.4 Inch Digital Watch Full HD TFT Display Screen IPS Small 240x240 St7789

Get Best Price
Good price 4 Inch 720x720 Square LCD Display Panel TFT Module MIPI Interface ST7703-V1-G5-D online Video

4 Inch 720x720 Square LCD Display Panel TFT Module MIPI Interface ST7703-V1-G5-D

Get Best Price
Contact Us
86--075523210048
Contact Now
Product Description

1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics 01.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics 11.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics 2

NO. Symbol Leve Function
1 LEDA   LED,anode
2 LEDK   LED,cathode
3-5 NC   NC
6 VCC 2.8V system voltage
7-14 DB7-DB0   data bus.
15 RD   -Read enable in 8080 MCU parallel interface
16 WR   -Write enable in MCU parallel interface
17 RS   -Display data/command selection pin in parallel
interface
18 CS   -Chip selection pin
19 TE   TE
20 RESET   This signal will reset the device and it must be
applied to properly
21-22 GND   Ground



1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics 3 1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics 4

1.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics 51.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics 61.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics 71.4 Inch 320X320 IPS TFT LCD Display with 22pins For Medical Digital Consumer Electronics 8

Custom LCD FAQ



1. Are you a factory or a trading company?

we are a high-tech manufacturer specializing in the R&D, production, and sales of LCD and LCM since 2011. At present, we have two factories in Dongguan.




2.What are our main products?

Providing One-stop Liquid Crystal Display and LCM Series, such as COG, COB, ) Customized LCD Series, including Touch Panels




3.What kind of certification do we have?

Our factories have passed ISO9001, 14001 and other certifications.





4. What size LCD display can you provide?

0.96 inch to 21.5 inch TFT LCD display we can provide.
