Place of Origin:
Shenzhen,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:

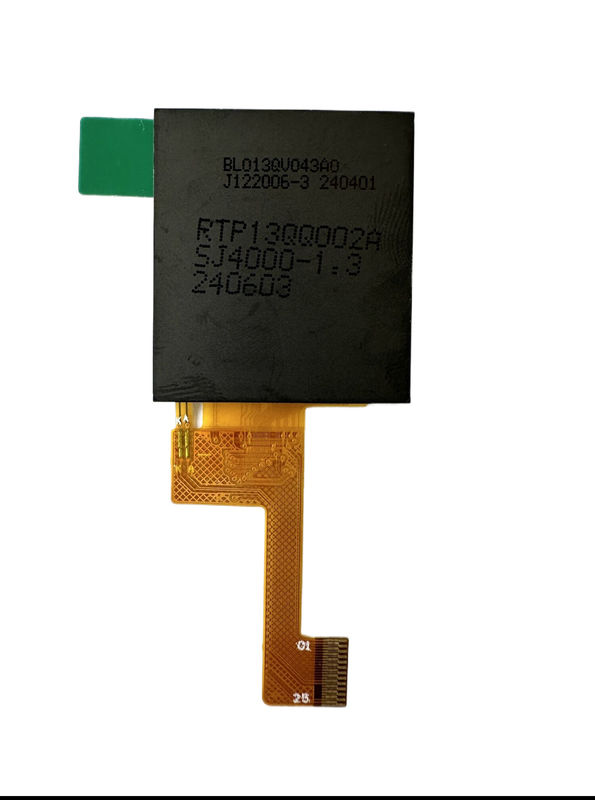

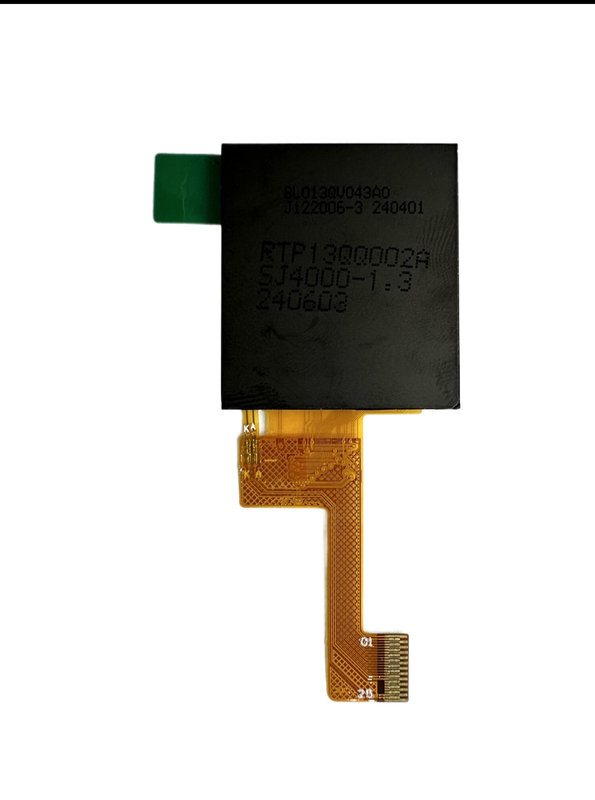

RT13QQ002A
Document:
Video
| NO. | Symbo | Level | Function |
| 1 | VCC | system voltage | |
| 2 | GND | Ground | |
| 3 | RESET | This signal will reset the device and it must be applied to properly |
|
| 4 | CS | -Chip selection pin | |
| 5 | RS | -Display data/command selection pin in parallel interface |
|
| 6 | WR | -Write enable in MCU parallel interface | |
| 7 | RD | -Read enable in 8080 MCU parallel interface | |
| 8-15 | DB0-DB7 | data bus. | |
| 16 | LEDA | LED,anode | |
| 17 | LEDK | LED,cathode | |
| 18-22 | NC | NC | |
| 23-24 | GND | Ground | |
| 25 | TE | TE |
|
|
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
