Place of Origin:
Shenzhern,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:
RTP40WV091A
Document:
Video

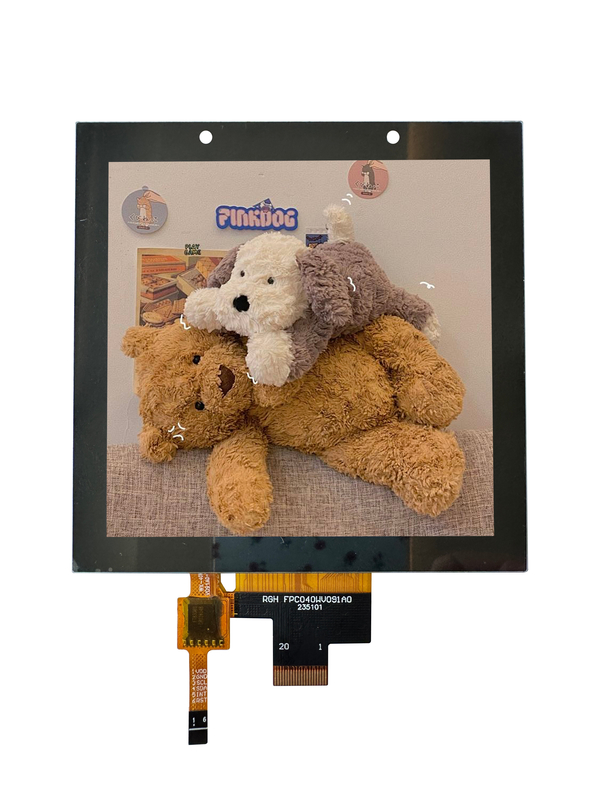

| Item | Specification |
|---|---|
|
Size |
3.95inch |
|
Display mode |
Transmissive TFT
|
|
Part NO. |
RTP40WV091A
|
|
Resolution |
480*480 |
|
Outline size |
84.40 (H) X84.40(V) X3.67(T) mm
|
|
Active area |
71.86(H) X70.28(V)
|
|
View direction |
ALL o’clock
|
|
Piexl pitch |
480(RGB)X480
|
|
Interface |
MIPI |
|
Backlight |
8LEDS |
|
Surface luminance |
400cd/m2 |
|
Logic voltage |
2.5V-3.3V |
|
Operating temperature |
-20℃~70℃
|
|
Storage temperature |
-30℃~80℃
|
| NO | Symbol | Leve | Function | |
| 1 | GND | Ground | ||
| 2 | D0N | MIPI DSI differential data pair. | ||
| 3 | D0P | MIPI DSI differential data pair | ||
| 4 | GND | Ground | ||
| 5 | CLKN | MIPI DSI differential clock pair. | ||
| 6 | CLKP | MIPI DSI differential clock pair. | ||
| 7 | GND | Ground | ||
| 8 | D1N | MIPI DSI differential data pair. | ||
| 9 | D1P | MIPI DSI differential data pair | ||
| 10-11 | GND | Ground | ||
| 12 | RESET | RESET.PIN | ||
| 13 | TE | TE-PIN | ||
| 14 | NC | NC | ||
| 15 | GND | Ground | ||
| 16 | NC | NC | ||
| 17 | VDD | Power setting | ||
| 18 | IOVCC | Power setting | ||
| 19 | LEDA | LED anode | ||
| 20 | LEDK | LED cathode | ||
|
|
Custom LCD FAQ
1. Are you a factory or a trading company?
we are a high-tech manufacturer specializing in the R&D, production, and sales of LCD and LCM since 2011. At present, we have two factories in Dongguan.
2.What are our main products?
Providing One-stop Liquid Crystal Display and LCM Series, such as COG, COB, ) Customized LCD Series, including Touch Panels
3.What kind of certification do we have?
Our factories have passed ISO9001, 14001 and other certifications.
4. What size LCD display can you provide?
0.96 inch to 21.5 inch TFT LCD display we can provide.
