RT35DV001A
Document:

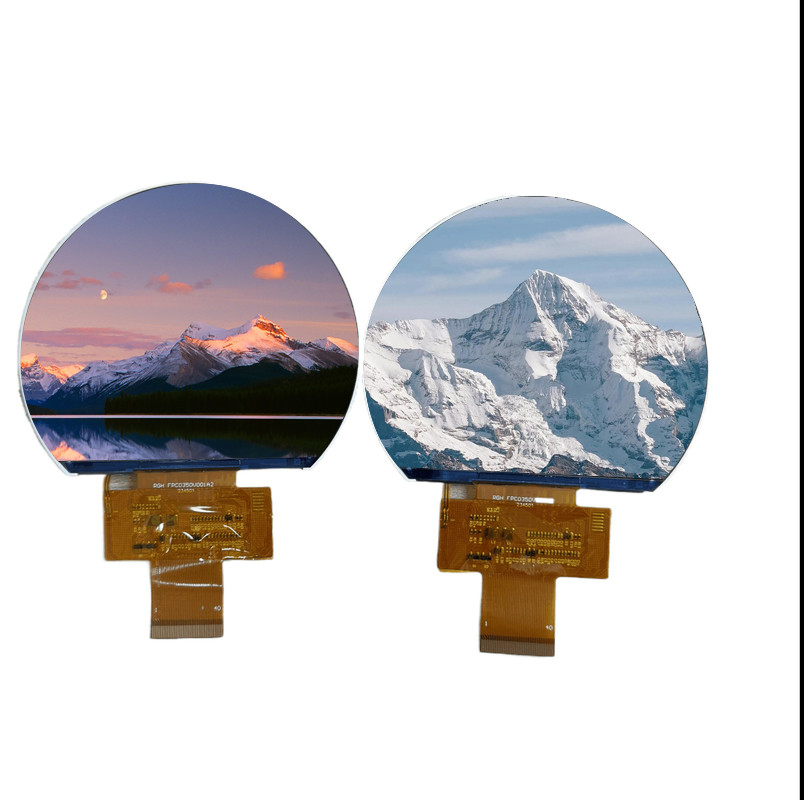

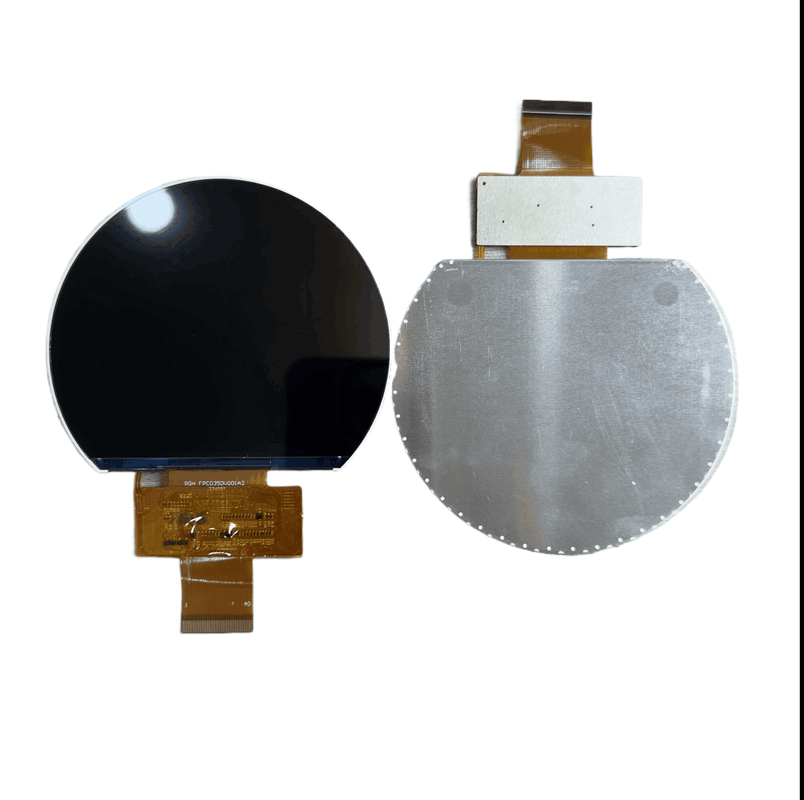

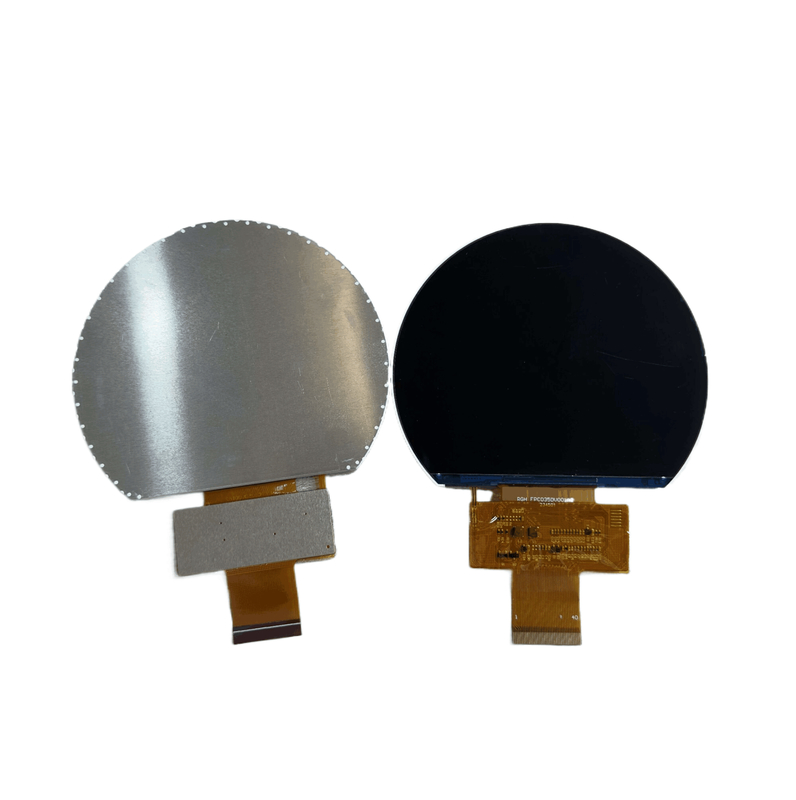

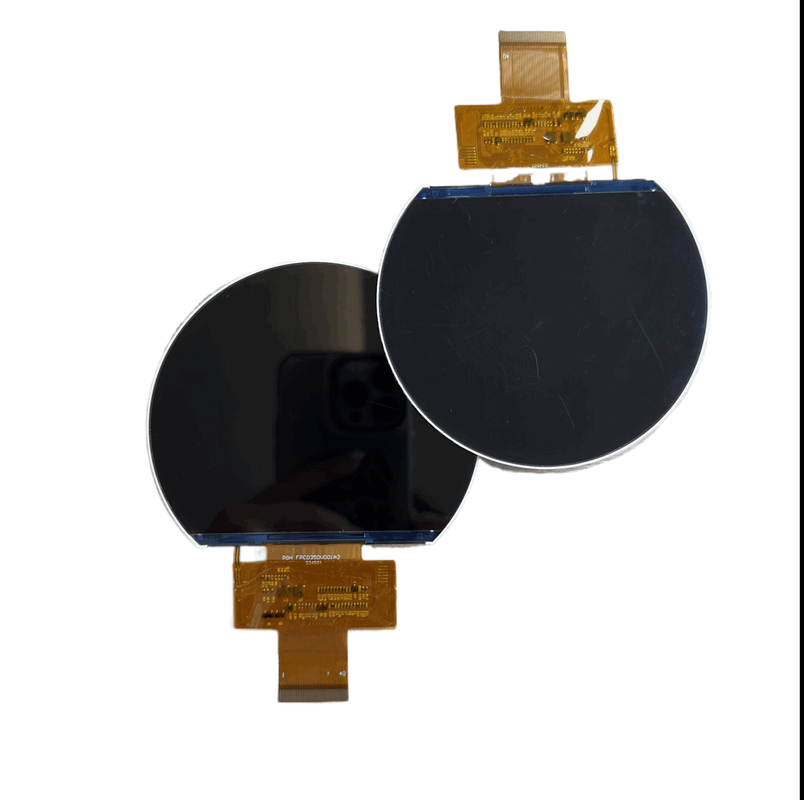

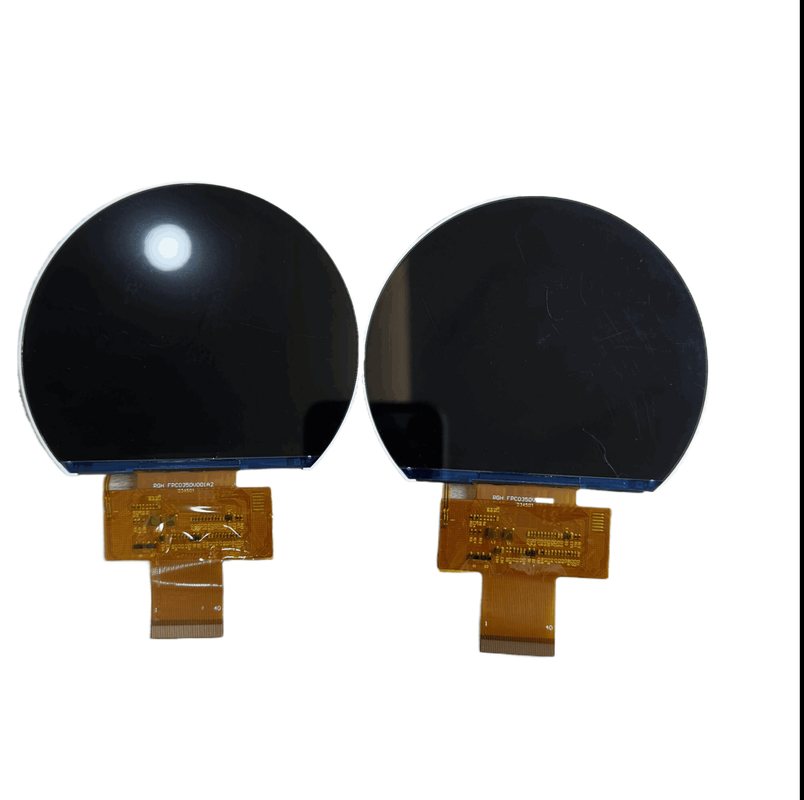

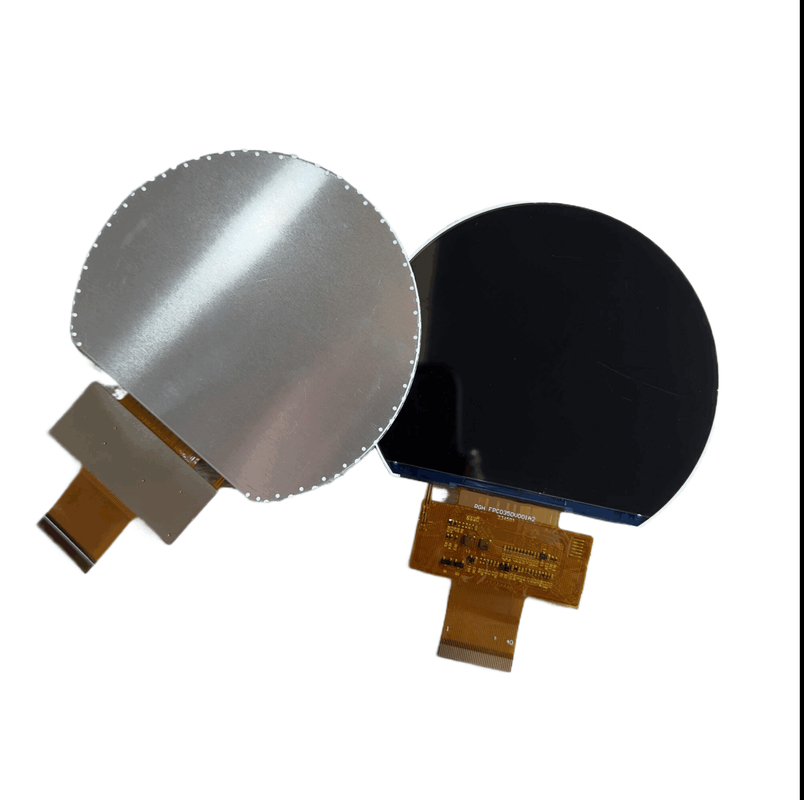

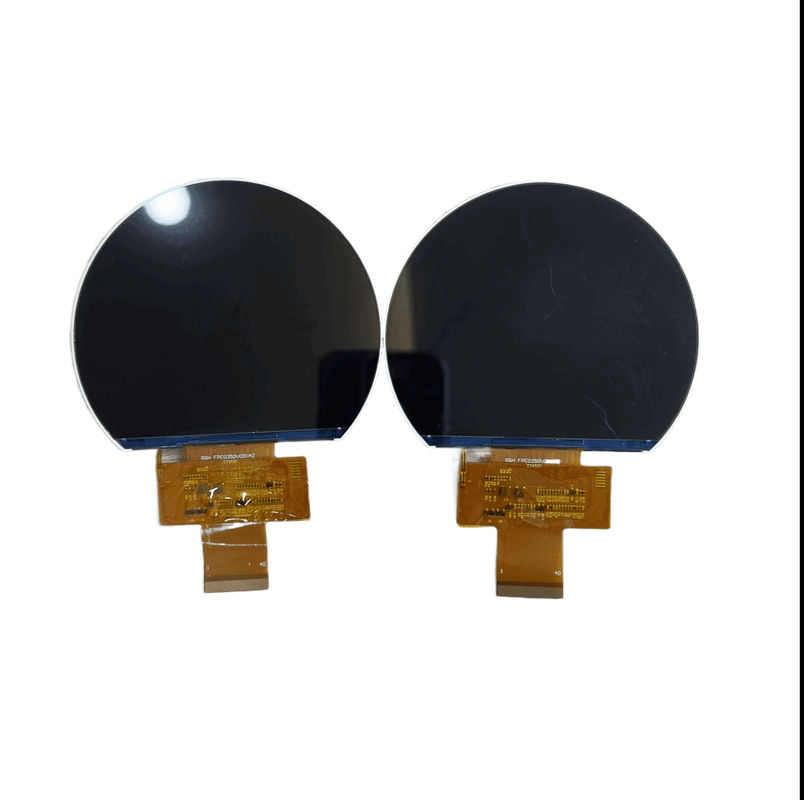

800x640 Round Circular LCD Display Oled Touch Screen Driver IC FL5893 3.5 Inch
Product Specification
| Size | 3.5 inch |
| Resolution | 800X(RGB)X640 |
| Driver Ic | FL5893 |
| Outline Dimension | 86.7(W )×86.7(H)×4.19(T) mm |
| Interface | SPI |
| Surface Luminance | 1200 cd/m2 |
| Response time | 25ms |
| Contrast ratio | 1000:1 |
Interface Pin Definition
| NO. | Symbol | Level | Function |
| 1 | LEDA | Power for LED backlight (Cathode) | |
| 2 | LEDK | Power for LED backlight (anode) | |
| 3 | LEDK | Power for LED backlight (anode) | |
| 4 | GND | Power ground | |
| 5 | VCC | Power for digital circuit | |
| 6 | RST | Reset Signal input pin. | |
| 7 | DISP | DISP pull low is Standby mode;Normally pull high | |
| 8 | VDD_OTP | Power Supply For LCD. | |
| 9 | SDA | Serial data input/output pin. | |
| 10 | SCL | Serial clock signal pin. | |
| 11 | CS | Chip selection signal pin. | |
| 12 | DCLK | Dot clock signal for RGB interface operation. | |
| 13 | DE | Data enable signal for RGB interface operation. | |
| 14 | VS | Framesynchronous signal for RGB interface operation. |
|
| 15 | HS | Line synchronous signal for RGB interface operation. | |
| 16-21 | R5-R0 | Red data | |
| 22-27 | G5-G0 | Green data | |
| 28-33 | B5-B0 | Blue data | |
| 34 | GND | Power ground | |
| 35 | TP-INT | Touch panel interrupt output | |
| 36 | TP-SDA | Touch panel I2C data | |
| 37 | TP-SCL | Touch panel I2C clock | |
| 38 | TP-RST | Touch panel reset | |
| 39 | TP-VCC | Touch panel Power supply 2.8~3.3V | |
| 40 | GND | Power ground |
External Dimensions
|
|
About this item
This 3.5-inch Transmissive TFT (Thin-Film Transistor) display offers excellent visual clarity and brightness, making it suitable for a wide range of applications that require vibrant and detailed graphics. With a resolution of 800x640 pixels (RGB), this display delivers sharp image quality and smooth color transitions. Its high surface luminance of 1200 cd/m² ensures that the screen remains visible even in bright environments, making it ideal for both indoor and outdoor usage.
The display features a wide viewing angle, supporting "All O’clock" viewing directions, which enhances visibility from various angles without compromising image quality. It operates efficiently with a logic voltage range of 2.5V to 3.3V, and it uses an SPI interface for seamless integration with a variety of devices and systems.
With an operating temperature range from -20°C to 70°C and storage capabilities between -30°C and 80°C, this display is designed for robust performance in a variety of environments. Its compact size and lightweight construction make it suitable for applications where space is limited, yet high-quality visual output is still a requirement.
Whether you're designing embedded systems, handheld devices, or other custom projects, this TFT display is an excellent choice for those needing high resolution, bright visibility, and efficient power consumption.
