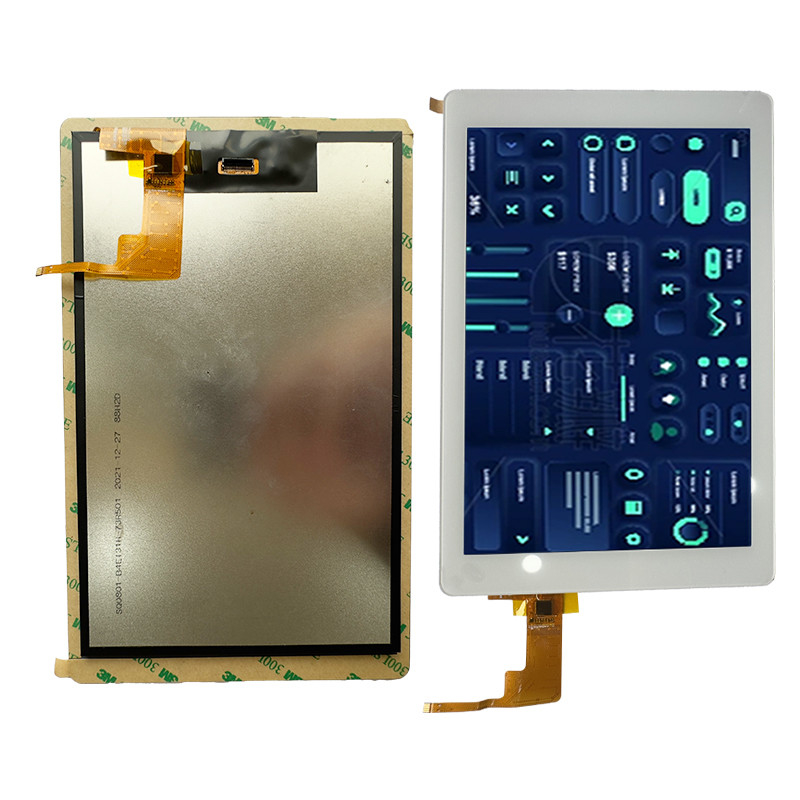

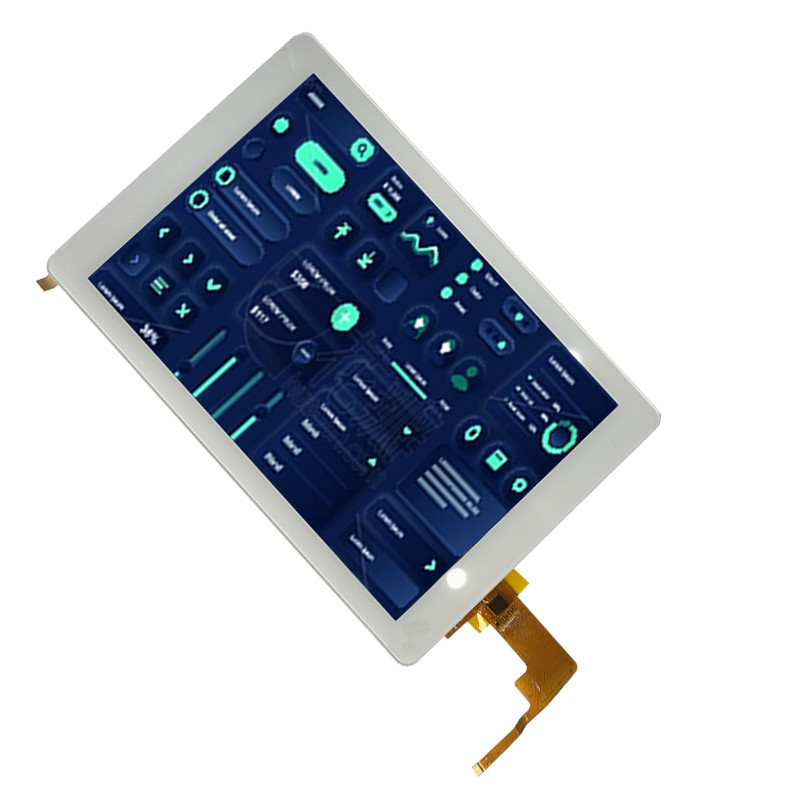

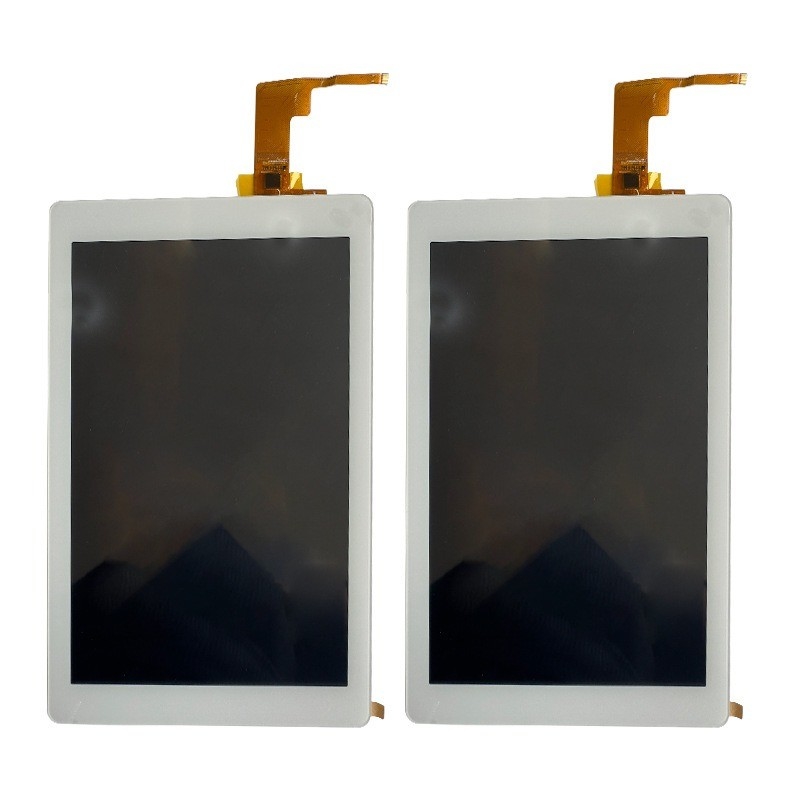

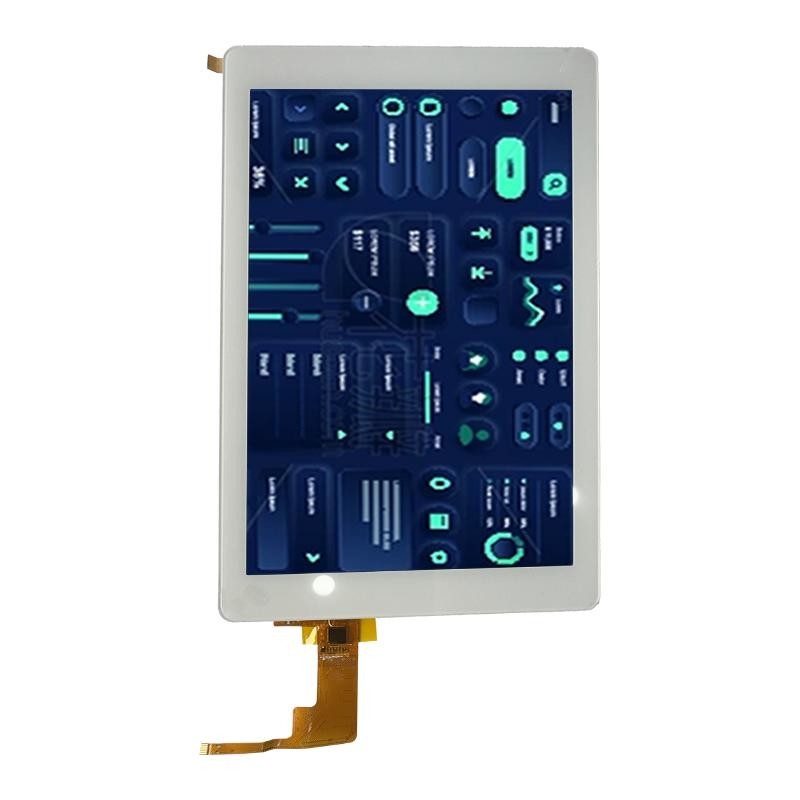

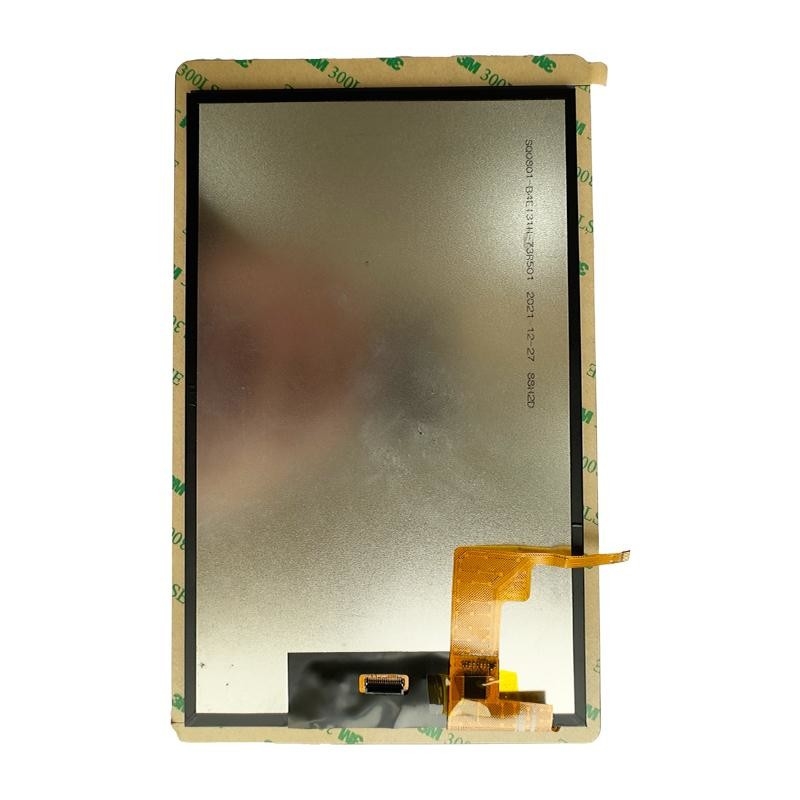

TFT LCD Capactive Touchscreen Module 800x1280 HD Resolution IPS Display 8 Inch With MIPI Interface
Product Specification
| Screen Size | 8 inches |
| Resolution | 800 x 1280 |
| Display Type | TFT LCD |
| Dimensions | 126.65(H)*205.10(V)*4.9(T) |
| Brightness | 220 cd/m² |
| Interface | MIPI |
| Backlight Type | LED |
| Viewing Angle | ALL O'CLOCK |
About this item
This 8-inch TFT LCD display offers a balanced combination of size and resolution, making it suitable for a variety of compact devices such as budget tablets, portable monitors, and other small electronics. With a resolution of 800 x 1280 pixels, it delivers clear visuals for everyday use, whether you’re browsing, watching videos, or using apps. The LED backlight ensures efficient power usage, while the 220 cd/m² brightness ensures the display remains visible in typical indoor lighting conditions.
The MIPI interface allows for easy integration with various devices, and the wide “ALL O’CLOCK” viewing angle ensures that the screen can be viewed comfortably from multiple directions. With slim dimensions of 126.65mm (H) x 205.10mm (V) x 4.9mm (T), this display is both lightweight and compact, making it ideal for portable use.
Interface Pin Definition
| NO. | Symbol | Level | Function |
| 1-3 | LEDA | LED power anode | |
| 4 | NC | NC | |
| 5-8 | LEDK | LED power cathode | |
| 9-10 | GND | Ground | |
| 11 | D2P | MIPI Data pin Positive | |
| 12 | D2N | MIPI Data pin Positive | |
| 13 | GND | Ground | |
| 14 | D1P | MIPI Data pin Positive | |
| 15 | D1N | MIPI Data pin Positive | |
| 16 | GND | Ground | |
| 17 | CLKP | Mipi clock signal | |
| 18 | CLKN | Mipi clock signal | |
| 19 | GND | Ground | |
| 20 | D0P | MIPI Data pin Positive | |
| 21 | D0N | MIPI Data pin Positive | |
| 22 | GND | Ground | |
| 23 | D3P | MIPI Data pin Positive | |
| 24 | D3N | MIPI Data pin Positive | |
| 25 | GND | Ground | |
| 26 | NC | NC | |
| 27 | RESET | RESET.PIN | |
| 28 | NC | NC | |
| 29 | VDDIO | Power supply for digital interface | |
| 30-31 | VDD | Power setting |
External Dimensions
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
6. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
7. What shipping ways do you support?
A: We can consult with it.
