Name: 2.1-Inch 480×480 Transmissive TFT LCD Module with LED Backlight and ST7701S Driver
Brand: Rongguang Hui Optoelectronics Science and Technology
SKU: RTP21WV001B
Availability: InStock

Home > products > Circular LCD Display >

2.1-Inch 480×480 Transmissive TFT LCD Module with LED Backlight and ST7701S Driver

Place of Origin:

Shenzhen,China

Brand Name:

RGH

Certification:

ISO9001/ISO14001

Model Number:

RTP21WV001B

Document:

Product Brochure PDF

Request A Quote

Product Details

Size:

2.1inch

Resolution:

480(RGB)*480

LCD Type:

Transmissive TFT

Viewing Direction:

ALL O’clock

LCM Outline Dimension:

73(H)*73(V)*3.91(T)

Active Area:

53.28(H) X53.28V) Mm

Backlight Type:

LED

Operating Temperature:

-20℃~70℃

Storage Temperature:

-30℃~80℃

Driving IC:

ST7701S

Brightness:

200cd/m2

TP IC:

L58

Payment & Shipping Terms

Minimum Order Quantity

3pcs

Price

Negotiable

Packaging Details

Standard Exportation Package

Delivery Time

3-5weeks

Payment Terms

L/C, T/T,Paypal

Supply Ability

3.5kk

1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight

Get Best Price

Video

1.3inch IPS TFT 380cd/M2 Brightness ALL o’clock viewing angle Circular Touch Lcd Display

Get Best Price

Video

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display

Get Best Price

Video

1.09"Inch 240×240 TFT LCD Display Module With 350cd/M2 Brightness

Get Best Price

86--075523210048

Contact Now

Product Description

Product Specification

Size	2.1inch
Resolution	480(RGB)X480
Backlight Type	LED
LCD Type	Transmissive TFT
Driving IC	ST7701S
Brightness	400cd/m2
Operating temperature	-20℃~70℃
Active Area	53.28(H) X53.28V) mm

Interface Pin Definition

NO.	Symbol	Level	Function
RGB
1	LEDK		LED power cathode
2	LEDA		LED power anode
3	GND		Ground
4	VDD		Power setting
5-13	GND		Ground
14	VS		Frame synchronizing signal for RGB.
15	HS		Line synchronizing signal for RGB.
16	PCLK		Dot clock signal for RGB.
17	DE		DE
18-22	B0-B4		Data bus.
23-28	G0-G5		Data bus.
29-33	R0-R4		Data bus.
34	RESET		RESET
35	CS		Chip selection.
36	SCL		Serial interface clock.
37	SDA		Serial in/out signal.
38	IOVcC		Power supply for digital interface
39	GND		Ground
40	IOVcC		Power supply for digital interface
MIPI
1	LEDK		LED power cathode
2	LEDA		LED power anode
3	GND		Ground
4	VDD		Power setting
5	DON		MIPI Data pin Positive
6	D0P		MIPI Data pin Positive
7	GND		Ground
8	CKN		Mipi clock signal
9	CKP		Mipi clock signal
10	GND		Ground
11	D1N		MIPI Data pin Positive
12	D1P		MIPI Data pin Positive
13-33	GND		Ground
34	RESET		RESET
35-38	GND		Ground
39-40	IOvcC		Power supply for digital interface

External Dimensions

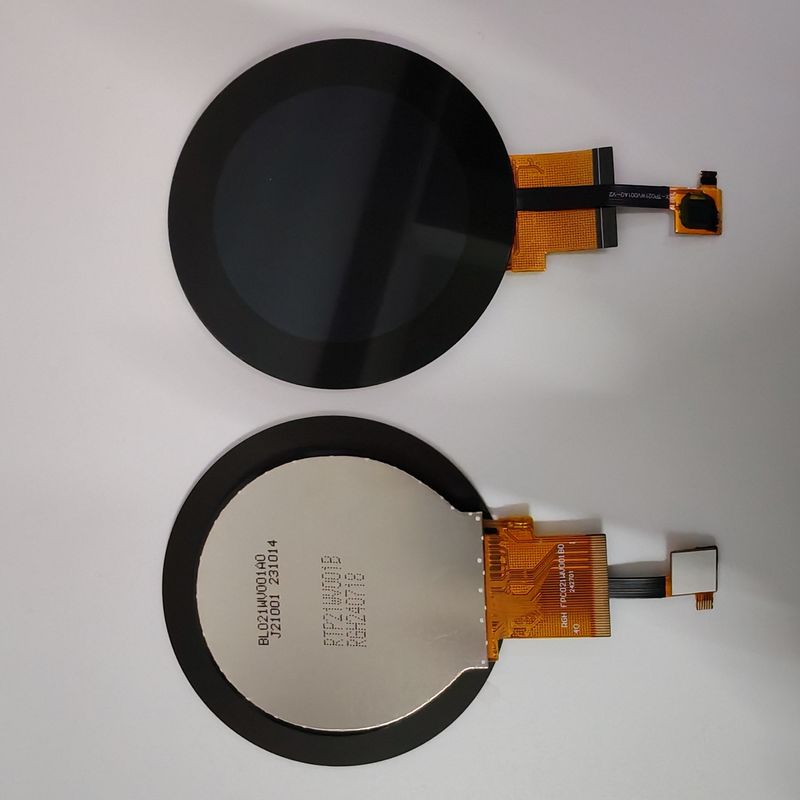

2.1-Inch 480×480 Transmissive TFT LCD Module with LED Backlight and ST7701S Driver 0

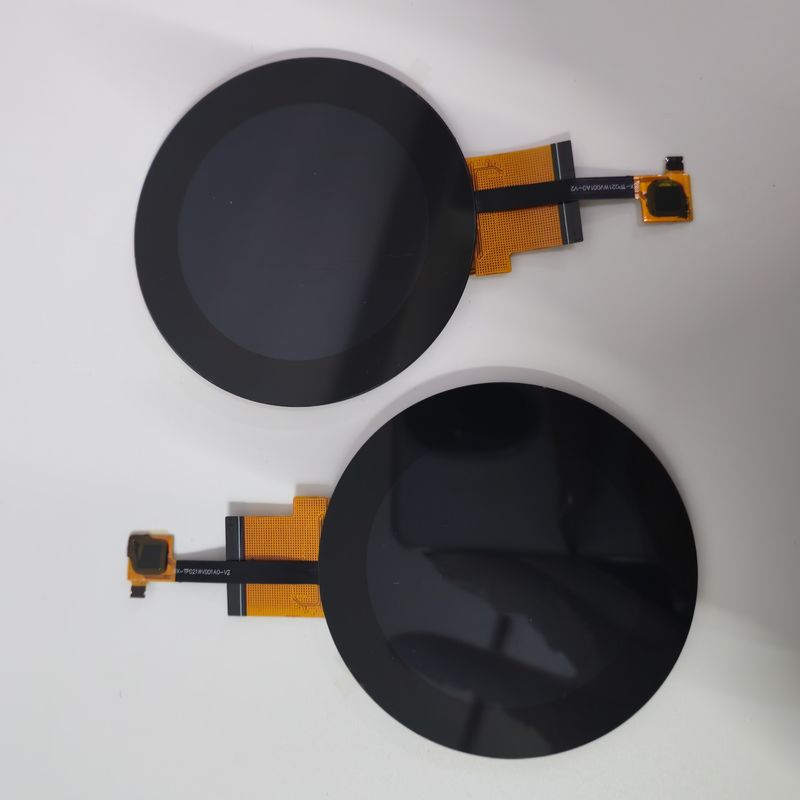

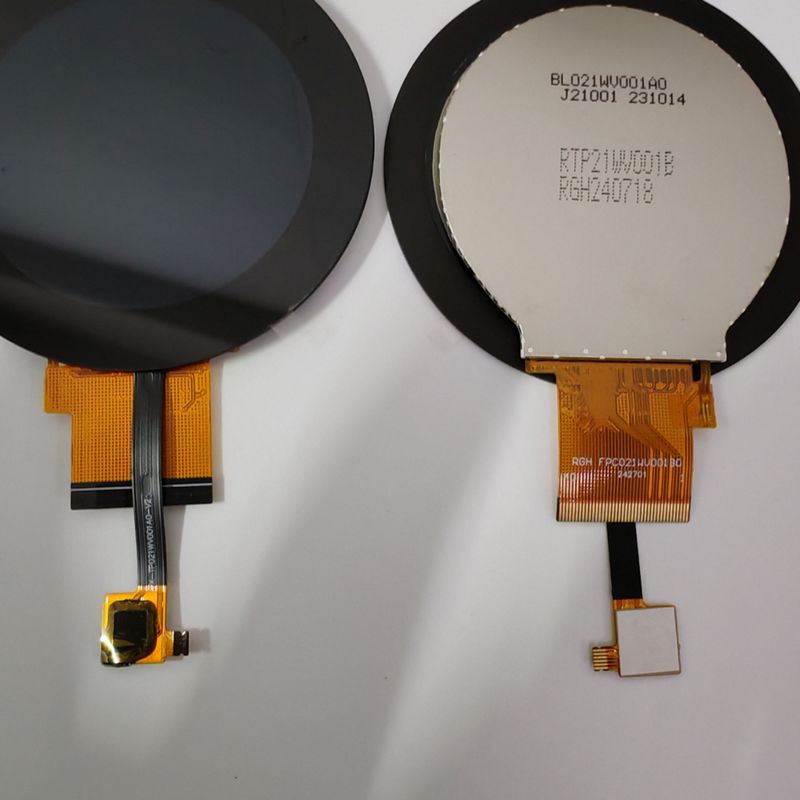

2.1-Inch 480×480 Transmissive TFT LCD Module with LED Backlight and ST7701S Driver 1

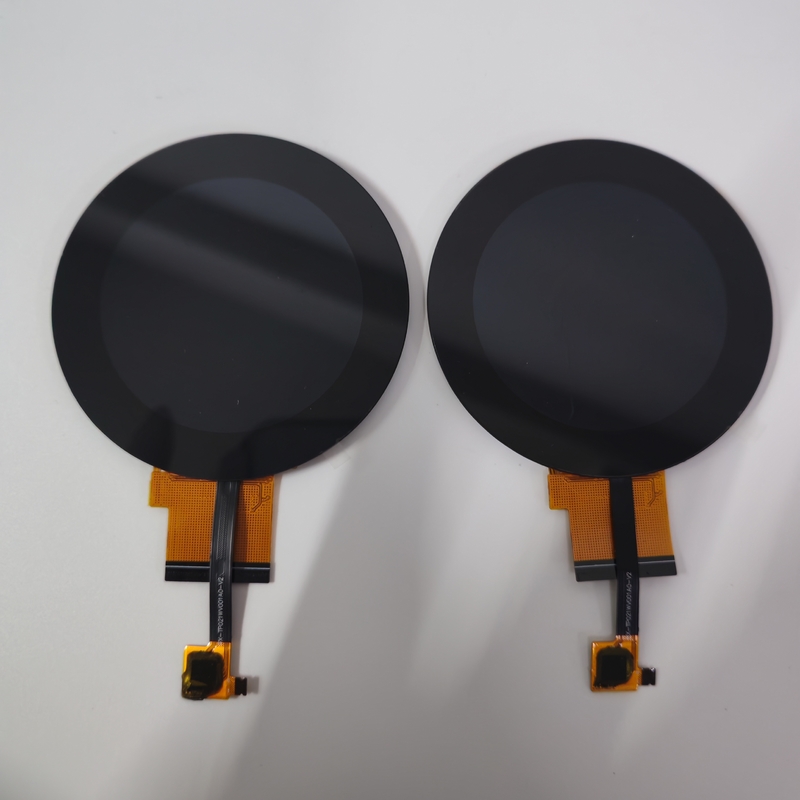

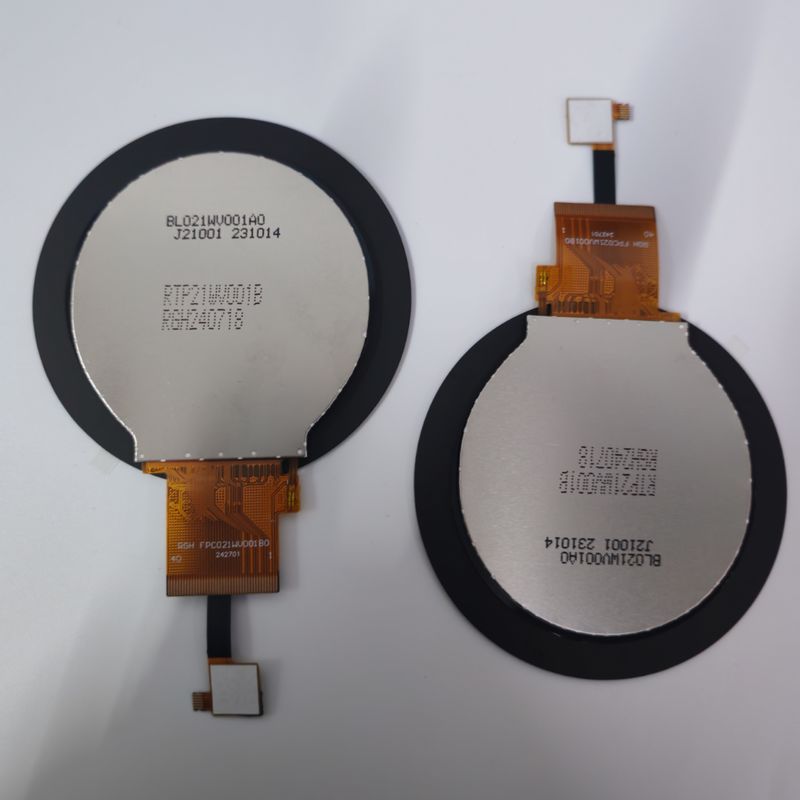

2.1-Inch 480×480 Transmissive TFT LCD Module with LED Backlight and ST7701S Driver 2

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

6. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

7. What shipping ways do you support?

A: We can consult with it.
