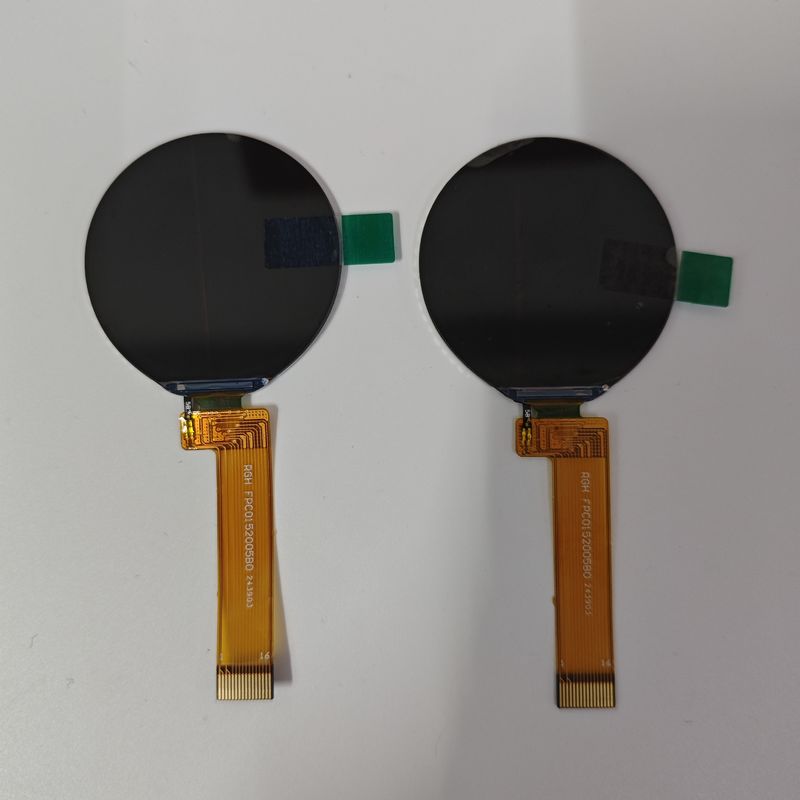

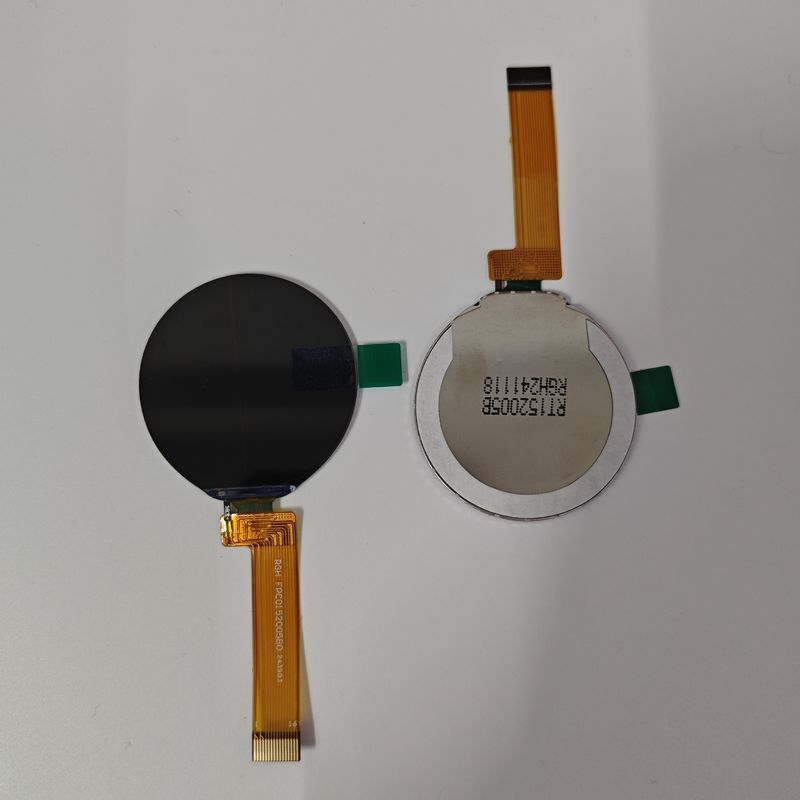

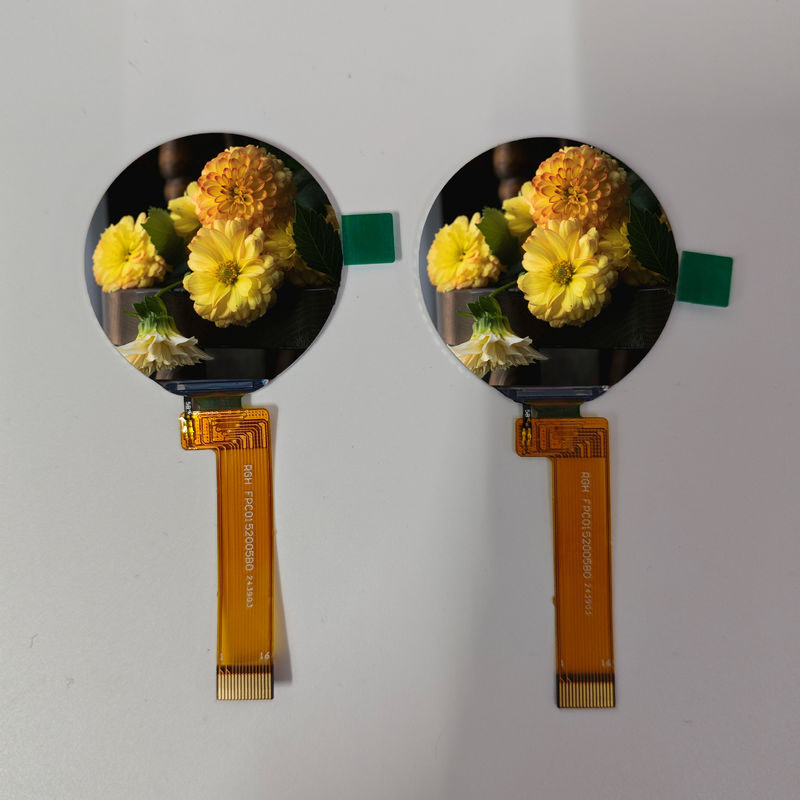

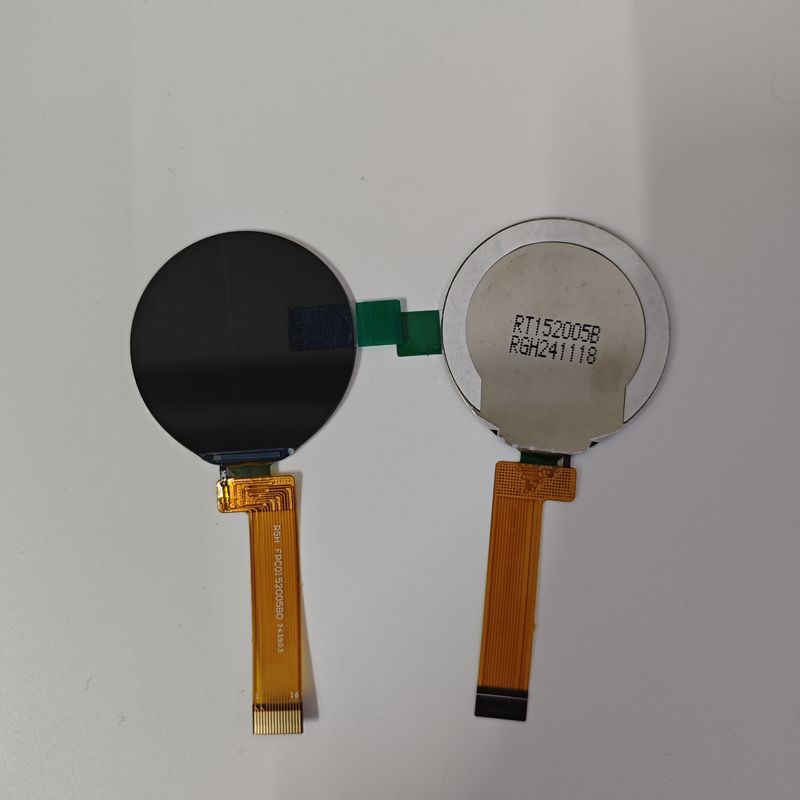

Name: 1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight
Brand: Rongguang Hui Optoelectronics Science and Technology
SKU: RT152005B
Availability: InStock

Home > products > Circular LCD Display >

1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight

Place of Origin:

Shenzhen,China

Brand Name:

RGH

Certification:

ISO9001/ISO14001

Model Number:

RT152005B

Document:

Product Brochure PDF

Request A Quote

Product Details

Size:

1.52inch

Resolution:

360（RGB）X360

LCD Type:

Transmissive TFT

Viewing Direction:

ALL O’clock

LCM Outline Dimension:

40.08(H)*41.97*1.58(T)

Active Area:

37.58(H) X37.58(V) Mm

Backlight Type:

LED

Operating Temperature:

-10℃~60℃

Storage Temperature:

-20℃~70℃

Driving IC:

ST77916

Brightness:

580cd/m2

Color:

262k

Payment & Shipping Terms

Minimum Order Quantity

3pcs

Price

Negotiable

Packaging Details

Standard Exportation Package

Delivery Time

3-5weeks

Payment Terms

L/C, T/T,Paypal

Supply Ability

3.5kk

1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight

Get Best Price

Video

1.3inch IPS TFT 380cd/M2 Brightness ALL o’clock viewing angle Circular Touch Lcd Display

Get Best Price

Video

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display

Get Best Price

Video

1.09"Inch 240×240 TFT LCD Display Module With 350cd/M2 Brightness

Get Best Price

86--075523210048

Contact Now

Product Description

Product Specification

Size	1.52inch
Resolution	360(RGB)X360
Backlight Type	LED
LCD Type	Transmissive TFT
Driving IC	ST77916
Brightness	400cd/m2
Operating temperature	-10℃~60℃
Active Area	37.58(H) X37.58(V) mm

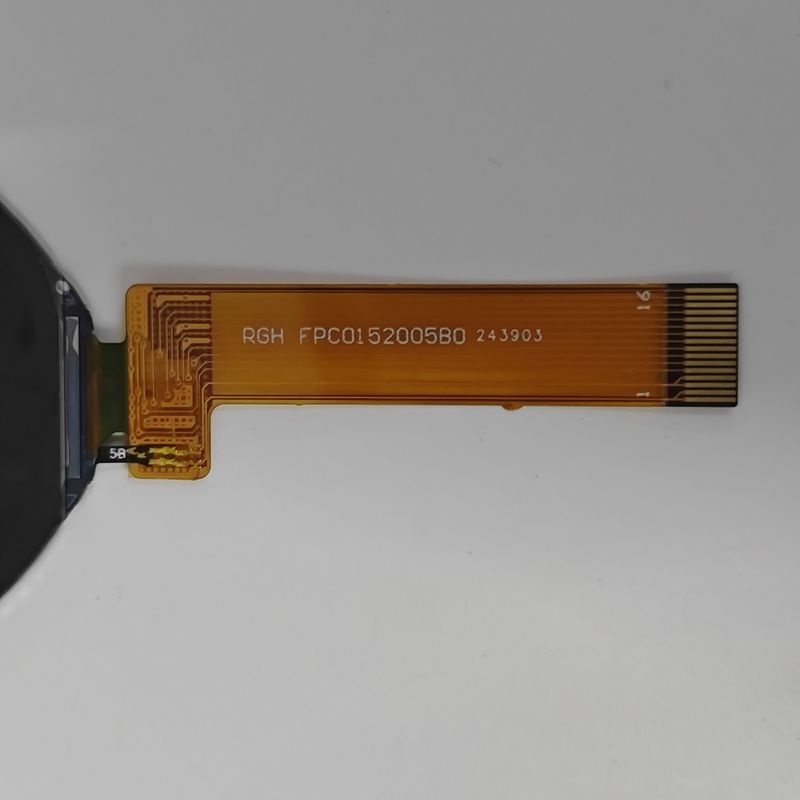

Interface Pin Definition

NO.	Symbol	Level	Function
1-2	LEDK		LED power cathode
2-4	LEDA		LED power anode
5	VCC		Power setting
6	IOVCC		The System interface mode select
7	RESET		-This signal will reset the device and it must be applied to properly initialize the chip
8	CS		-Chip select pin.
9	GND		Ground
10	SCL		Serial clock input for SPI interface.
11	GND		Ground
12	SDA		Serial data input/output bidirectional pin for SPI Interface.
13	A0		-Write enable in MCU parallel interface. -Dot clock signal in RGB interface. (DOTCLK)
14	TE		Tearing effect signal is used to synchronize MCU to frame memory writing
15	GND		Ground
16	IM1/IM2		IM1/IM2

External Dimensions

1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight 0

1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight 1

1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight 2

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

6. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

7. What shipping ways do you support?

A: We can consult with it.
