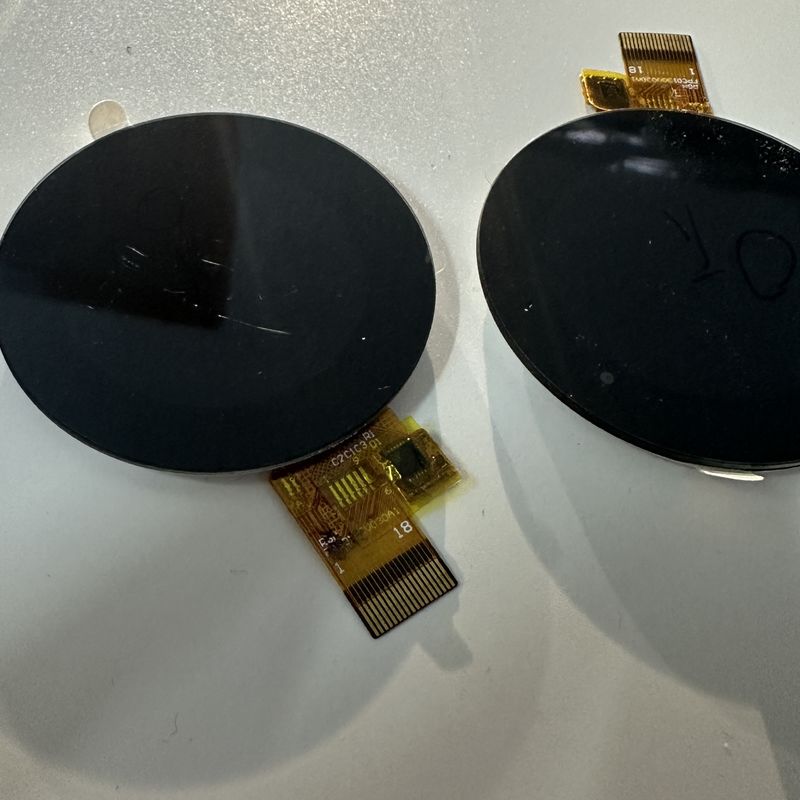

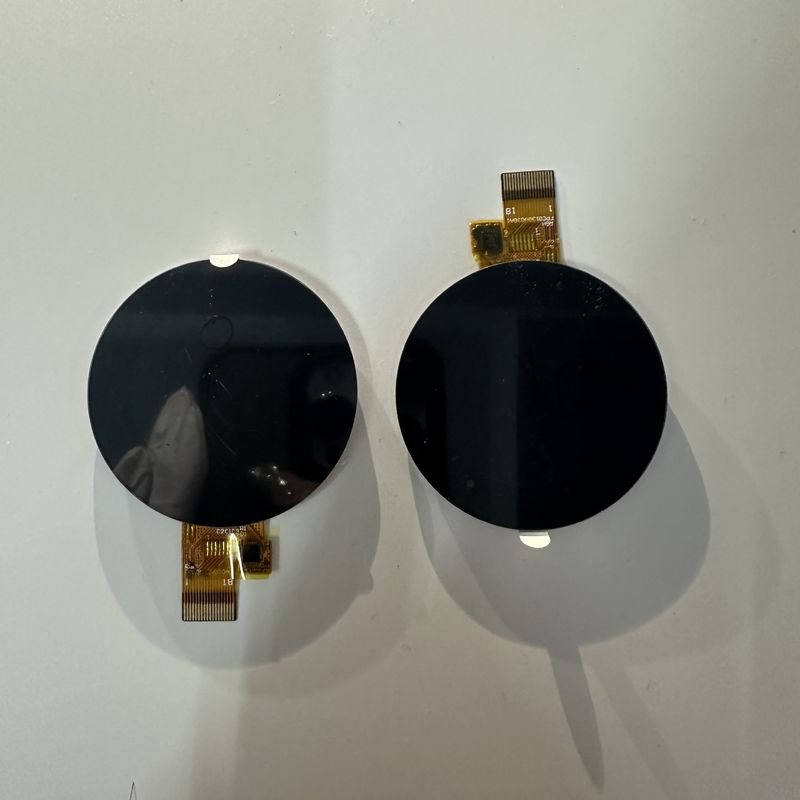

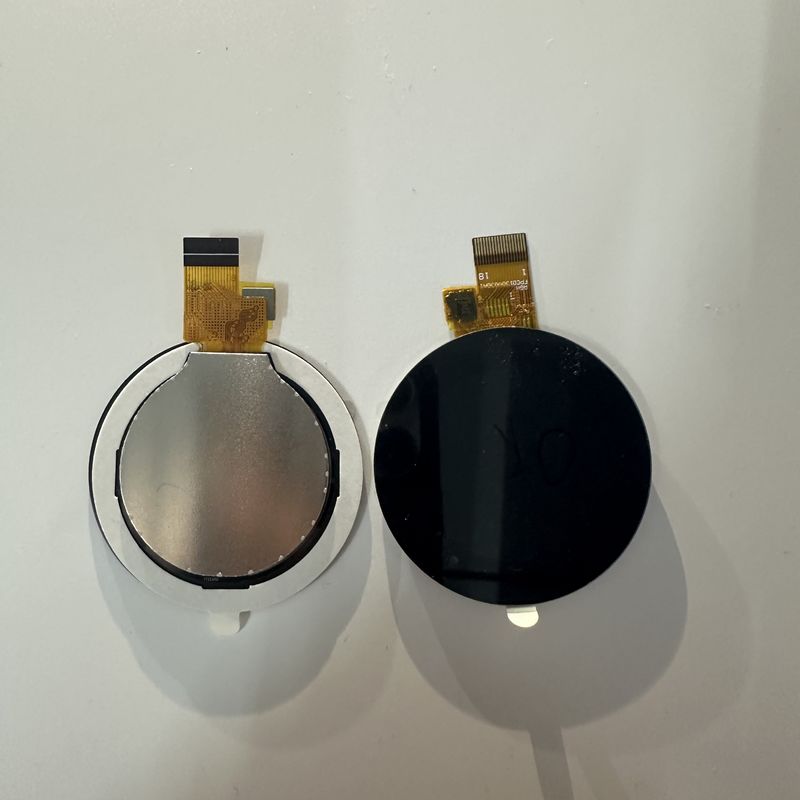

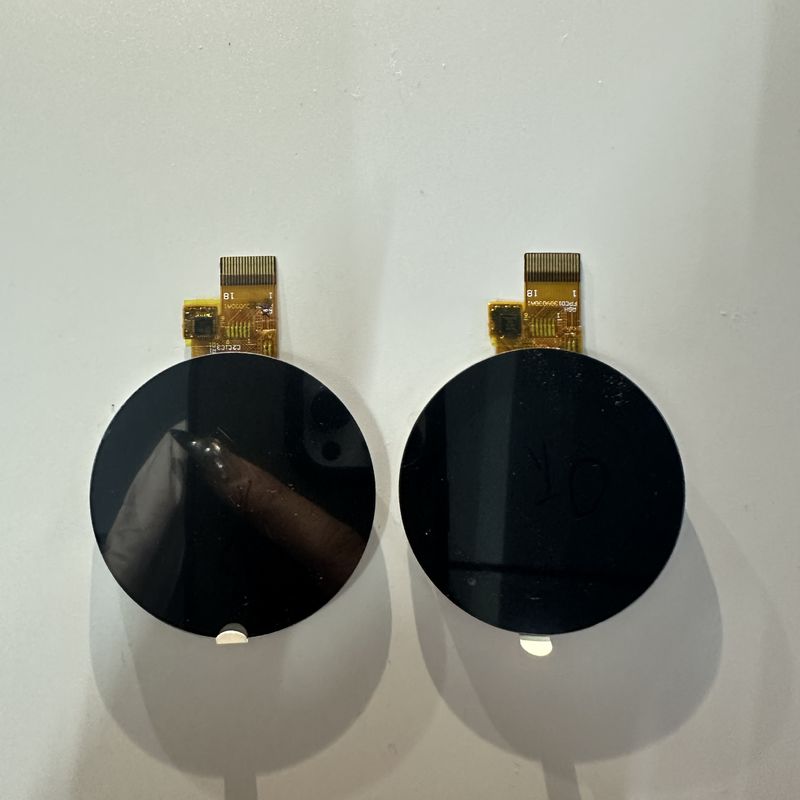

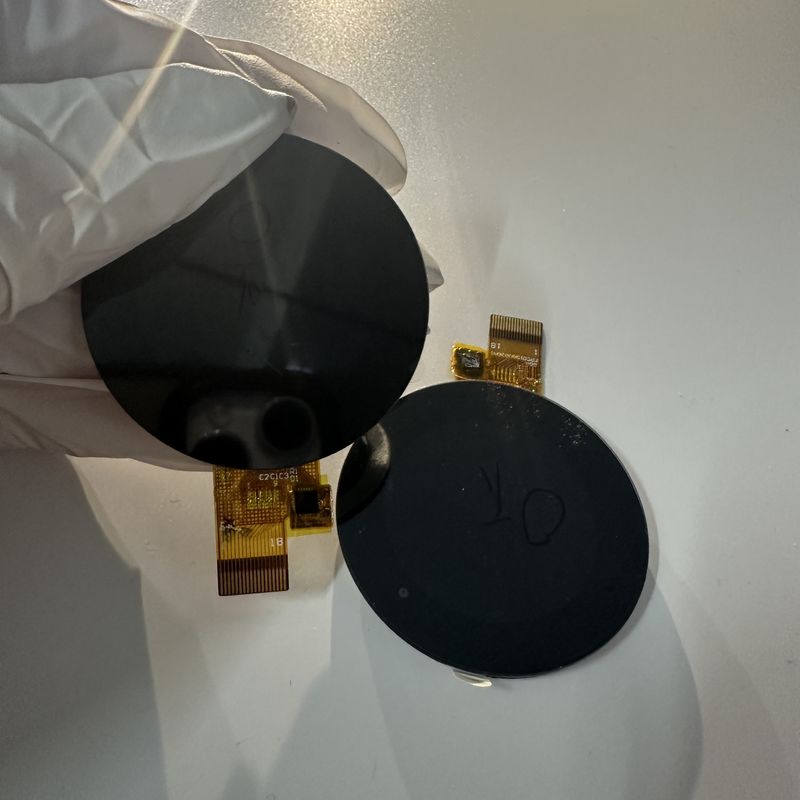

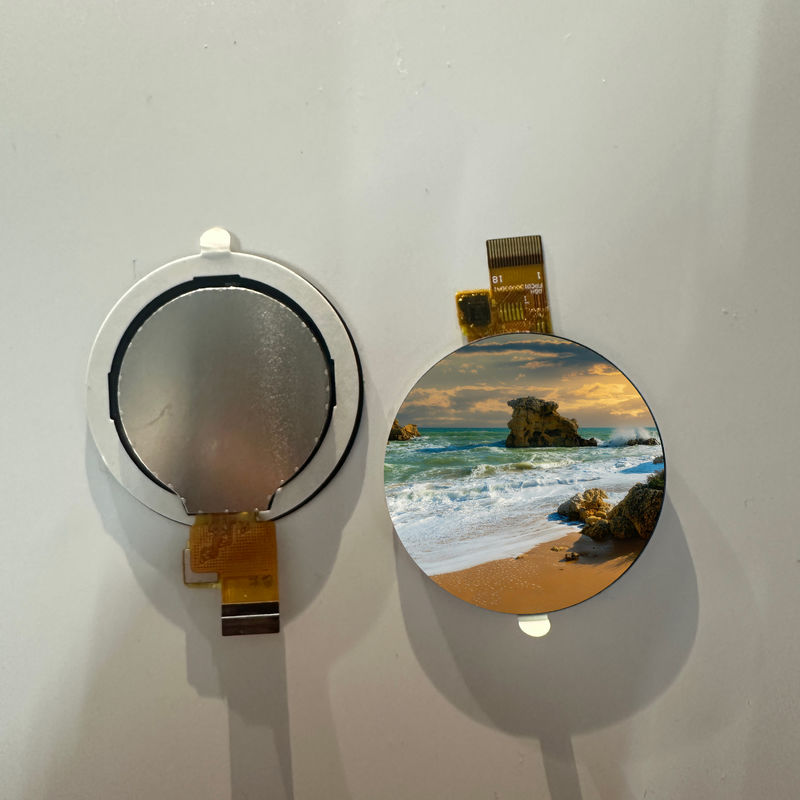

Name: 1.3inch IPS TFT 380cd/M2 Brightness ALL o’clock viewing angle Circular Touch Lcd Display
Brand: Rongguang Hui Optoelectronics Science and Technology
SKU: RTP13QV041A
Availability: InStock

Home > products > Circular LCD Display >

1.3inch IPS TFT 380cd/M2 Brightness ALL o’clock viewing angle Circular Touch Lcd Display

Place of Origin:

Shenzhen,China

Brand Name:

RGH

Certification:

ISO9001/ISO14001

Model Number:

RTP13QV041A

Document:

Product Brochure PDF

Request A Quote

Product Details

Size:

1.3inch

Resolution:

240（RGB）X240

LCD Type:

Transmissive TFT

Viewing Direction:

ALL O’clock

LCM Outline Dimension:

47.3(W) X 47.3(H) X3.05(T) Mm

Active Area:

32.4(W) X32.4(H) Mm

Backlight Type:

LED

Operating Temperature:

-20℃~70℃

Storage Temperature:

-30℃~80℃

Driving IC:

GC9A01

Brightness:

380cd/m2

CTP IC:

CHSC6413

Response Time:

35ms

Contrast Ration:

1100:1

Payment & Shipping Terms

Minimum Order Quantity

3pcs

Price

Negotiable

Packaging Details

Standard Exportation Package

Delivery Time

3-5weeks

Payment Terms

L/C, T/T,Paypal

Supply Ability

3.5kk

1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight

Get Best Price

Video

1.3inch IPS TFT 380cd/M2 Brightness ALL o’clock viewing angle Circular Touch Lcd Display

Get Best Price

Video

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display

Get Best Price

Video

1.09"Inch 240×240 TFT LCD Display Module With 350cd/M2 Brightness

Get Best Price

86--075523210048

Contact Now

Product Description

Product Specification

Size	1.3inch
Resolution	240(RGB)X240
Backlight Type	LED
LCD Type	Transmissive TFT
Driving IC	GC9A01
Brightness	380cd/m2
Operating temperature	-20℃~70℃
Active Area	32.4(W) X32.4(H) mm

Interface Pin Definition

NO.	Symbol	Level	Function
1	LEDA		LED,anode.
2	LEDK		LED,cathode.
3	GND		Ground
4	TP-VCC		Power setting
5	TP-RESET		TP RESET PIN
6	TP-INT		TP INT
7	TP-SDA		TP SDA
8	TP-SCL		TP SCL
9	GND		Ground
10	TE		TE
11	SDA		SPl interface input/output pin.
12	WRIA0		command selection pin in 4-line serial interface
13	SCL		This pin is used to be serial interface clock
14	CS		-Chip selection pin
15	RESET		Reset signal.
16	IOVCC	1.8V	Power supply for digital interface
17	VDD	2.8V(typ)	Power supply.
18	GND		Ground

External Dimensions

1.3inch IPS TFT 380cd/M2 Brightness ALL o’clock viewing angle Circular Touch Lcd Display 0

1.3inch IPS TFT 380cd/M2 Brightness ALL o’clock viewing angle Circular Touch Lcd Display 1

1.3inch IPS TFT 380cd/M2 Brightness ALL o’clock viewing angle Circular Touch Lcd Display 2

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

6. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

7. What shipping ways do you support?

A: We can consult with it.
