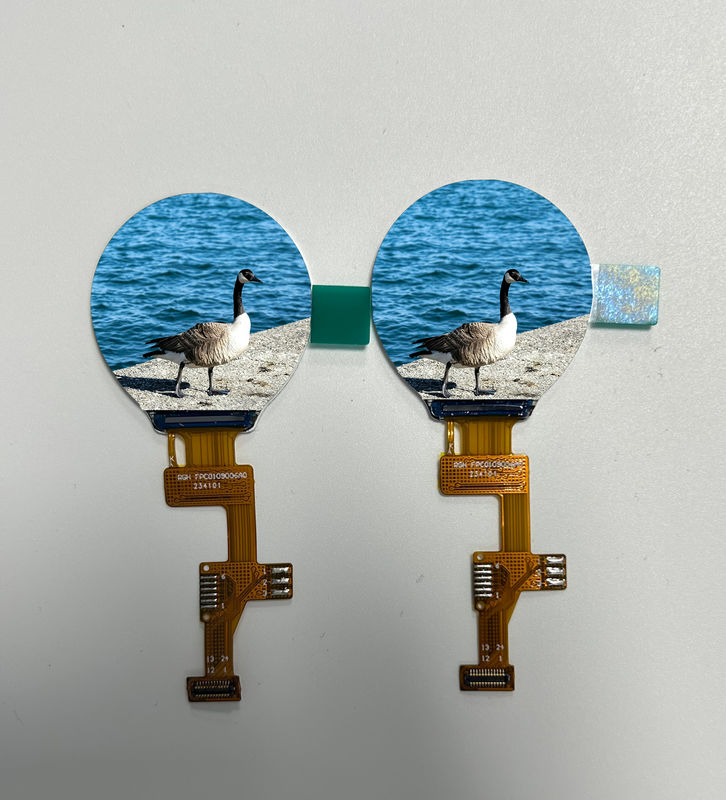

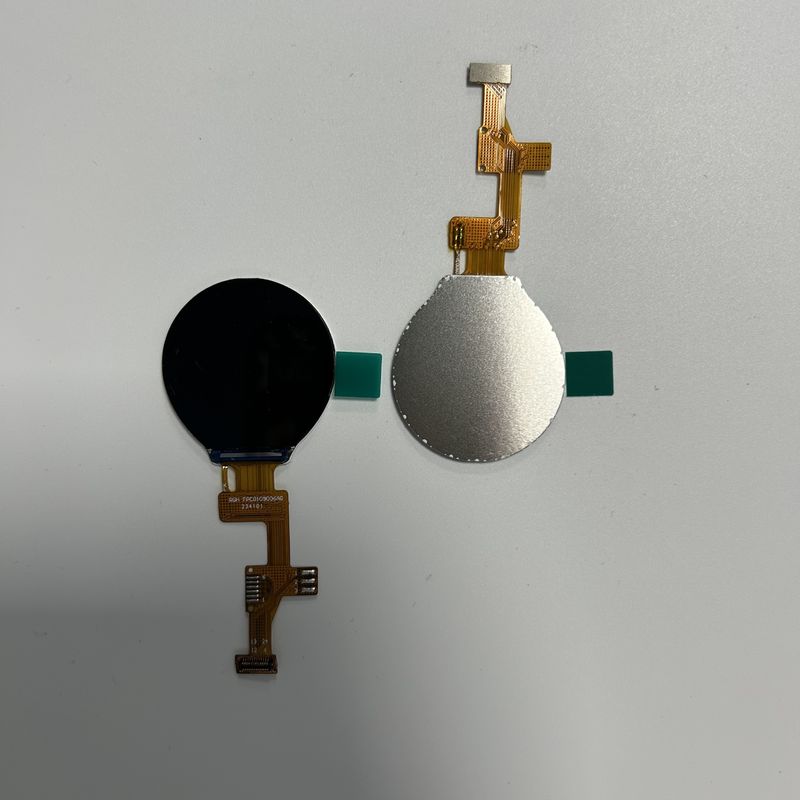

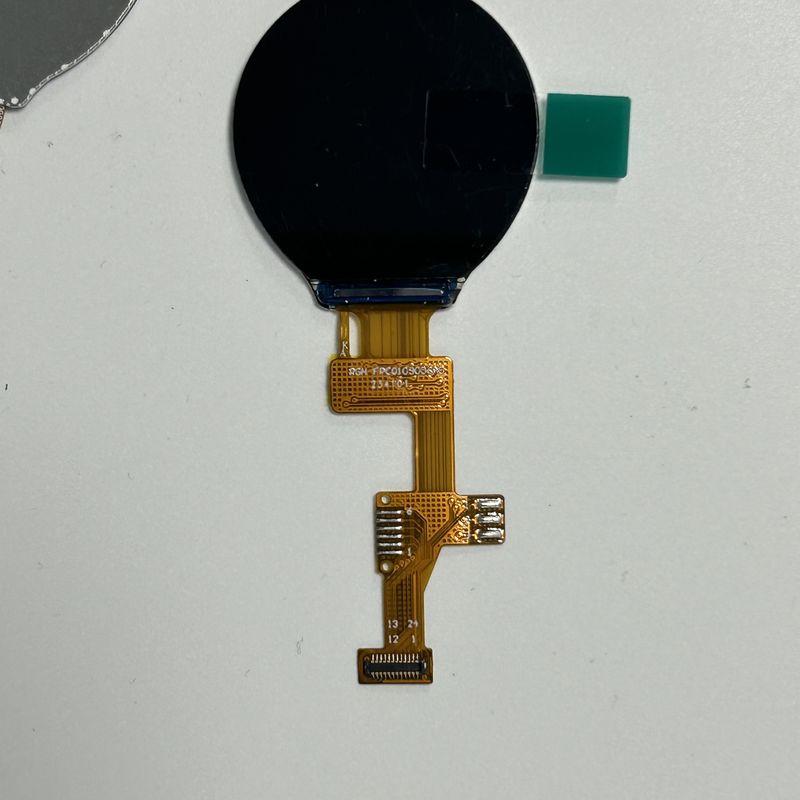

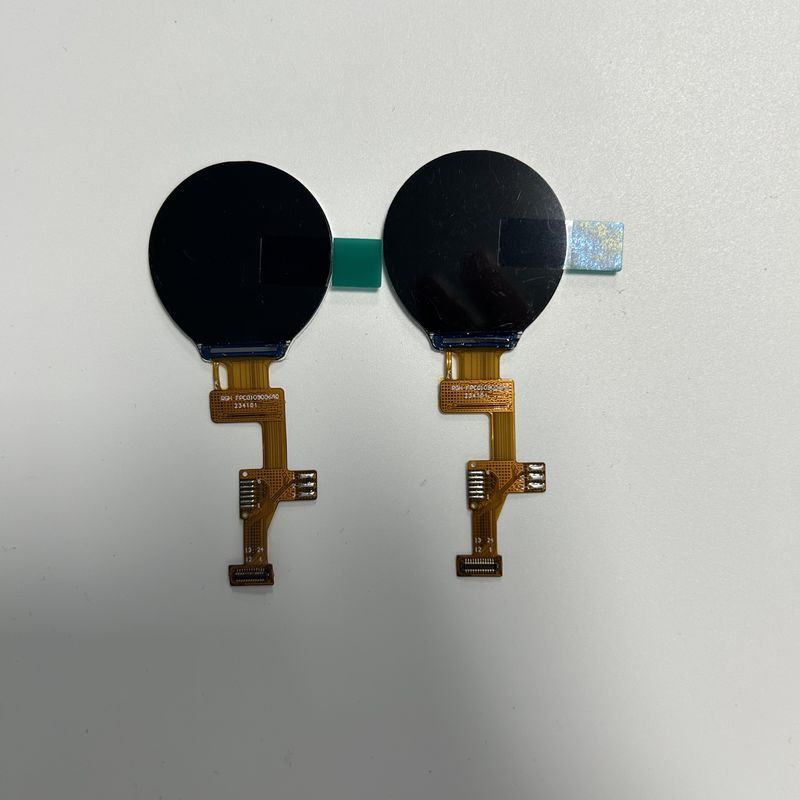

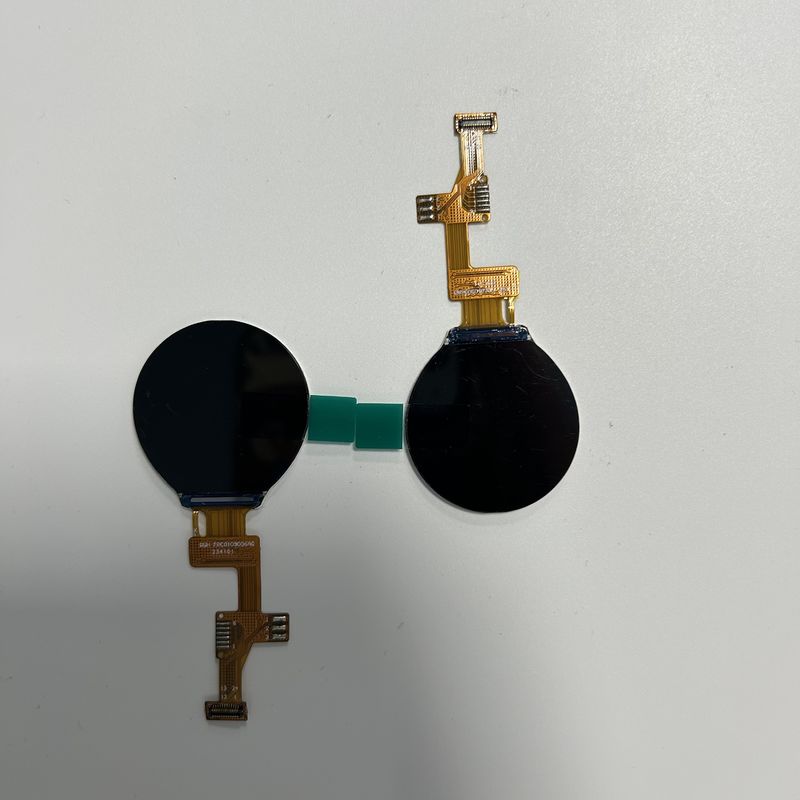

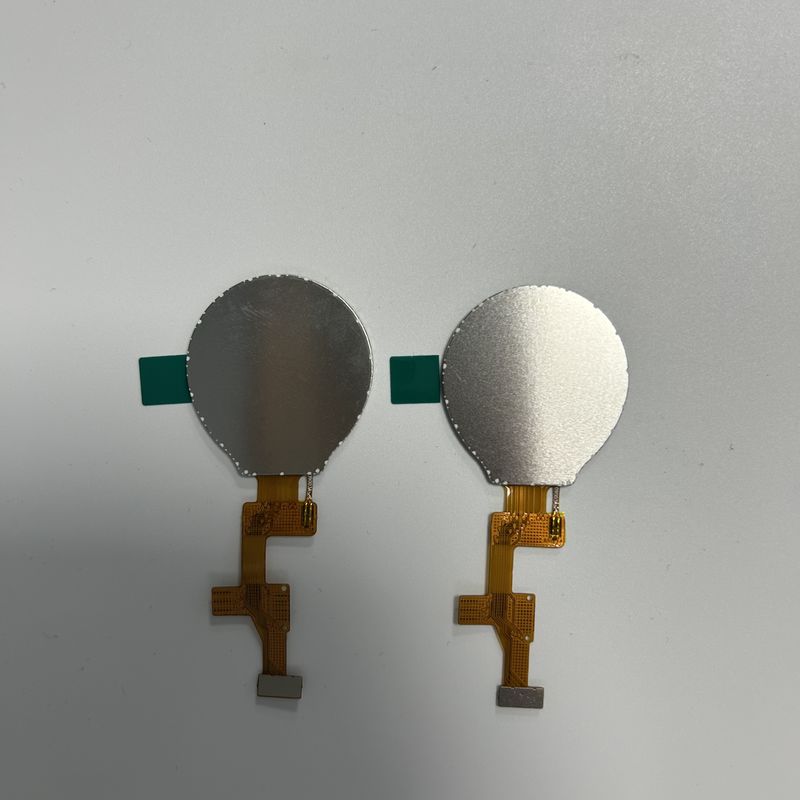

Name: 1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display
Brand: Rongguang Hui Optoelectronics Science and Technology
SKU: RT109006A
Availability: InStock

Home > products > Circular LCD Display >

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display

Place of Origin:

Shenzhen,China

Brand Name:

RGH

Certification:

ISO9001/ISO14001

Model Number:

RT109006A

Document:

Product Brochure PDF

Request A Quote

Product Details

Size:

1.09inch

Resolution:

240（RGB）X240

LCD Type:

Transmissive TFT

Viewing Direction:

ALL O’clock

LCM Outline Dimension:

34.7(H) X 35 (V) X3.6(T) Mm

Active Area:

27.79(H) X27.79(V) Mm

Backlight Type:

LED

Operating Temperature:

-20℃~70℃

Storage Temperature:

-30℃~80℃

Driving IC:

GC9A01

Brightness:

400cd/m2

Color:

262k

Payment & Shipping Terms

Minimum Order Quantity

3pcs

Price

Negotiable

Packaging Details

Standard Exportation Package

Delivery Time

3-5weeks

Payment Terms

L/C, T/T,Paypal

Supply Ability

3.5kk

1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight

Get Best Price

Video

1.3inch IPS TFT 380cd/M2 Brightness ALL o’clock viewing angle Circular Touch Lcd Display

Get Best Price

Video

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display

Get Best Price

Video

1.09"Inch 240×240 TFT LCD Display Module With 350cd/M2 Brightness

Get Best Price

86--075523210048

Contact Now

Product Description

Product Specification

Size	1.09inch
Resolution	240(RGB)X240
Backlight Type	LED
LCD Type	Transmissive TFT
Driving IC	GC9A01
Brightness	400cd/m2
Operating temperature	-20℃~70℃
Active Area	27.79(H) X27.79(V)mm

Interface Pin Definition

NO.	Symbol	Level	Function
1	GND		Ground.
2	NFC1
3	NFC2
4	NFC3
5-6	GND		Ground.
7	LEDK		LED,cathode.
8	LEDA		LED,anode.
9	GND		Ground.
10	WRIA0		command selection pin in 4-line serial interface
11	SCL		This pin is used to be serial interface clock
12	RESET		Reset signal.
13	GND		Ground.
14	SDA		SPI interface input/output pin.
15	CS		-Chip selection pin
16	GND		Ground.
17	VDD	2.8V(typ)	Power supply.
18	TP-RESET		TP RESET PIN
19	TP-VCC		Power setting
20	TP-INT		TP INT
21	TP-SDA		TP SDA
22	TP-SCL		TP SCL
23	TP-GND		Ground.
24	GND		Ground.

External Dimensions

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display 1

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display 2

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

6. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

7. What shipping ways do you support?

A: We can consult with it.
