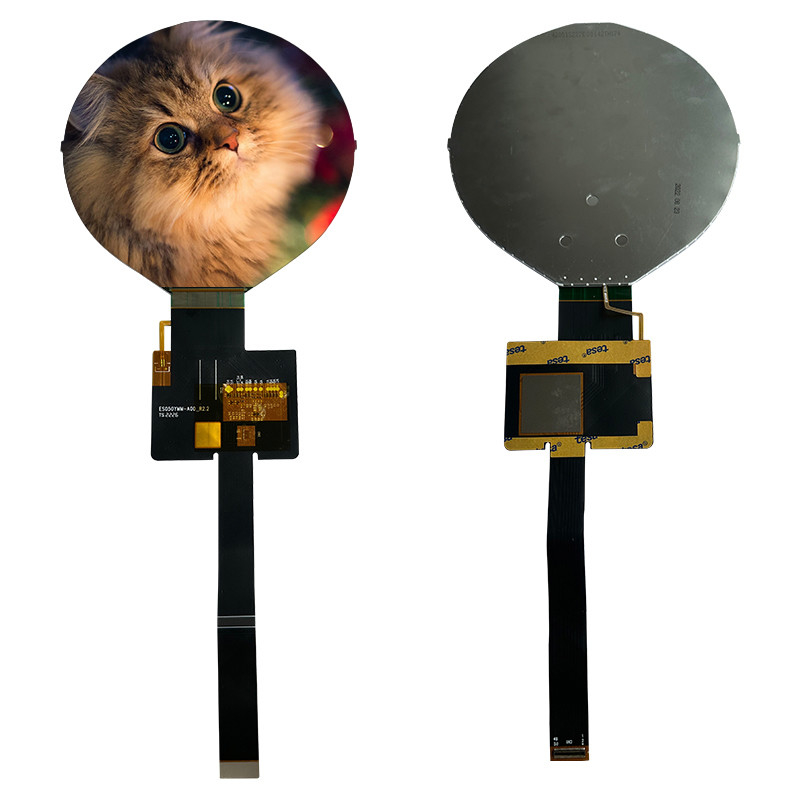

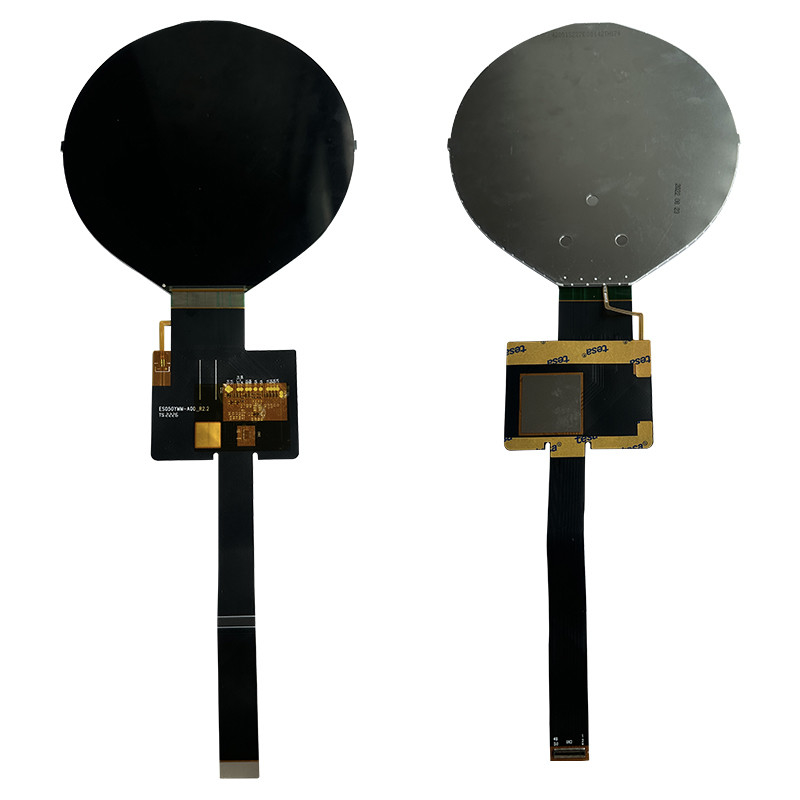

Round 5.0 Inch Lcd Screen 1080*1080 MIPI Interface IPS Circular Tft Lcd Module Panel
Product Specification
| Size | 5.0 inch |
| Resolution | 1080(RGB)X 1080 |
| Panel Type | IPS |
| Contrast ratio | 1300:1 |
| Driving IC | HX8399C |
| Power Consumption | 420 MW |
| Viewing area | 128.00(H) X128.00(V) |
| Active area | 127.00(H) X127.00(V) |
About this item
This 5.0-inch LCD display features a high-resolution 1080x1080 RGB panel, delivering sharp and vibrant visuals with a wide viewing angle, thanks to its IPS technology. The display is designed to be highly versatile, with a full 360° viewing direction, making it ideal for a range of applications that require clear and consistent visibility from all angles.
With a contrast ratio of 1300:1, it provides crisp details and excellent color reproduction, supporting up to 262,000 colors. The active area spans 127mm x 127mm, while the viewing area extends to 128mm x 128mm, ensuring a spacious screen for various uses.
Built to endure a wide range of environmental conditions, this display operates efficiently between -20°C and +70°C and has a storage temperature range from -30°C to +70°C. Additionally, the driving IC, HX8399C, optimizes power consumption at 420mW while ensuring reliable performance. The display's LED backlight is rated for 35,000 hours of use, ensuring long-lasting durability. Whether for consumer electronics, industrial applications, or other high-precision tasks, this screen offers a solid combination of performance and reliability.
Interface Pin Definition
| NO. | Symbo | Level | Function |
| 1-2 | GND | Ground | |
| 3 | LAN2-P | Disp MIPI lane 2+ | |
| 4 | LEDK | LED cathode | |
| 5 | LAN2-N | Disp MIPI lane 2- | |
| 6 | LEDK | LED cathode | |
| 7-8 | GND | Ground | |
| 9 | LAN1-P | Disp MIPI lane 1+ | |
| 10 | LEDA | LED Anode | |
| 11 | LAN1-N | Disp MIPI lane 1- | |
| 12 | LEDA | LED Anode | |
| 13-14 | GND | Ground | |
| 15 | CLK-P | Disp MIPI CLK+ | |
| 16 | ID-PIN2 | ID pu to 1.8V(BOE) | |
| 17 | CLK-N | Disp MIPI CLK- | |
| 18 | ID-PIN1 | ID pd to GND (BOE) | |
| 19-20 | GND | Ground | |
| 21 | LAN0-P | Disp MIPI lane 0+ | |
| 22 | IOVCC | Disp digital power | |
| 23 | LAN0-N | Disp MIPI lane O- | |
| 24 | IOVCC | Disp digital power | |
| 25-26 | GND | Ground | |
| 27 | LAN3-P | Disp MIPI lane 3+ | |
| 28 | NC | NC | |
| 29 | LAN3-N | Disp MIPI lane 3- | |
| 30 | VDD(-5) | Disp -5V analog rail | |
| 31 | GND | Ground | |
| 32 | VDD(-5) | Disp -5V analog rail | |
| 33-35 | NC | NC | |
| 36 | VDD(+5) | Disp +5V analog rail | |
| 37 | GND | Ground | |
| 38 | VDD(+5) | Disp +5V analog rail | |
| 39-41 | NC | NC | |
| 42 | GND | Ground | |
| 43 | NC | NC | |
| 44 | LEDPWM | Backlight pwm output | |
| 45 | NC | NC | |
| 46 | TE | Disp tearing effect out | |
| 47 | GND | Ground | |
| 48 | RESET | Disp reset | |
| 49-50 | GND | Ground |
