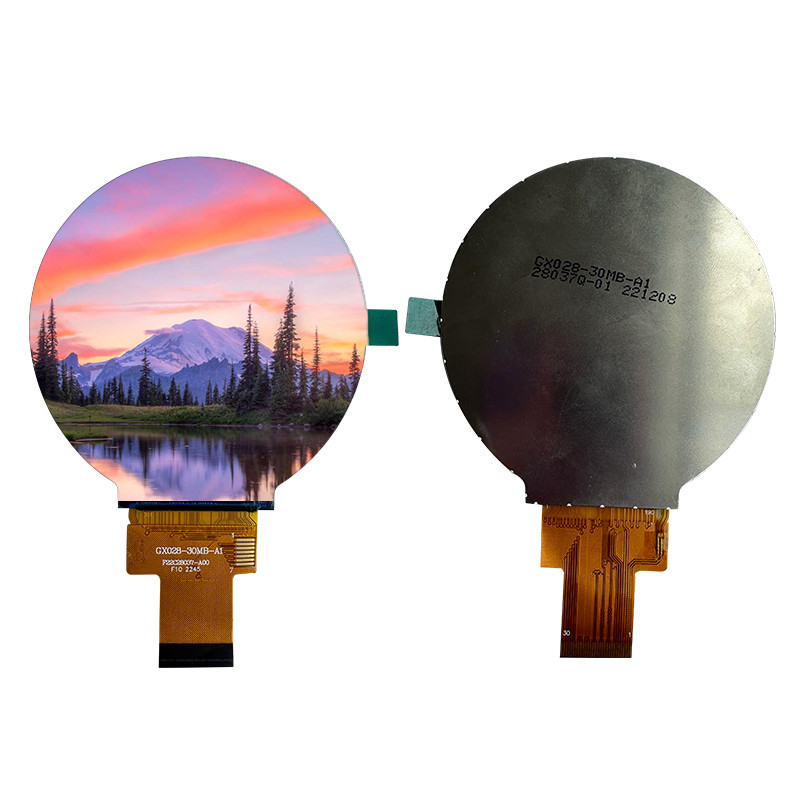

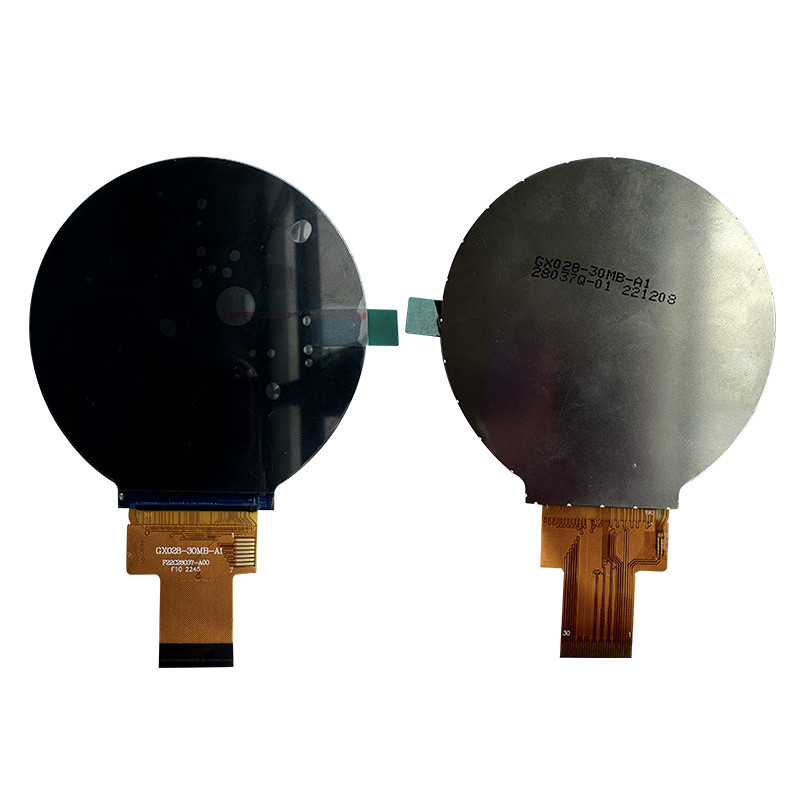

2.8Inch Round Circular IPS LCD Display MIPI Interface 30pins ST7701SN-G5-1 Driver LCD Screen Module
Product Specification
| size | 2.8inch |
| Resolution | 480(RGB)X 480 |
| Brightness | 300 cd/m² |
| Outline Dimension | 73.03 (H) X76.48(V) X2.30(T) mm |
| Touch Screen | No |
| Driving IC | ST7701SN-G5-1 |
| Contrast ratio | 1200:1 |
| Response time | 35ms |
About this item
This 2.8-inch transmissive TFT LCD display offers a 480x480 RGB resolution, providing clear and crisp visuals in a compact form factor. Despite its smaller size, it maintains an impressive contrast ratio of 1200:1, ensuring sharp text and vibrant colors. It supports up to 262,000 colors, making it suitable for various applications where color accuracy and clarity are important.
Interface Pin Definition
| NO. | Symbol | Level | Function |
| 1 | LEDA | LED power anode | |
| 2-3 | LEDK | LED power cathode | |
| 4 | VCC | Power setting | |
| 5 | IOVCC | Power Supply for I/O System. | |
| 6 | RESET | The external reset input | |
| 7 | TE | TE PIN | |
| 8 | PWM | The PWM frequency output for LCD driver control. | |
| 9 | GND | Ground | |
| 10 | DOP | MIPI Data pin Positive | |
| 11 | DON | MIPI Data pin Positive | |
| 12 | GND | Ground | |
| 13 | D1P | MIPI Data pin Positive | |
| 14 | D1N | MIPI Data pin Positive | |
| 15 | GND | Ground | |
| 16 | CLKP | Mipi clock signal | |
| 17 | CLKN | Mipi clock signal | |
| 18 | GND | Ground | |
| 19-20 | NC | NC | |
| 21 | GND | Ground | |
| 22-23 | NC | NC | |
| 24 | GND | Ground | |
| 25 | TP-INT | TP-INT | |
| 26 | TP-SDA | TP-SDA | |
| 27 | TP-SCL | TP-SCL | |
| 28 | TP-RST | TP-RST | |
| 29 | TP-VCC | TP-VCC | |
| 30 | TP-IOVCC | TP-IOVCC |
