RT35DV001A
Document:

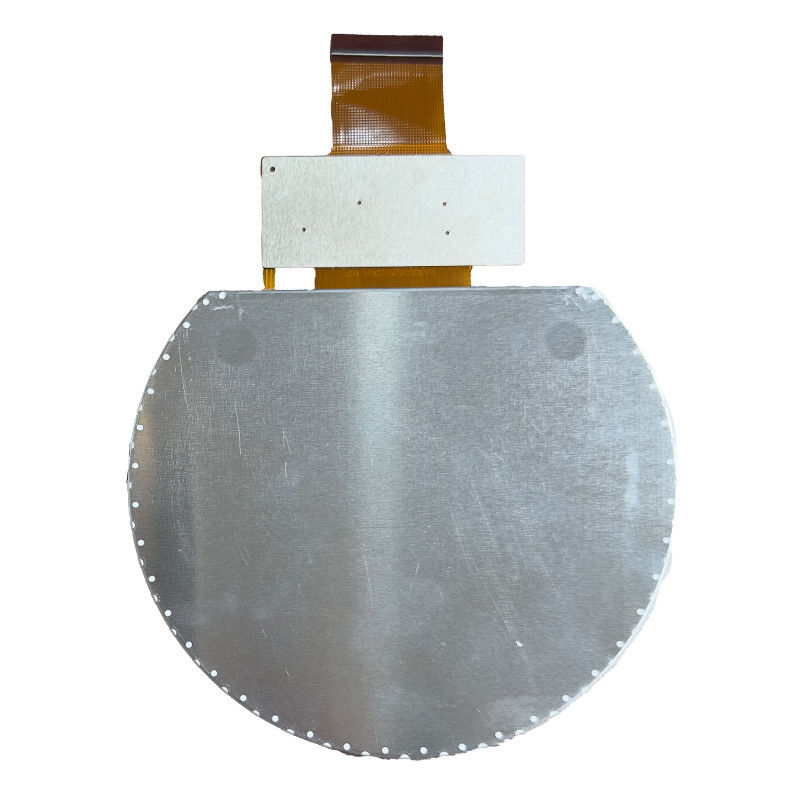

3.5Inch Round Semicircular LCD Display 800x640 HD TFT Screen
Product Specification
| Size | 3.5inch |
| Resolution | 800X640 |
| LCD Type | Transmissive TFT |
| Viewing Direction | ALL o’clock |
| LCM Outline Dimension | 97.60(H) X 83.79(V) X4.04(T) mm |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Driving IC | FL5893 |
About this item
The 3.5-inch circular TFT display module is a high-performance screen designed for applications where a unique, round display format is desired. With a resolution of 800x640 pixels, this display offers crisp and clear visuals with vibrant colors, making it perfect for devices that require a more dynamic, aesthetically appealing user interface.
This transmissive TFT screen features a wide viewing direction (ALL O’clock), ensuring clear, consistent image quality from multiple angles. The 1200:1 contrast ratio, even in varying lighting conditions. The high-resolution round format offers ample space for displaying detailed graphics, icons, and text, all while maintaining a compact size suitable for portable devices.
With a 90mm x 72mm active area and a thin profile (4.04mm in depth), this display is perfect for modern wearables, control panels, and other cutting-edge electronics. Its robust operating temperature range of -20°C to 70°C and storage temperature range of -30°C to 80°C ensures that it can function reliably in a variety of environmental conditions.
Driven by the FL5893 IC, the module supports fast response times (25ms) and efficient performance, making it ideal for interactive applications. Whether you're working on a custom wearable or an innovative IoT device, this 3.5-inch circular LCD display offers a compelling balance of performance, aesthetics, and durability.
Interface Pin Definition
| NO. | Symbol | Level | Function |
| 1 | LEDA | Power for LED backlight (Cathode) | |
| 2 | LEDK | Power for LED backlight (anode) | |
| 3 | LEDK | Power for LED backlight (anode) | |
| 4 | GND | Power ground | |
| 5 | VCC | Power for digital circuit | |
| 6 | RST | Reset Signal input pin. | |
| 7 | DISP | DISP pull low is Standby mode;Normally pull high | |
| 8 | VDD_OTP | Power Supply For LCD. | |
| 9 | SDA | Serial data input/output pin. | |
| 10 | SCL | Serial clock signal pin. | |
| 11 | CS | Chip selection signal pin. | |
| 12 | DCLK | Dot clock signal for RGB interface operation. | |
| 13 | DE | Data enable signal for RGB interface operation. | |
| 14 | VS | Framesynchronous signal for RGB interface operation. |
|
| 15 | HS | Line synchronous signal for RGB interface operation. | |
| 16-21 | R5-R0 | Red data | |
| 22-27 | G5-G0 | Green data | |
| 28-33 | B5-B0 | Blue data | |
| 34 | GND | Power ground | |
| 35 | TP-INT | Touch panel interrupt output | |
| 36 | TP-SDA | Touch panel I2C data | |
| 37 | TP-SCL | Touch panel I2C clock | |
| 38 | TP-RST | Touch panel reset | |
| 39 | TP-VCC | Touch panel Power supply 2.8~3.3V | |
| 40 | GND | Power ground |
