Place of Origin:
Shenzhern,China
Brand Name:
RGH
Certification:
ISO9001/ISO14001
Model Number:
RTP13QV041A
Document:

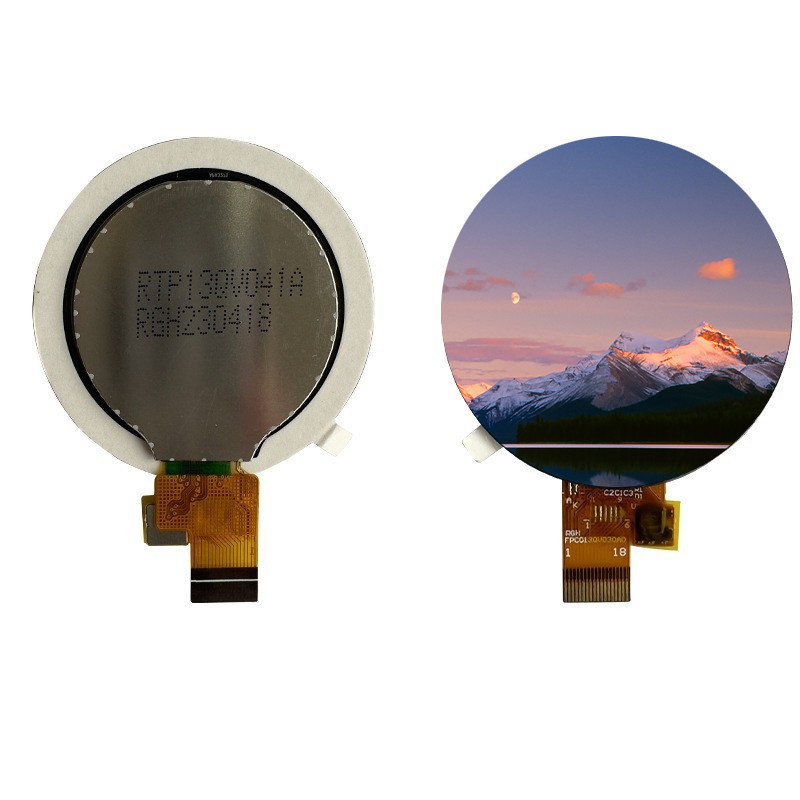

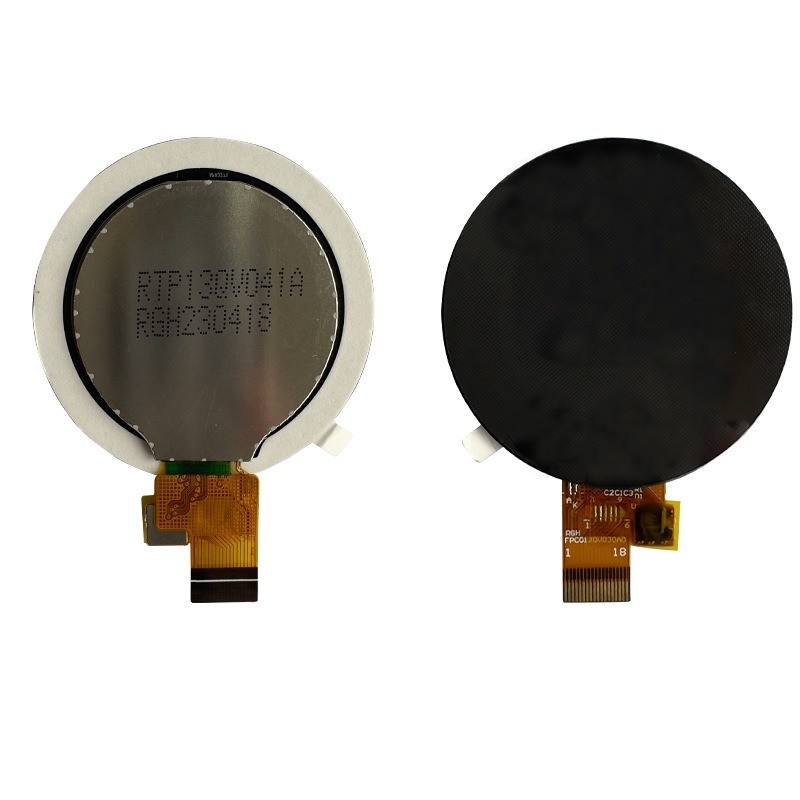

1.3" Inch Touch Circular LCD Panel Display Oled Screen 240x240 TFT Module OEM
Product Specification
| size | 1.3 inch |
| Viewing Direction | IPS |
| Display Interface | Transmissive TFT |
| Interface | SPI |
| Display Colors | 262K |
| Active area | 32.4(W) X32.4 (H) mm |
| Driving IC | GC9A01 |
| CTP IC | CHSC6413 |
About this item
This 1.3-inch TFT LCD display module offers a 240x240 resolution with RGB pixel arrangement and supports a wide viewing angle (ALL O'clock), making it ideal for use in devices where visual clarity is critical. Equipped with a touchscreen (using a CHSC6413 CTP IC), it allows for intuitive interaction with the display. It supports 262K display colors, ensuring vibrant and accurate color reproduction.
The module operates with an SPI interface and is driven by the GC9A01 driving IC, which ensures efficient performance. With an operating temperature range of -20°C to 70°C, and a storage temperature range of -30°C to 80°C, this display is designed to work in a broad range of environmental conditions.
The display features a brightness of 380 cd/m², making it suitable for various lighting environments, though not as bright as the previous module (420 cd/m²), it's still highly visible in most settings. The module operates within a voltage range of 2.5V to 3.3V, which is typical for low-power devices.
This screen is well-suited for portable devices, wearables, and other applications where space is limited but touch functionality and color display quality are essential.
Interface Pin DefinitionInterface Pin Definition
| NO. | Symbol | Level | Function |
| 1 | LEDA | LED,anode. | |
| 2 | LEDK | LED,cathode. | |
| 3 | GND | Ground | |
| 4 | TP-VCC | Power setting | |
| 5 | TP-RESET | TP RESET PIN | |
| 6 | TP-INT | TP INT | |
| 7 | TP-SDA | TP SDA | |
| 8 | TP-SCL | TP SCL | |
| 9 | GND | Ground | |
| 10 | TE | TE | |
| 11 | SDA | SPl interface input/output pin | |
| 12 | WR/A0 | command selection pin in 4-line serial interface | |
| 13 | SCL | This pin is used to be serial interface clock | |
| 14 | CS | -Chip selection pin | |
| 15 | RESET | Reset signal. | |
| 16 | IOvCC | 1.8V | Power supply for digital interface |
| 17 | VDD | 2.8V(typ) | Power supply |
| 18 | GND | Ground |
External Dimensions
|
|
